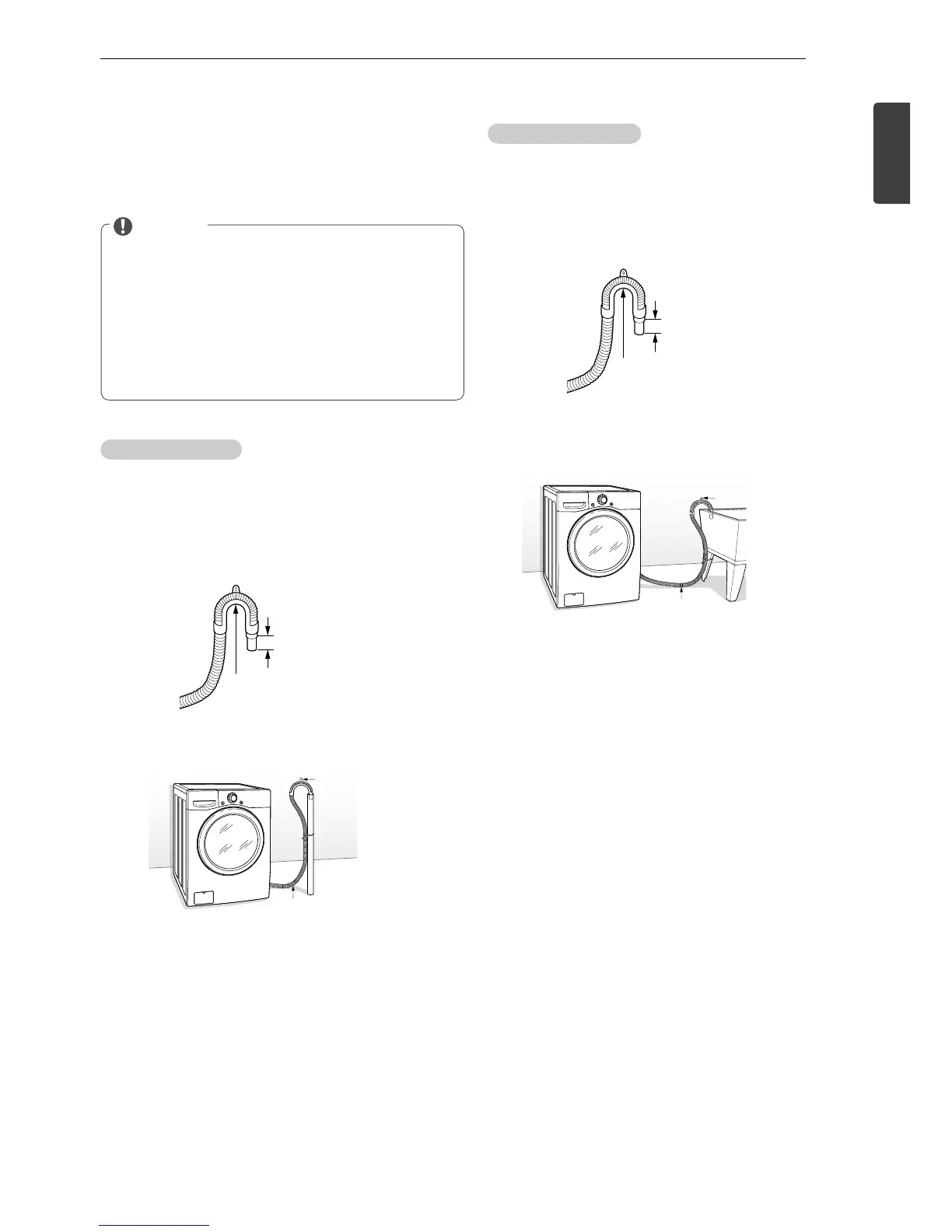

INSTALLATION INSTRUCTIONS
Connecting the drain line
Secure the drain hose in place to prevent moving and
leaking.
NOTE
!
The drain hose should be properly secured. Failure
to properly secure the drain hose can result in
flooding and malfunction.
!
Total height of the house end should not exceed 96
inches (244.8 cm) from the bottom of the washer.
!
The drain must be installed in accordance with any
applicable local codes and regulations.
!
M ake sure that the water lines are not stretched,
pinched, crushed, or kinked.
Using a standpipe
1
Clip the end of the hose into the elbow bracket.
- Connect the elbow bracket within 4 inches (10 cm)
from the end of the drain hose. If the drain hose is
extended more than 4 inches (10 cm) beyond the
end of the elbow bracket, mold or microorganisms
could spread to the inside of the washer.
No m ore than
4 inches (10 cm )
Elbow bracket
2
Insert the end of the drain hose into the standpipe.
Drain Hose
Elbow Bracket
3
Use a tie strap to secure the drain hose in place.
Using a laundry tub
1
Clip the end of the hose into the elbow bracket.
- Connect the elbow bracket within 4 inches (10 cm)
from the end of the drain hose. If the drain hose is
extended more than 4 inches (10 cm) beyond the
end of the elbow bracket, mold, or microorganisms
could spread to the inside of the washer.
No m ore than
4 inches (10 cm )
Elbow bracket
2
H ang the end of the drain hose over the side of the
laundry tub.
Elbow Bracket
Drain Hose
3
Use a tie strap to secure the drain hose in place.
