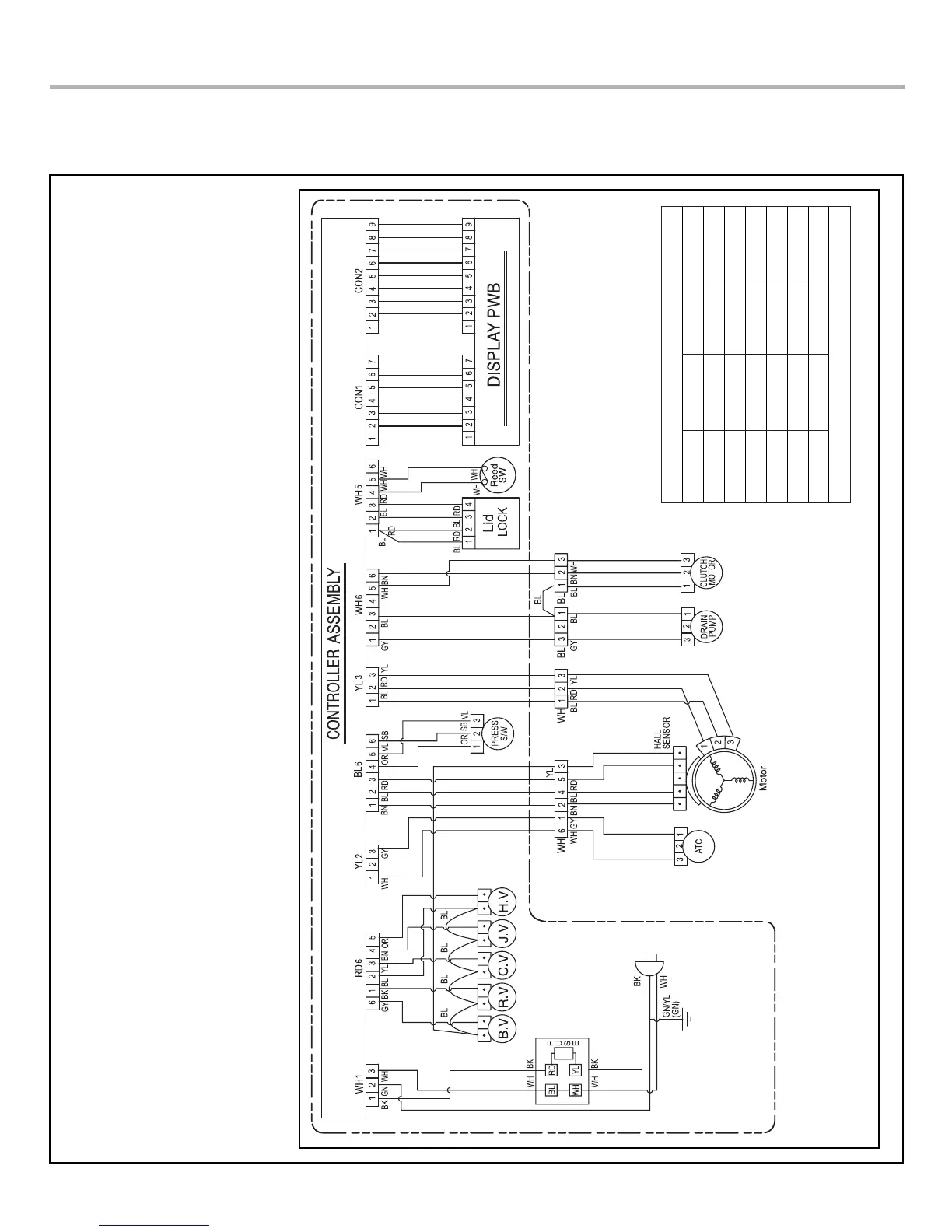

WIRING DIAGRAM
COLOR CODE
LETTERS COLOR LETTERS COLOR
WH WHITE RD RED
BK BLACK GY GYAY
BN BROWN GN GREEN
OR ORANGE VL VIOLET
PK PINK YL YELLOW
BL BLUE SKY SKY BLUE
WT5001CW dosen’t have 󳟆 part.
4. SERVICE INFORMATION
4-1. WIRING DIAGRAM
18
