LG WT4801CW Service Manual

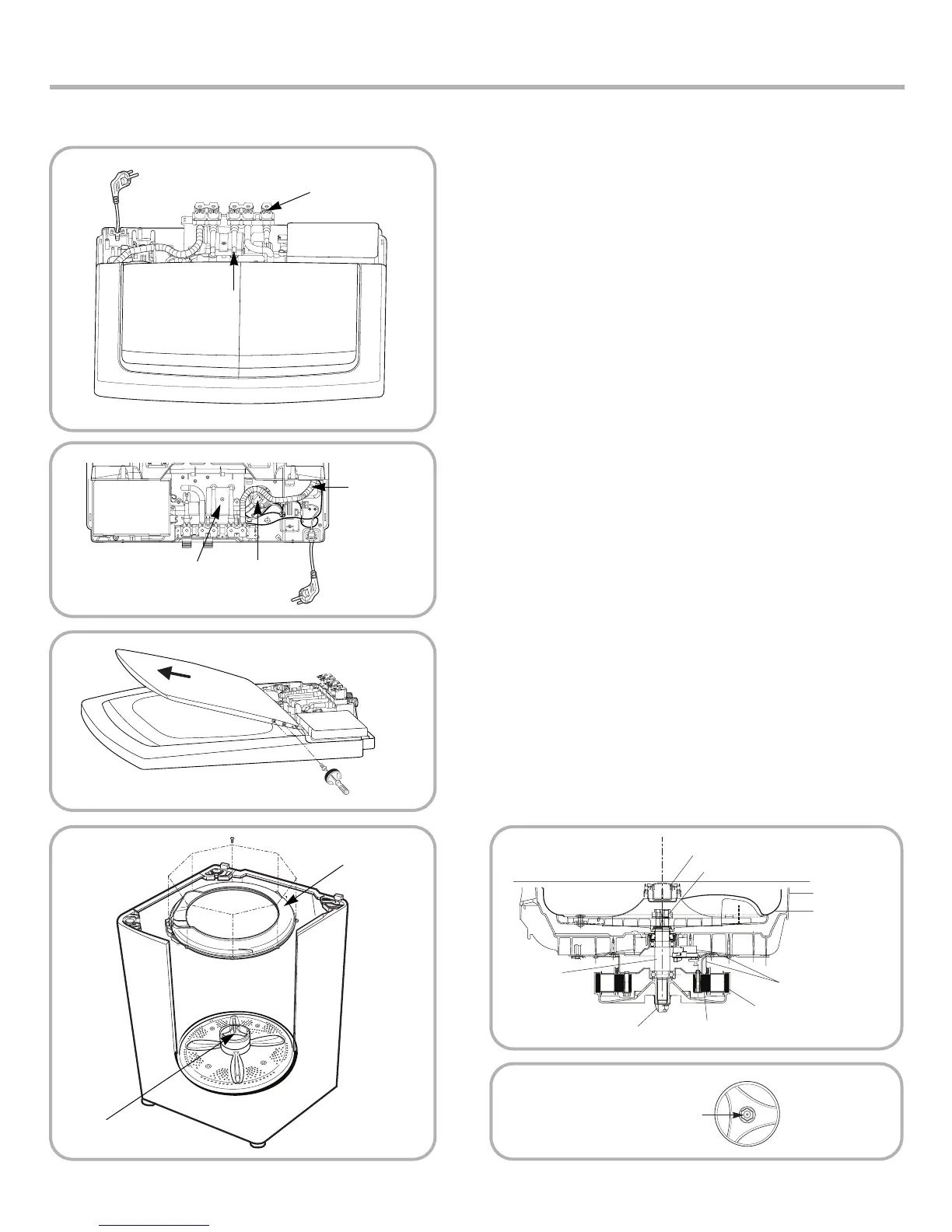

2) Disassembly of Power Cord, Inlet
Valve ASSEMBLY, D.T Housing
ASSEMBLY and Pressure Switch.
① Disassemble back panel.
② Disconnect three connectors and disassemble the
power cord.
③ Remove two pipe fixing screws and three inlet valve
screws.
④ Disconnect the leads from the inlet valve.
⑤ Separate the pipe and the connector hose from the
inlet valve.
⑥ Remove the inlet valve.
⑦ Disconnect the leads and pressure tube from the
BP sensor.
3)
Disassembly of Lid Assembly, Top
Cover, Tub Cover, Pulsator, and Inner
Tub
① Remove three lid fixing screws.
② Disassemble the lid assembly in arrow direction.
③ Remove two top cover attaching screws in the rear
then disassemble the top cover.
④ Remove the tub cover attaching screws then
disassemble tub cover.
⑤ Remove the pulsator attaching screws then
disassemble the pulsator.
⑥ Remove the hub fixing nut by a special tool.
⑦ Disassemble the inner tub.
Inlet Valve
ASM
Pipe
Connector
Hose
Pressure
Pipe
Hub Fixing Nut
Inner Tub Cap
Out Tub
Inner Tub
Rotor
Stator
Rotor Nut
Shaft
Bearing Housing ASM
Hub fixing nut
20
Tub Cover
Inner Tub Cap

LG WT4801CW Specifications

General

Electrical	120VAC@60Hz
Rating of Fuse	125V, 12A for 100~127V/60Hz
Auto Power Off	Yes
Inner Tub	Stainless
Softener Dispenser	Yes
Detergent Dispenser	Yes
Bleach Inlet	Yes
Inlet Water Pressure	14.5 ~ 116 PSI (100 ~ 800 kPa)
Time Delay	1-24 Hr
Spin Speed	Max. spin speed 1, 000
Cycles	Cotton/Normal, Heavy Duty, Bulky/Bedding, Tub Clean, Perm Press Casual, Delicates, Speed Wash, Rinse+Spin
Smart Rinse™with Jet Spray	Yes
Lid Interlock Switch	Magnet Sensor
Child Lock	Yes

Weight and Dimensions

Weight	145.5 lbs (58kg)
