LG WT4801CW Service Manual

35

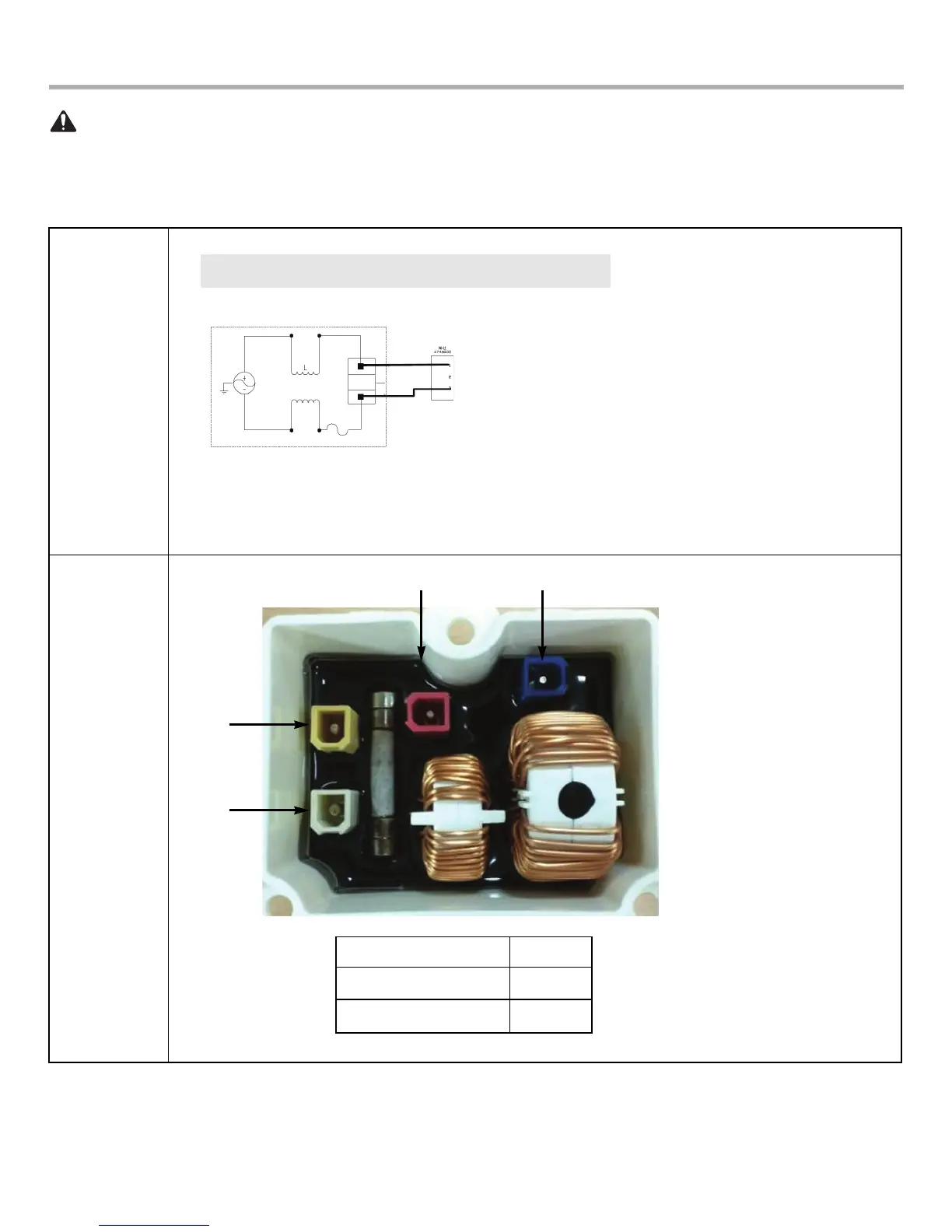

5. COMPONENT TESTING INFORMATION
5-1. FILTER ASSEMBLY (LINE FILTER)
When resistance (Ohm) checking the component, be sure to turn the power off, and do
voltage discharge sufficiently.
Wiring
diagram
Test
points
and
Result
Circuit in the MAIN PCB / Wiring Diagram
Test Points
WH (1) to RD (1)
WH (3) to RD (2)
Result
0 Ω
0 Ω
(2)
(2)
(1)
(1)
YL1
RD1 BL1
WH1
