29

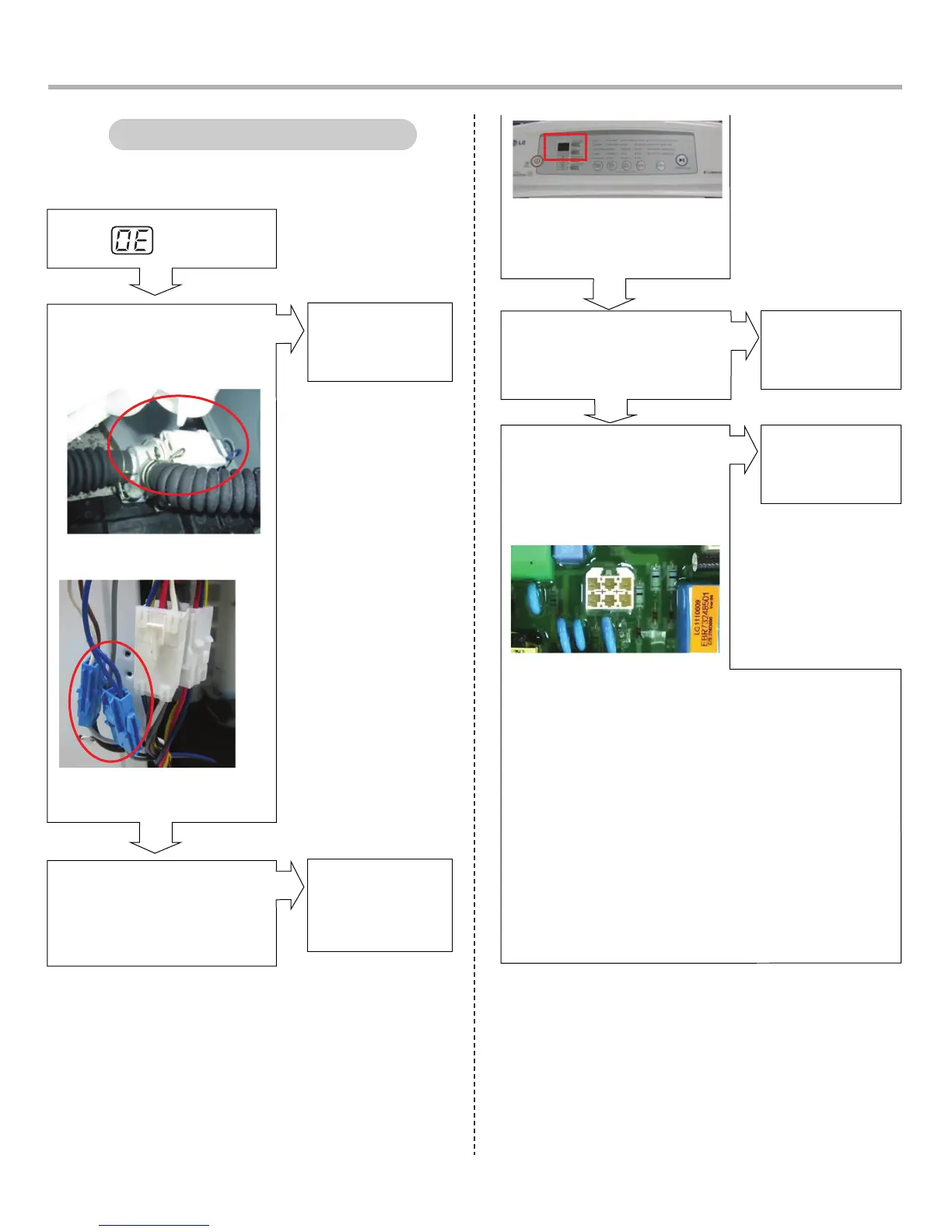

DRAIN ERROR
Yes
Is displayed?
Reconnect or
repair the
connector
No
Is the connector connected to
pump motor assembly
disconnected or
disassembled?
When you press both SPIN
SPEED button and DELAY
WASH button simultaneously,
is the water level frequency
below 26.0 kHz?
Drain pump
Connection connector
Yes
No
Is the coil of the drain pump
too high or low? (resistance of
the coil is 10-20 Ω)
Yes
Check the AIR
CHAMBER
,the tube (clogged),
and press
switch
Yes
Is the voltage between
connectors out of range?
(WH6)
- After remove Terminal
Position Assurance
of connector, check as follows.
- Pump running:120V±5%
- Stopped Motor/Pump: 0~1V Method
1. Press the Power button, while the WASH/TEMP
button and SOIL LEVEL buttonis pressed
simultaneously.
2. Press Start/Pause button
: 1 time LED On
: 2 times Button Check
: 3 times Inlet valve check mode
: 4 times Cold Valve, Bleach Valve
: 5 times Rinse Valve, Hot Valve
: 6 times Jet Spray Valve
: 7 times Heater Check
: 8 times Alpha Check
: 9 times Pump Check
[Note] Environmental check list
1) The drainage hose must not stay in a lower position
2) The drainage hose must not be bent or
clogged in any way due to the surrounding
physical configuration
3) The drainage hose must not get frozen at all times.
4) The drainage pump must not have any improper
substance or material inside that may cause
a machine breakdown.
Yes
No
Replace the
DRAIN
PUMP
ASSEMBLY.
Replace the
MAIN PCB
ASSEMBLY.
To Next Page
