3. Product Overview DVI-OPT-220-Pro series – User's Manual 10

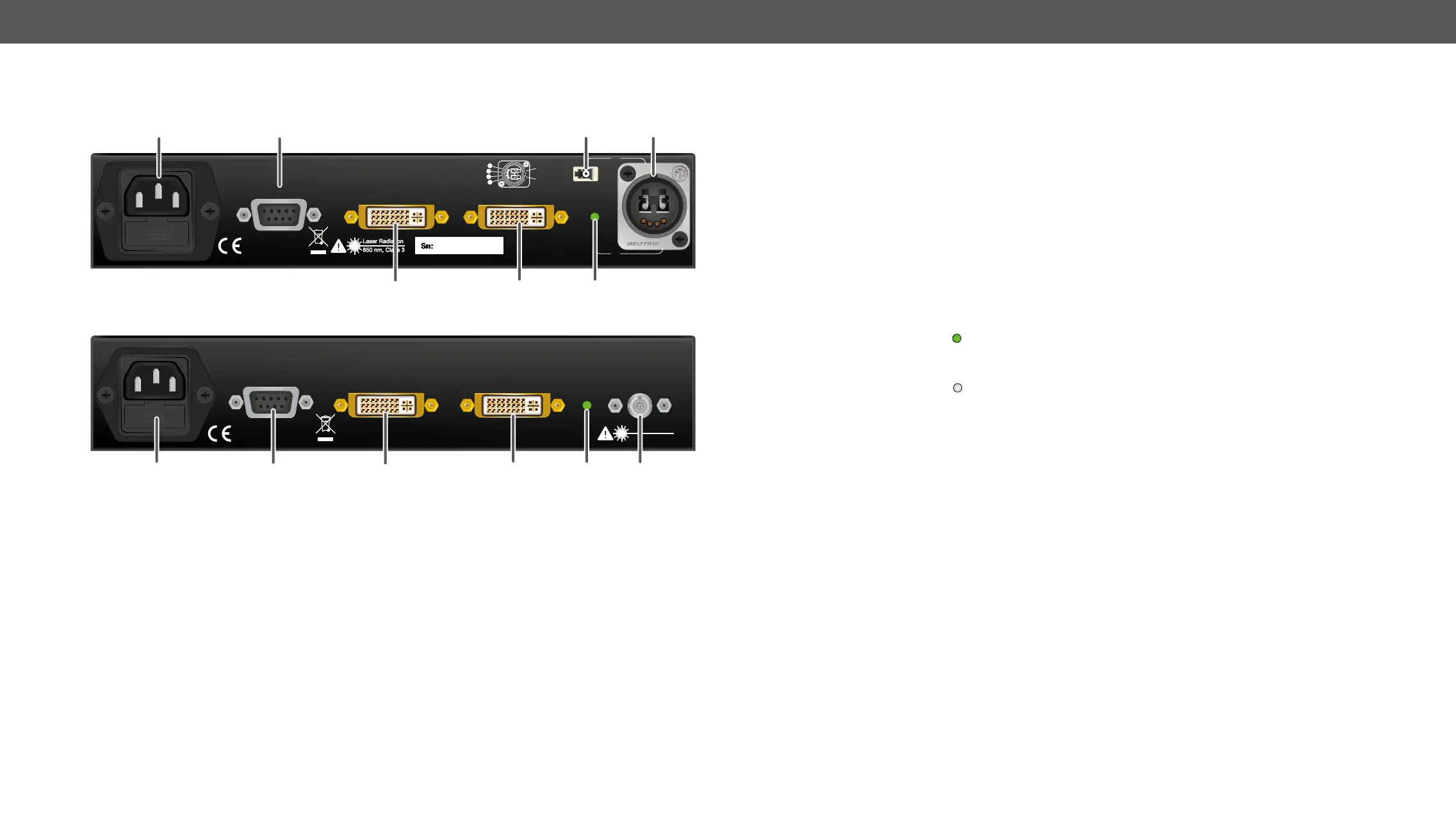

Rear View
DVI-OPT-TX220-Pro
DVI-OPT-TX220-ST-Pro
A
B
DVI INPUT LOCAL MONITOR OUTPUT
100-240 V AC
FUSE: F 1 A
50/60 Hz 0.7 A
Remote power for receiver DC OUT +15V
GND
Remote power for receiver DC OUT +15V
GND
LASER
ACTIVE
FIBER OUTPUT (A):
50/125 MULTIMODE
RoHS
Made in EU, HU
B
A
LOCAL CONTROL
RS-232
Laser Radiation
850 nm, Class 3
1
2
6 7
3
4 5
1
AC connector Standard IEC power connector. Accepts 100 to 240 Volts, 50 or 60 Hz power sources.
2
Serial port 9-pole D-SUB female connector for serial RS 232 communication; see RS-232
Control Port for more details.
3
DVI input 29-pole DVI-I connector, however only digital pins are internally connected. Connect
single link DVI source. The unit has minimal cable compensation ability, hence the
maximum recommended cable length – in compliance with the DVI standard – is
5 m. See DVI Inputs and Outputs section for more information.
4
Monitor output 29-pole DVI-I connector, however only digital pins are internally connected. A local
display device can be connected to check the outgoing signal. The resolution and
pixel clock frequency are the same on the DVI and Neutrik connectors, no internal
scaling or conversion is applied to the signal. See DVI Inputs and Outputs section
for more information.
5
Laser Active LED
on
It gives feedback about the operation of the optical module (laser is
enabled), that means the laser radiates invisible waves. Avoid direct eye
contact with the optical connectors!
off
Laser module is not active (laser is disabled on the output port).
6
Break-out
connector
The break-out LC connector is internally connected to output B of the Neutrik
Typical Stand-Alone Application with Break-Out Connection
and Application Example of Break-out Connector section for more details.
7
Neutrik
connector
transmitters. See Fiber Optical Connectors section for more details.
8
ST connector
See Fiber Optical Connectors section for more information.
LOCAL CONTROL
RS-232
DVI INPUT LOCAL MONITOR OUTPUT
100-240 V AC
FUSE: F 1 A
50/60 Hz 0.7 A
LASER
ACTIVE
FIBER OUTPUT :
50/125 MULTIMODE
RoHS
Made in EU, Hungary
Laser Radiation
850 nm, Class 3
3
4
5
8
2
1
