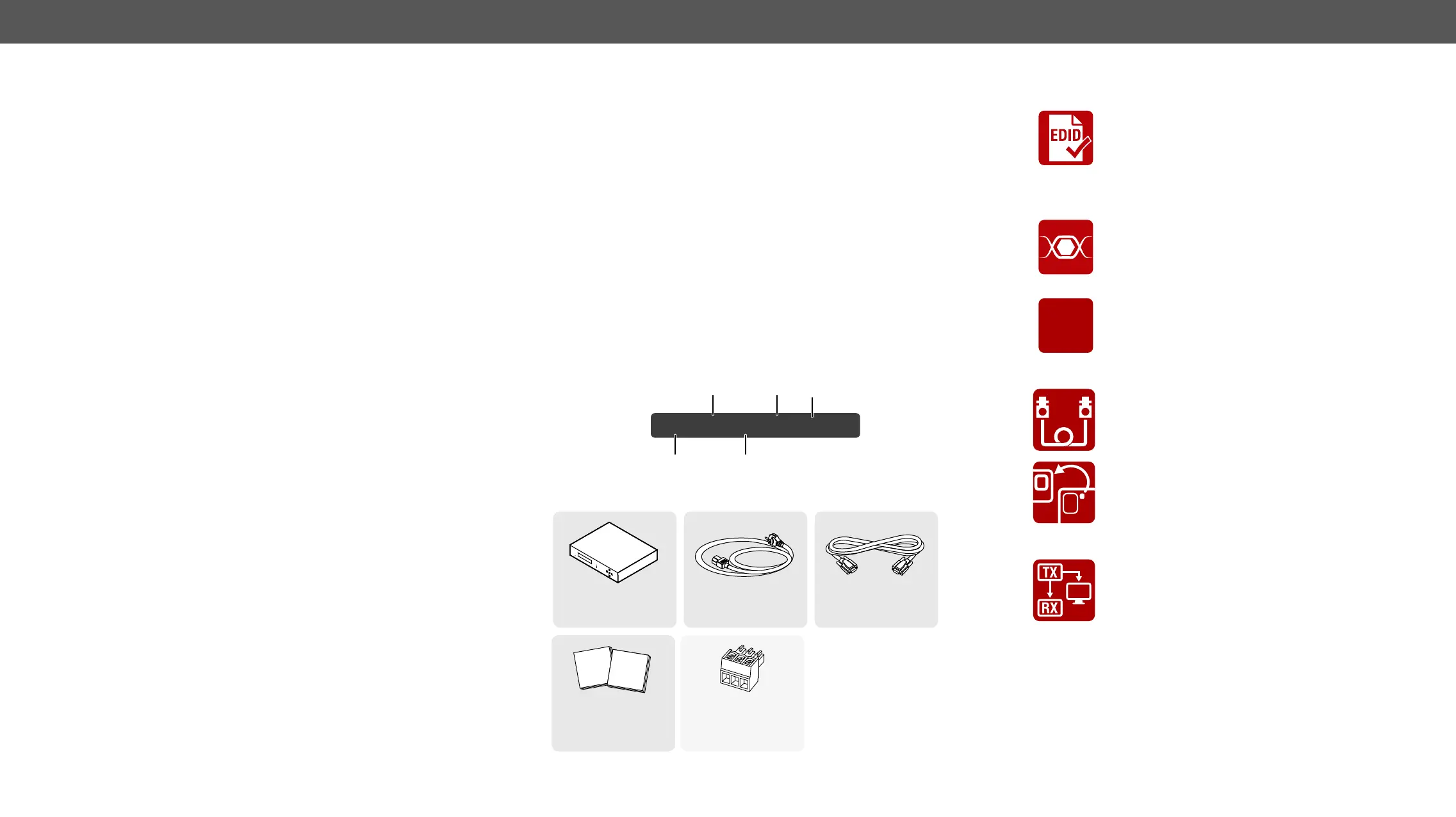

1. Introduction DVI-OPT-220-Pro series – User's Manual 5
1
Introduction
chapter we would like to introduce the device highlighting the most important
features in the below listed sections:
Ý
Ý
Ý
Ý
Advanced EDID Management
The user can emulate any EDID on the inputs
independently, read out and store any attached
monitor's EDID in 100 internal memory locations,
Controller software.
Pixel Accurate Reclocking
Each output has a clean, jitter free signal, eliminating
signal instability and distortion caused by long cables
1080p
HDTV
Supports all HDTV resolutions
720p, 1080i, 1080p etc. without HDCP encoding.
Unencrypted signals up to 165 MHz pixel clock
frequency - regardless of the resolution - are passed
through.
All of the high-speed TMDS data lanes are transmitted
Break-out LC connector
transmit the signal of two transmitters in one Neutrik
OpticalCON Duo cable. For more details see the
Application Example of Break-out Connector section.
Local Monitor Output
User can attach a local monitor to observe the video
resolution and clock frequency are the same on DVI
conversion is applied.
Description
Lightware DVI-OPT-TX220-Pro is a Single Link DVI optical transmitter
and DVI-OPT-RX220-Pro is a Single Link DVI optical receiver. They use
DVI-OPT-TX220-Pro and DVI-OPT-RX220-Pro are assembled with
optical connector.
between 25 - 165MHz pixel clock frequency: from 640x480@60Hz to
1920x1200@60Hz or 2048x1080@60Hz resolutions.
The extenders have an RS-232 serial port for remote control
panel for local control operation as well.
Model Denomination
Box Contents
*Only for the receiver devices.
DVI-OPT-TX-220-ST-Pro
number
AV extension over fiber
DVI video interface
Transmitter unit
ST fiber connector
Extender unit IEC power cable
RS232 9-pole D-SUB
male to female
straight serial cable
Phoenix
®
3-pole
connector
Safety and
Warranty
Info
Quick
Start
Guide
