3. Product Overview DVI-OPT-220-Pro series – User's Manual 9
3
Product Overview
output ports, and connectors:
Ý
Ý
Ý
Ý

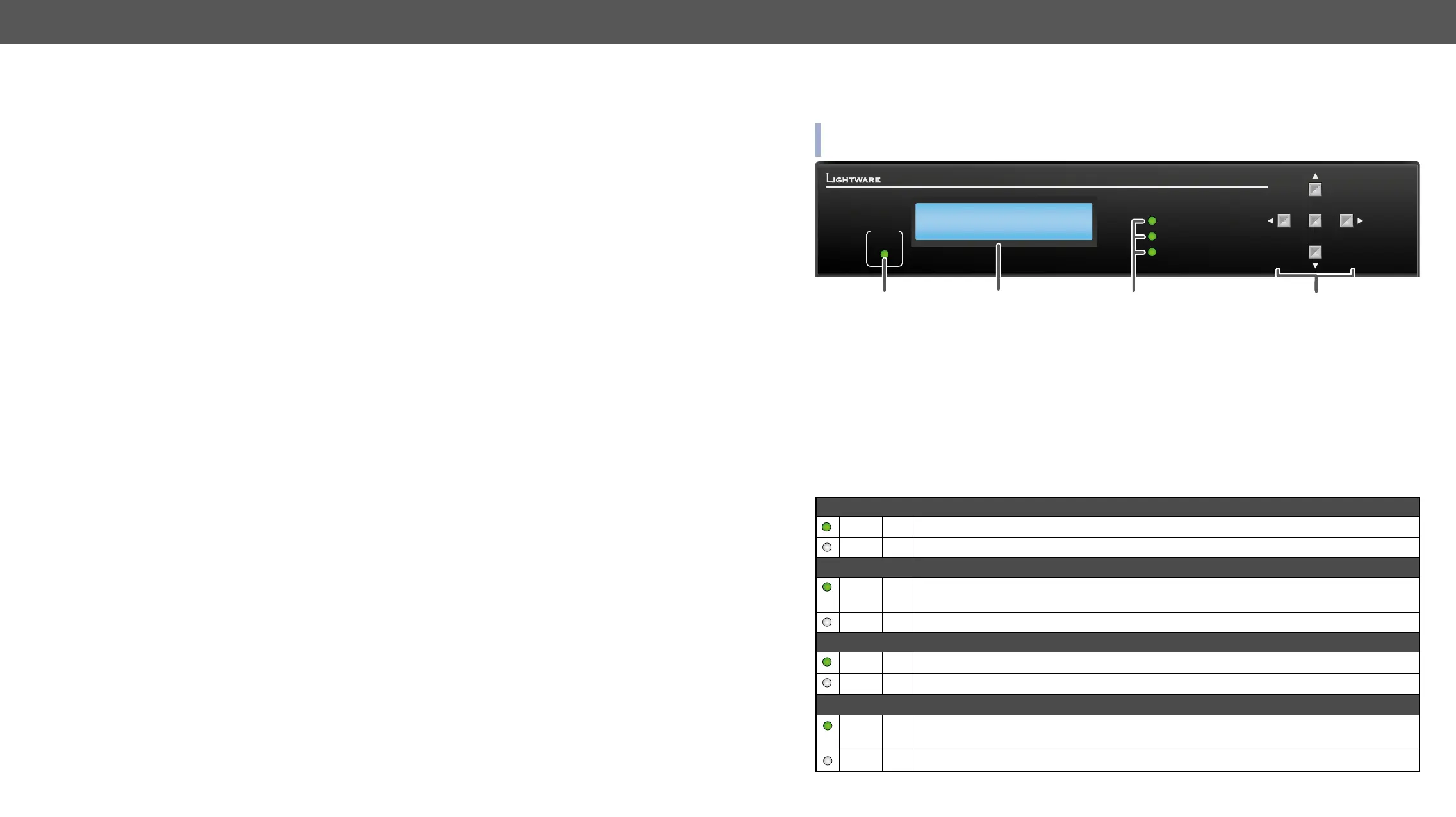

Transmitters
INFO: The front view of DVI-OPT-TX220-Pro and DVI-OPT-TX220-ST-Pro is almost the same; the only
difference is the type designation.
1
Power LED Power LED lights green when the unit is powered on.
2
Menu display Displays status information and menu operation. See Front Panel LCD Menu Operations
section for more information.
3
Status LEDs For more details, see the legend for the Status LEDs below.
4
Menu
navigation
Up, down, left, right and enter buttons for menu navigation. See Front Panel LCD Menu
Operations section for more information.
Status LEDs
POWER
green
on The transmitter unit is powered and ready to use.
off The transmitter unit is NOT powered on.
LASER ACTIVE
green
on It gives feedback about the operation of the optical module (laser is enabled), that means
the laser radiates invisible waves. Avoid direct eye contact with the optical connectors!
off Laser module is not active (laser is disabled on the output port).
DVI INPUT SIGNAL PRESENT
green
on Indicates when a valid DVI signal is detected on the DVI INPUT connector.
off There is no valid DVI signal on the DVI INPUT connector.
green
on Indicates if a DVI source is connected to the unit, it is powered on and sends +5V signal to pin
14 of the input DVI connector.
off The source does not send +5V signal to the pin 14 of the input DVI connector.
POWER
SOURCE CONNECTED (pin14 +5V)
LASER ACTIVE
DVI INPUT SIGNAL PRESENT ENTER
DVI Multimode Fiber Transmitter
DVI-OPT-TX220-ST-Pro
DVI-OPT-TX220-PR
SN:06342203
