UCX series – User's Manual 50

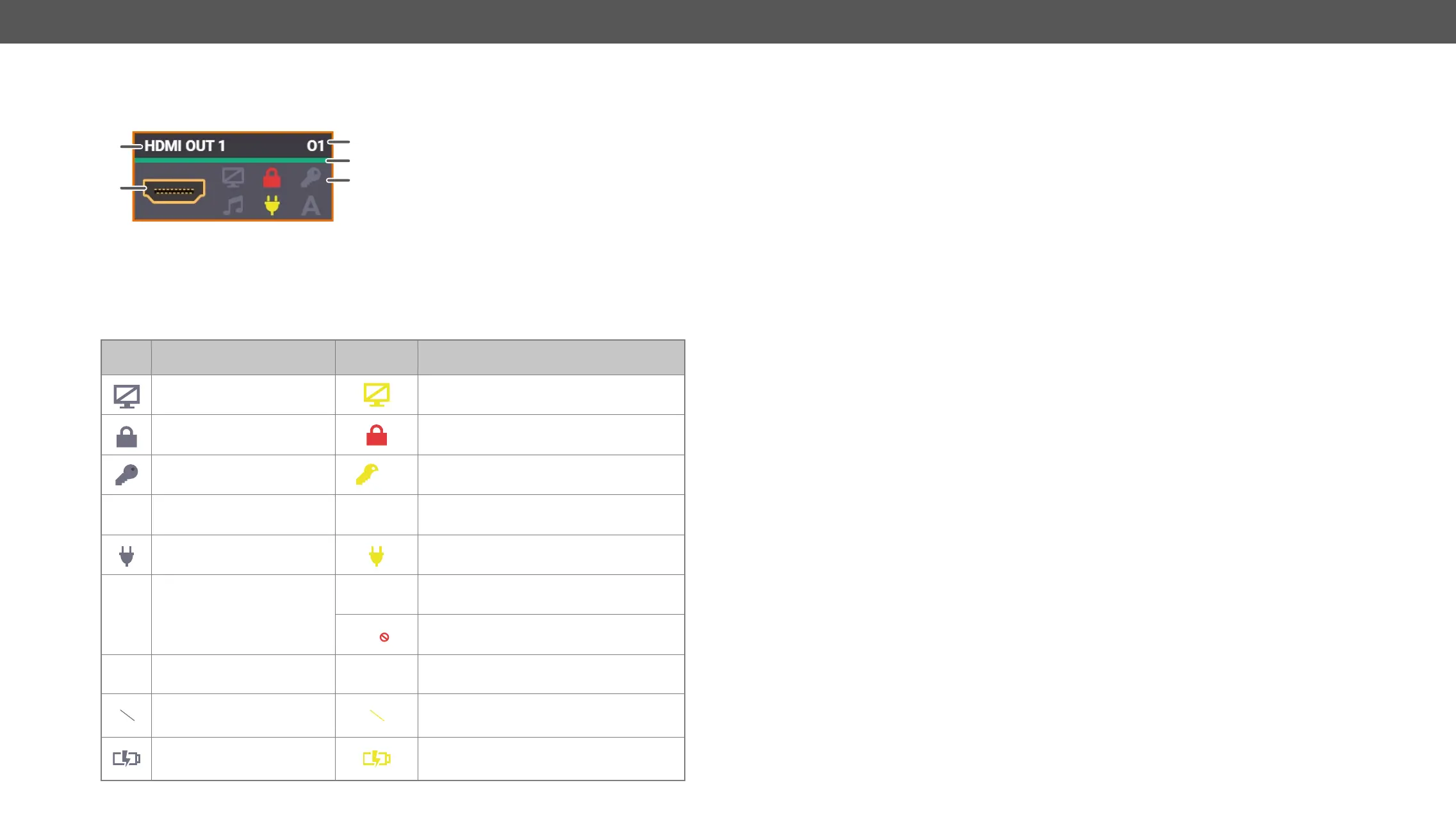

Port Tiles
The colors of the port tiles and the displayed icons represent different states and information:
1
Port name
2
Port icon
3
Port number
4
Signal present
indicator
green: present
grey: not present
5
State indicators
State Indicators #lock #unlock #mute #unmute
Icon
is grey
Description
Icon is
highlighted
Description
Port is unmuted Port is muted
Port is unlocked Port is locked
Signal is not encrypted with
HDCP
2.2
Signal is encrypted with HDCP
(the HDCP version is displayed)
Embedded audio is not
present
Embedded audio is present
There is no connected device The device is connected
No USB Host connected or DP
Alt mode is not supported by
USB Host
DP Alternate mode successfully entered
Unable to enter DP Alternate mode
Autoselect is disabled
Autoselect is enabled
Audio is unmuted
Audio is muted
Charging function is inactive Charges the connected device
2
5
1
3
4
