HDMI Video Output

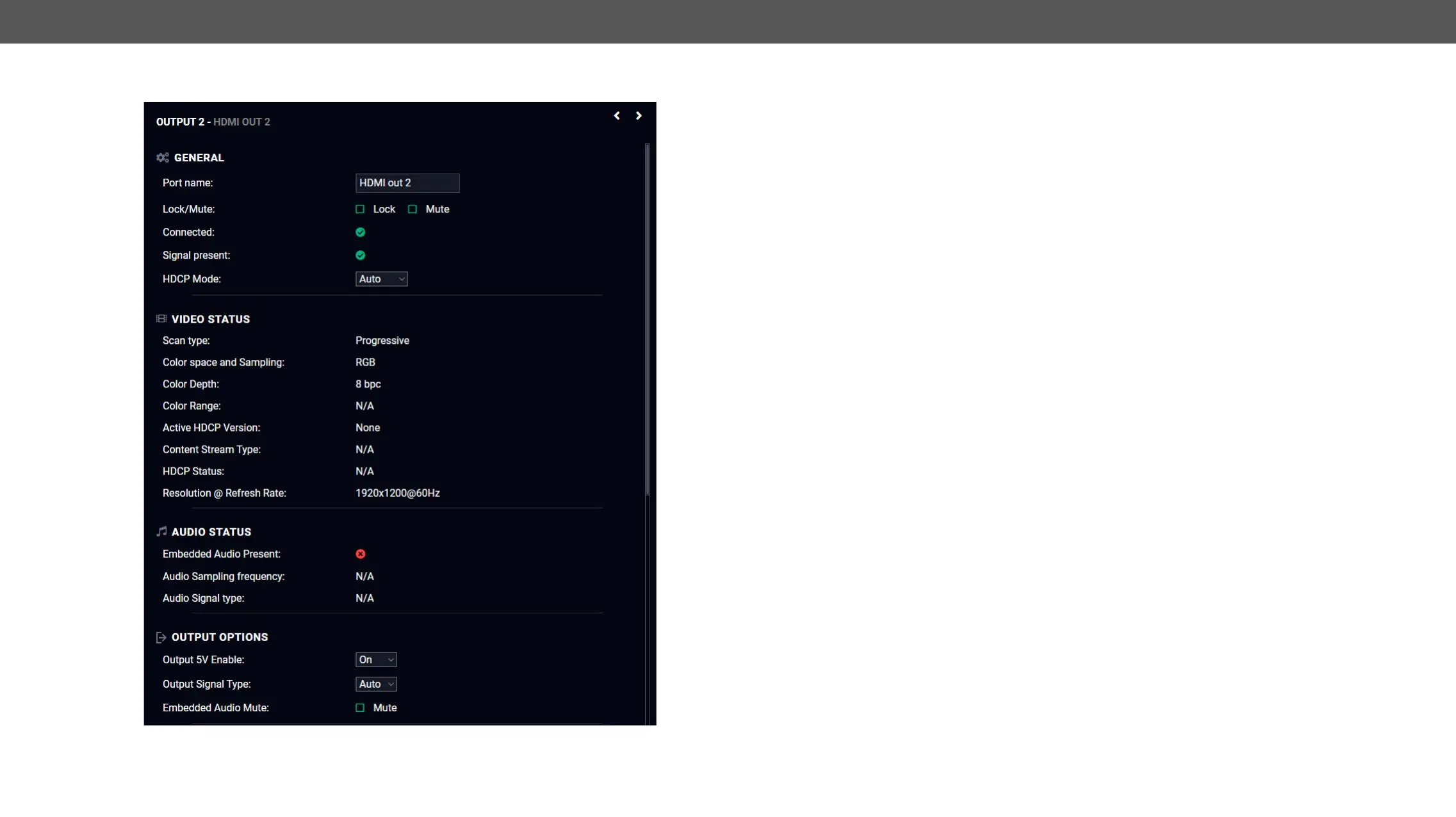

Port properties window of the HDMI video output
Available settings and tools
General
Port name
The name of a port can be changed by typing the new name and clicking on the Set button. The following
dot (.). Max length: 63 characters.
Lock #lock #unlock
The port can be locked to the currently connected output ports by putting the tick. If the port is locked, the
crosspoint state of this port cannot be changed.
Mute #mute #unmute
from the input port.
HDCP Mode #hdcp
▪ HDCP mode
content allows when Auto mode is selected; #signaltype #hdcp
Output Options
Output 5V Enable
▪
the transmitted signal.
Output Signal Type
▪
Embedded Audio Mute
Put a tick to turn off the embedded audio.
Frame detector
For more details see Frame Detector section.
