Rev: 10.22.19 Page 5
CCD-0001541

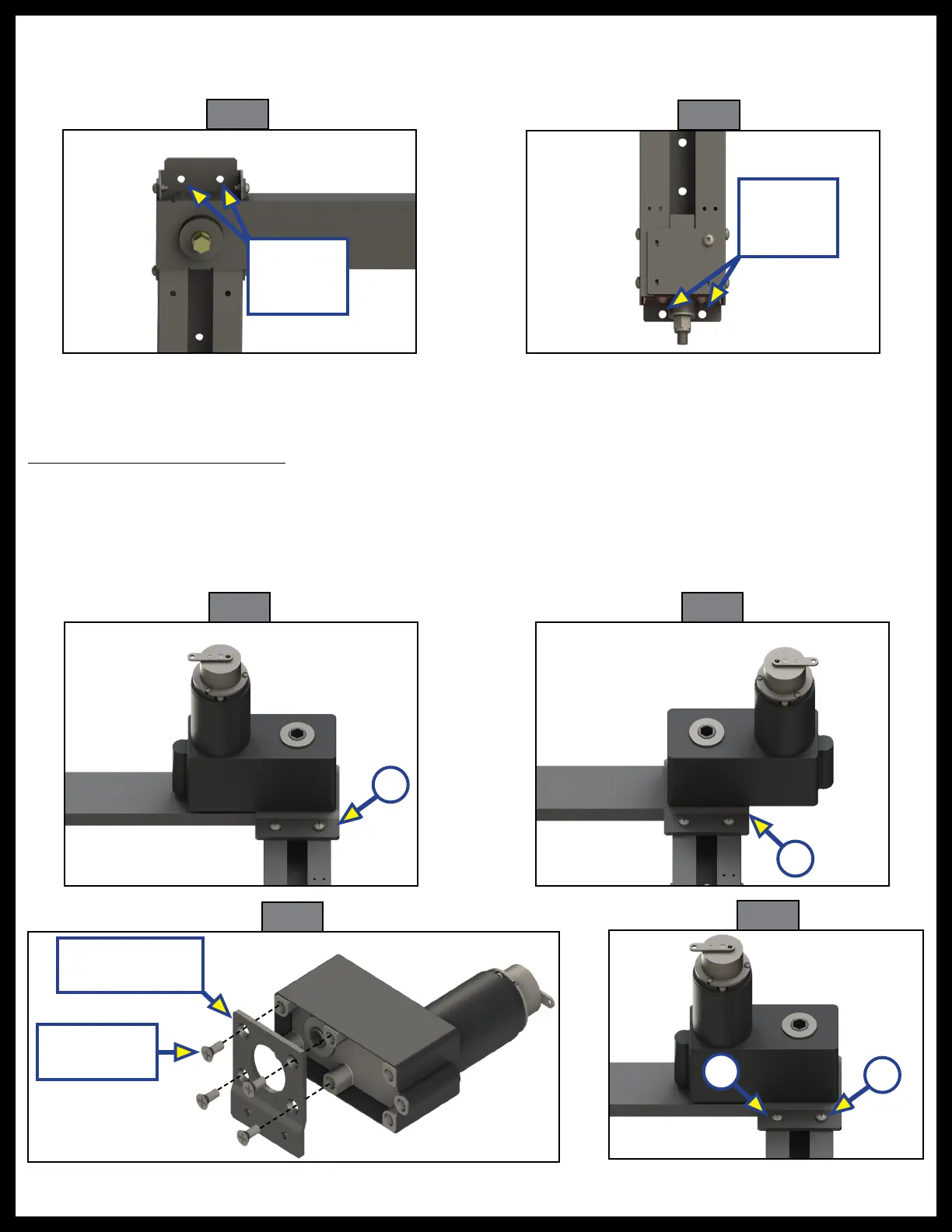

2. The 1/4" wood or self-tapping sheet metal screws (OEM-supplied) must be used in all large holes of the
vertical c-channel rails, including the large double mounting holes at the top (Fig. 2) and bottom
(Fig. 3) of the rails, to prevent rail-twist.
Fig. 2
Fig. 3
3. After the rails are installed:
A. Check the rails for squareness and parallelism.
B. Remove wooden packing strips.
Motor and Connecting Shaft
1. Motor may be installed inward (Fig. 4) or outward (Fig. 5) on the rear curbside rail. Motor orientation
is determined by the way the motor is attached to the mounting plate (Fig. 6). Attach the motor
mounting plate for the desired orientation using the four large countersunk screws provided.
2. After mounting plate is bolted to the motor, attach the assembly to the bed lift system by sliding the hex
connecting shaft into the motor. Install the two screws (Fig 7A) to hold the motor plate tight to the lift rail.
Fig. 4
Fig. 5
A
A
Motor
Mounting Plate
Countersink
Screws
Fig. 6
Fig. 7
A
A
Upper
Mounting
Holes
Lower
Mounting
Holes
To Next Page
