HYDRAULIC SYSTEM 5540F/YB5515 SERVICE MANUAL
4-36 Published 10-21-2010, Control# 198-04
Left Rear
M & N
Left Front
Right Front
Right Rear
Q & R
FIGURE 4-37
a0406

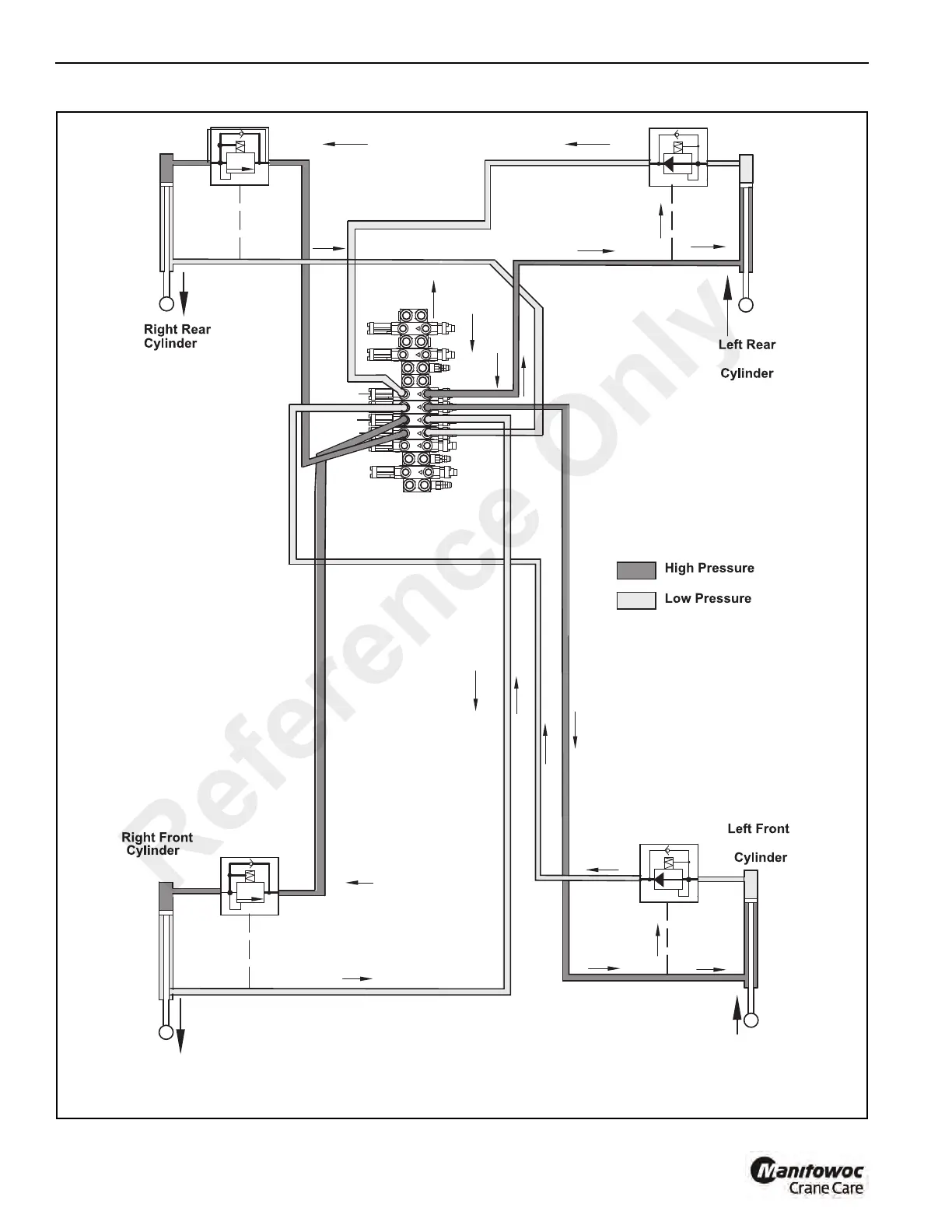

Oil Flow - Vertical Outrigger Extend and Retract
(Optional Independently Controlled Outriggers
Reference Only
