2013 MasterCraft Owners Manual • Care and Maintenance • Page 5-4

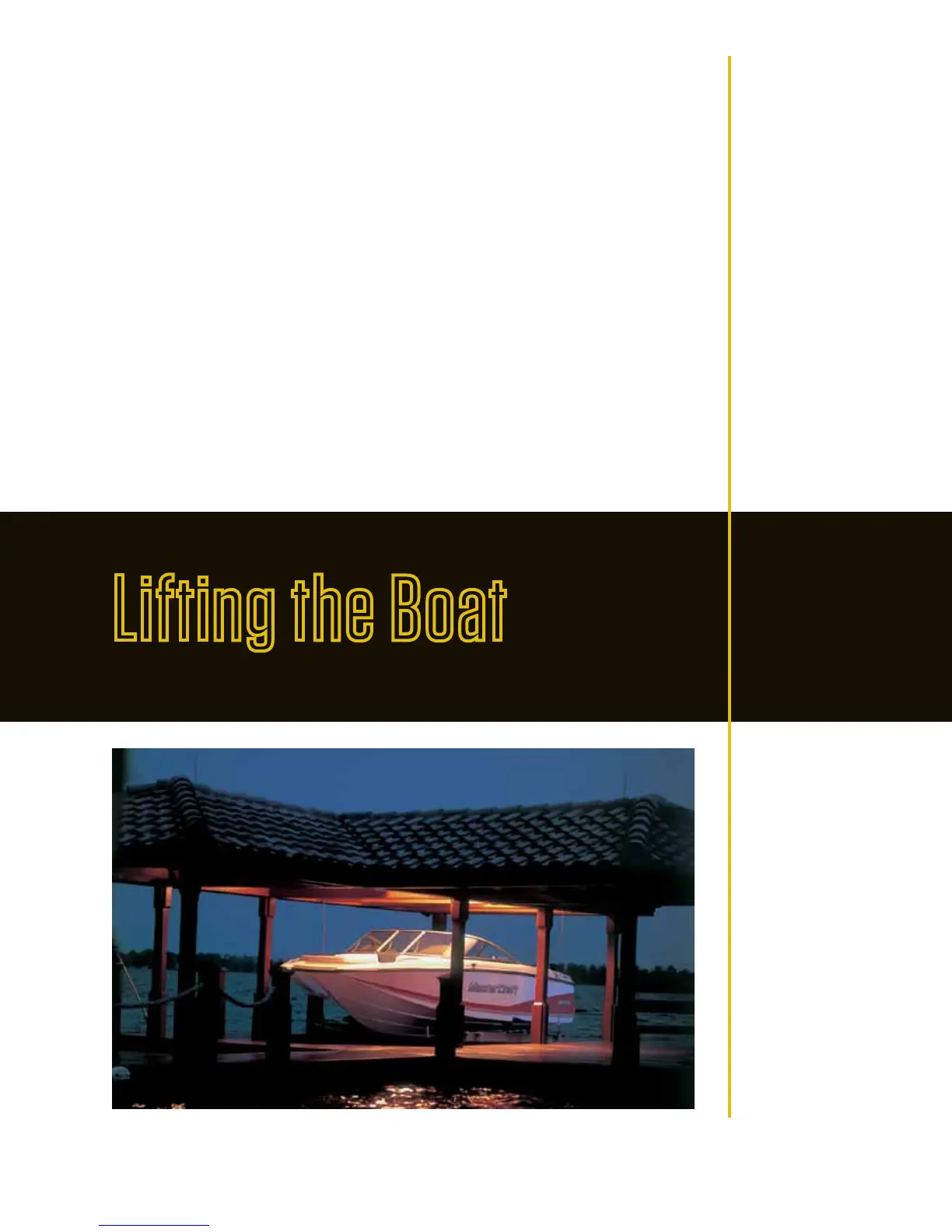

Lifting the Boat
Storage Cradle
If a storage cradle is used, the hull must be properly supported to prevent load dam-
age. This can occur with as little as fifteen (15) pounds per square inch of pressure. DO
NOT support the boat by resting the hull on the keel (the central fore-and-aft structural
member in the bottom of the boat’s hull, extending from the bow to the stern). Vertical
supports must extend from the chine (the angular intersection of the bottom and sides
of the boat) to the keel with no gaps between the hull and cradle supports. A total sup-
port area of at least 250 square inches is required for proper support of boats under 25’
and 500 square inches for boats over 25’. Protect all items extending from the hull (i.e.,
the rudder, propeller, fins, etc.) to prevent them from resting on the cradle or the ground.
DO NOT apply any load stress to the propeller, shaft, rudder, swim platform, water intake
grate or other protruding items.
