2013 MasterCraft Owners Manual • Electronic Instrumentation • Page 3-12
Video Display Gauge
On most MasterCraft boats considerable information
about functionality is shown in a video display gauge. A sep-
arate short manual can walk you through the intuitive steps
required to review a substantial amount of information.

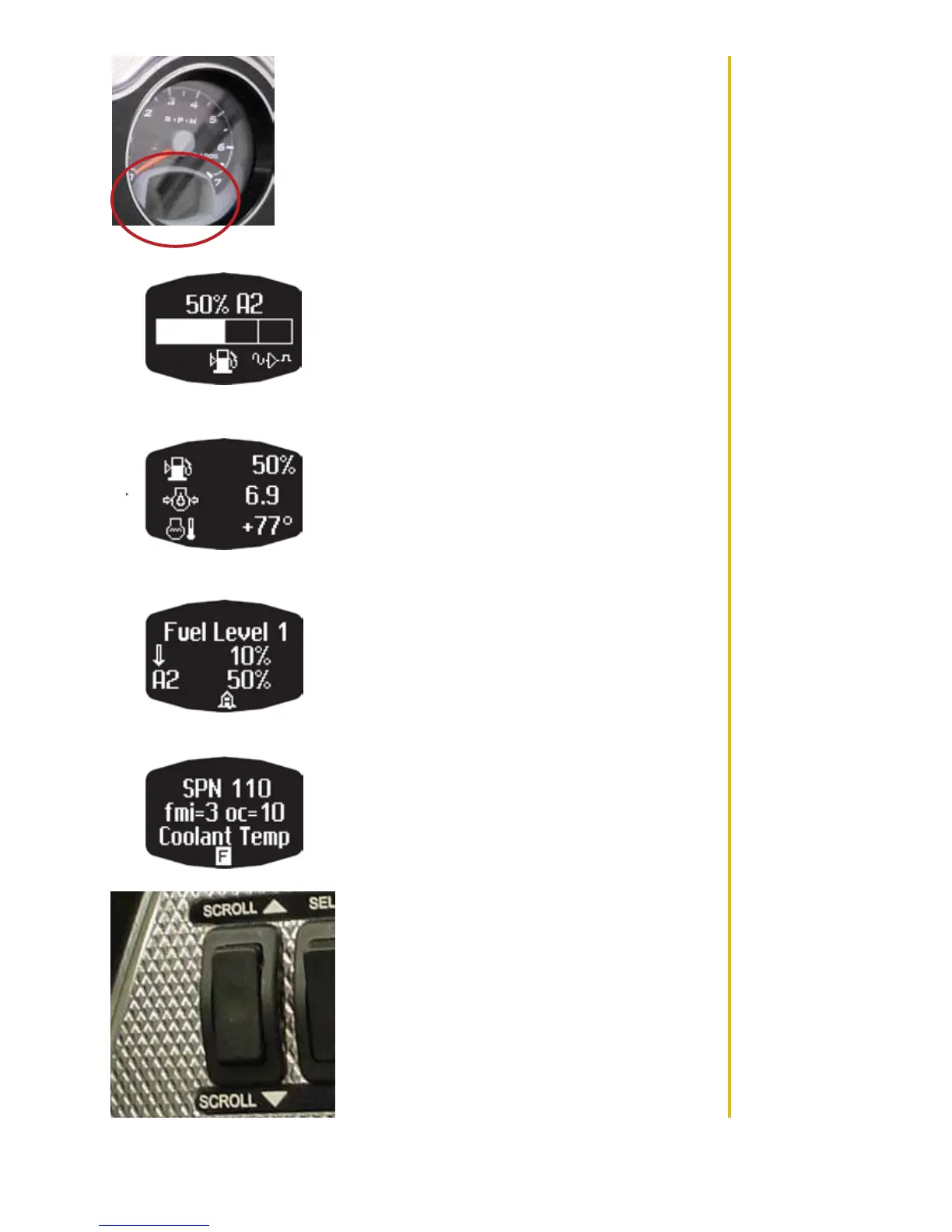

On the ProStar 190 and 197 models, four dierent po-
tential screens appearing on the bottom of the tachometer
gauge provide operational information. These screens are:
Fuel Consumption: An approximate percentage of the
fuel appears along side the channel number. A bar also
shows the approximate amount of fuel in the tank. These
readings are imprecise. See Fuel Gauge description for
additional important information.
Multi-function: In one screen, indicates approximate
fuel level, voltage level and water temperature. These
readings are imprecise. See Fuel Gauge, Voltmeter and
Water Temperature Gauge descriptions for additional
important information.
Alarm Screen: In conjunction with on-board alarms that
sound when potential issues aecting the boat’s perfor-
mance, this screen can provide additional detail regard-
ing those issues. Always take appropriate action to
protect all persons and the boat, as described elsewhere
in this Owner’s Manual.
Fault Screen: In the event of most types of potential
mechanical failures, the system will present a fault code.
These codes are decipherable by your authorized Mas-
terCraft dealer and should be reviewed, and the system
reset, whenever fault codes appear.
The control for this gauge will be on the left-hand
lower portion of the console. Use the Scroll switch
to move up or down through the screens.
