Matrix T1XE-04 User Manual

32

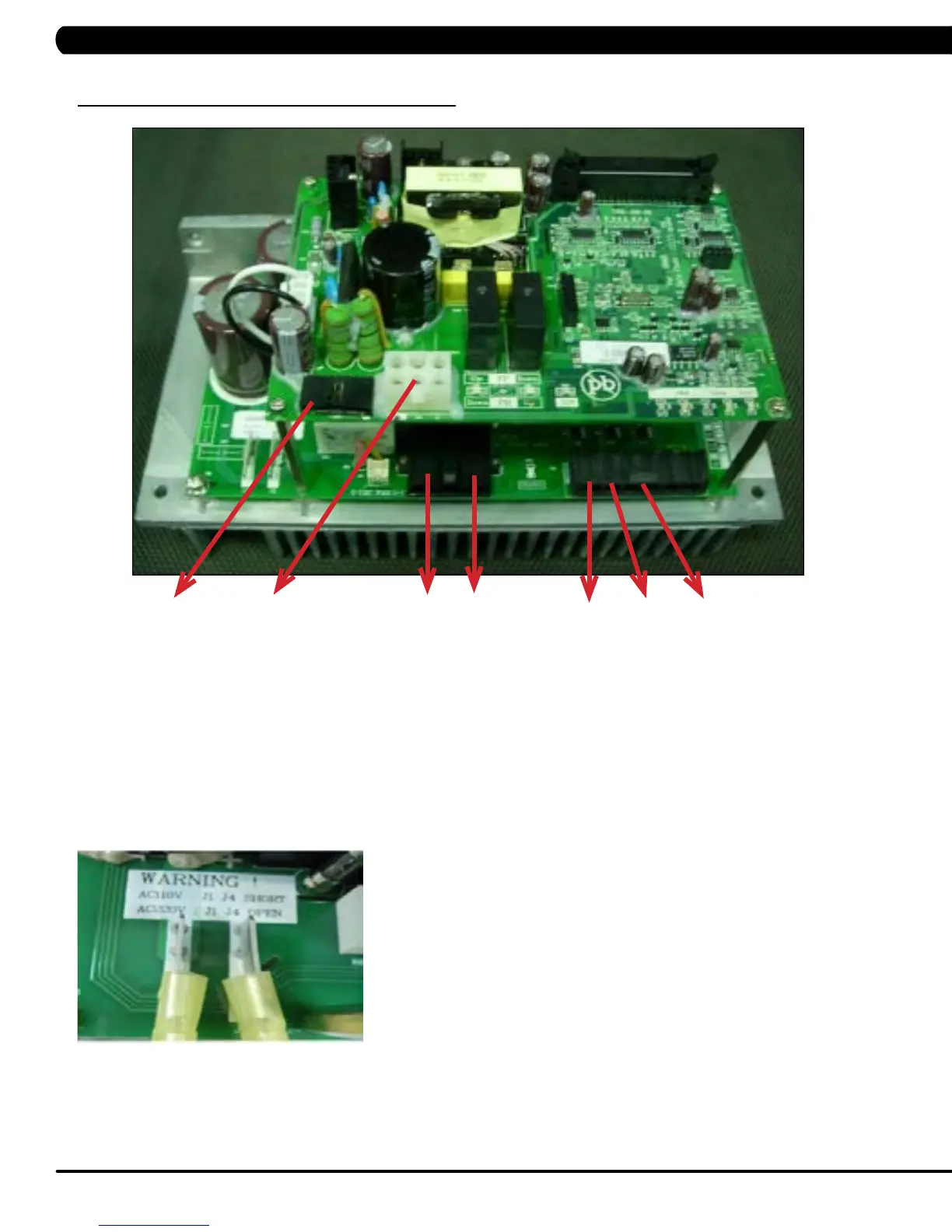

8.2 MCB WIRING
JP3 JP4
N L
U
V
W
JP3 - Console Cable
JP4 - Incline Motor Cable
N - Power Input (white)
L - Power Input (Black)
U - Motor Wire (red)
V - Motor Wire (White)
W - Motor Wire (Black)
CHAPTER 8: TROUBLESHOOTING
AC 110V : J1 and J4 Short
AC 220V : J1 and J4 Open
