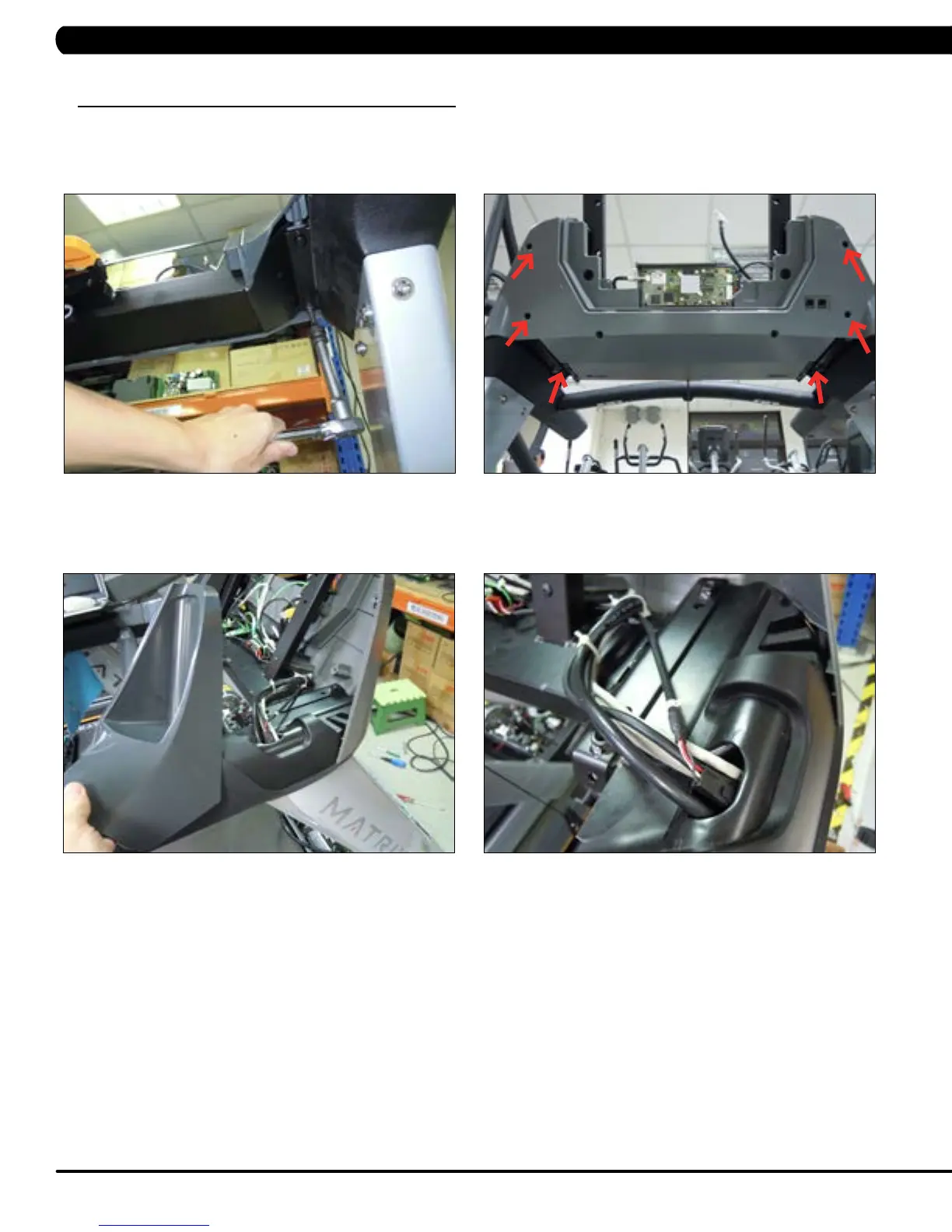

9.15 CONSOLE FRAME REPLACEMENT
1) Turn off power to the treadmill and disconnect the power cord.
2) Remove the console as outlined in Section 9.12.
3) Remove the 2 screws on each side holding the console frame to the handlebar frame (Figure A).
4) Remove the 3 screws on each side holding the cup holders to the console frame (Figure B)
5) Remove the 2 cup holders from console frame (Figure C).
6) Remove the console cable wiring from the console frame (Figure D).
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE A
FIGURE B
FIGURE C
FIGURE D
