Matrix T1XE-04 User Manual

51

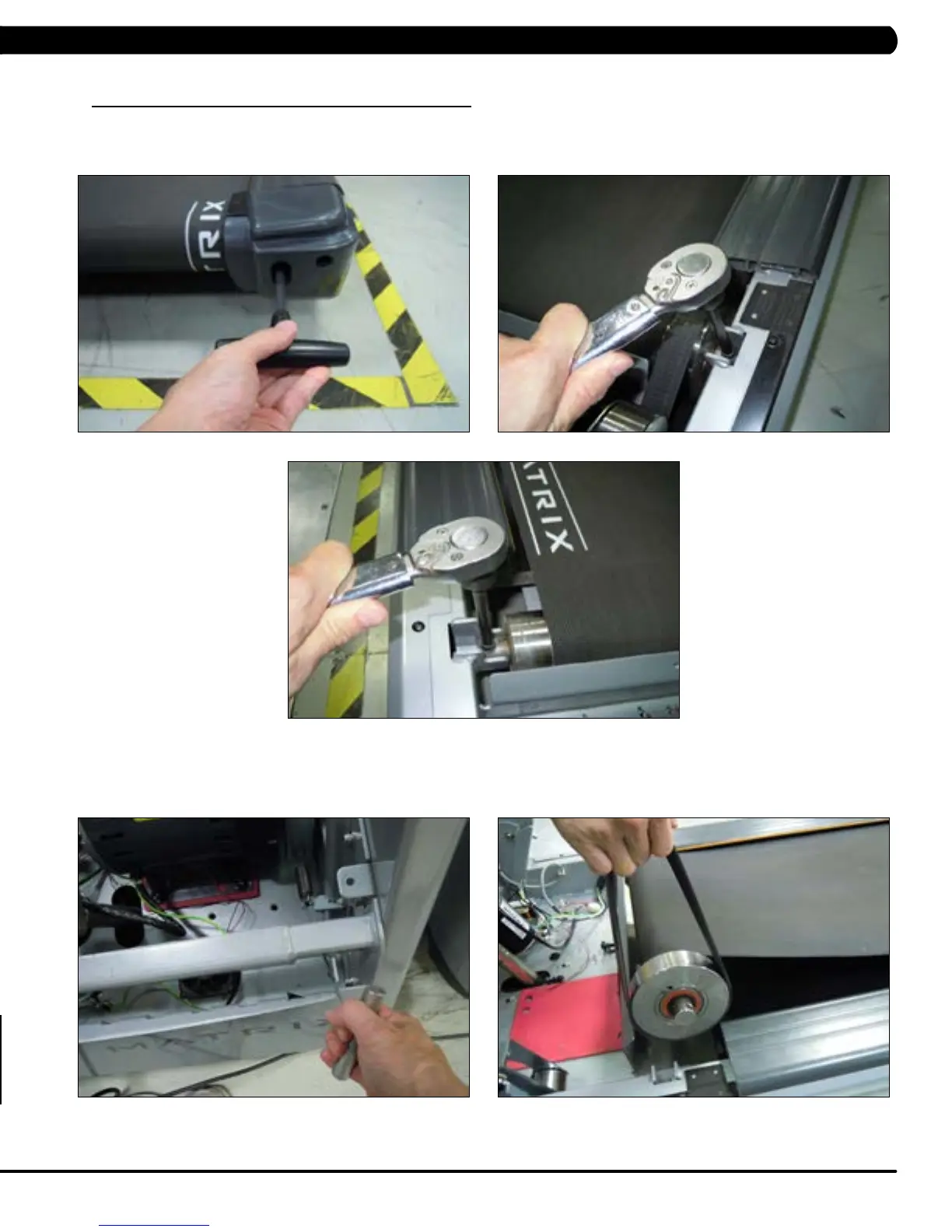

9.6 FRONT ROLLER REPLACEMENT
1) Remove the motor cover as outlined in Section 9.1.
2) Loosen both of the rear roller screws using an 8mm T-Shaped wrench to remove tension from the running belt (Figure A).
3) Remove the front roller mounting screws using an 6 mm Allen wrench (Figures B & C).
4) Use a hook or loop of wire to remove the spring from the drive belt tensioner. The tensioner should now pivot away from the drive belt
(Figure D).
5) Remove the drive belt from the front roller and remove the roller from the running belt (Figure E).
6) Reverse Steps 1-5 to install a new roller.
7) Test the treadmill for function as outlined in Section 9.21.
FIGURE A FIGURE B
FIGURE D FIGURE E
FIGURE C
CHAPTER 9: PART REPLACEMENT GUIDE
