9.1 MOTOR COVER REPLACEMENT

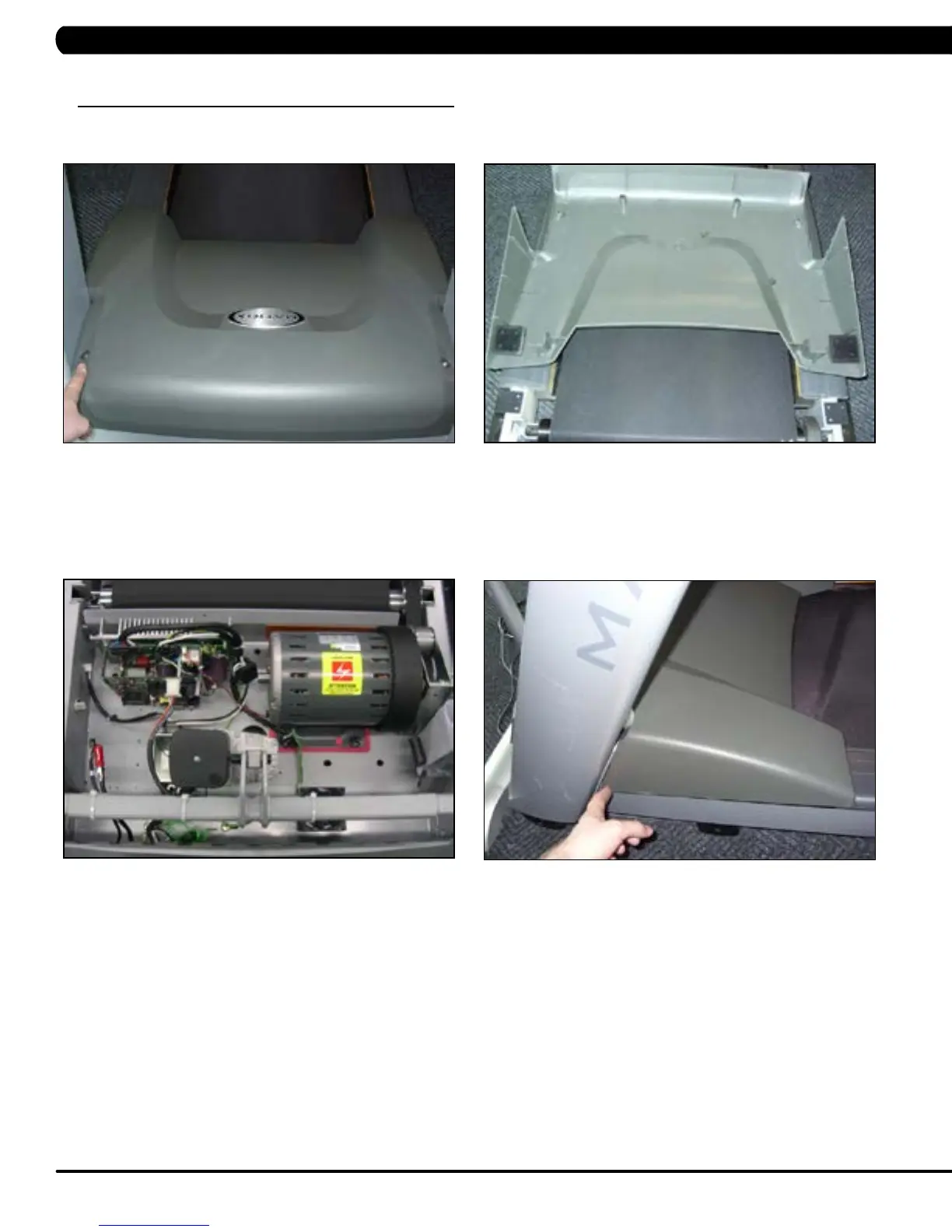

FIGURE A FIGURE B
FIGURE C
FIGURE D
CHAPTER 9: PART REPLACEMENT GUIDE
1) Remove the 2 screws holding the motor cover to the frame using a 6 mm Allen wrench (Figures A).
2) The cover is secured to the frame with velcro, so you will have to pull up with some force (Figure B).
3) Figure C shows the motor area with the motor cover removed.
4) Reverse Steps 1-3 to install a new motor cover. NOTE: When reinstalling the motor cover, be sure to tuck the sides in so they do not bow
outward (Figure D).
