Matrix T1XE-04 User Manual

69

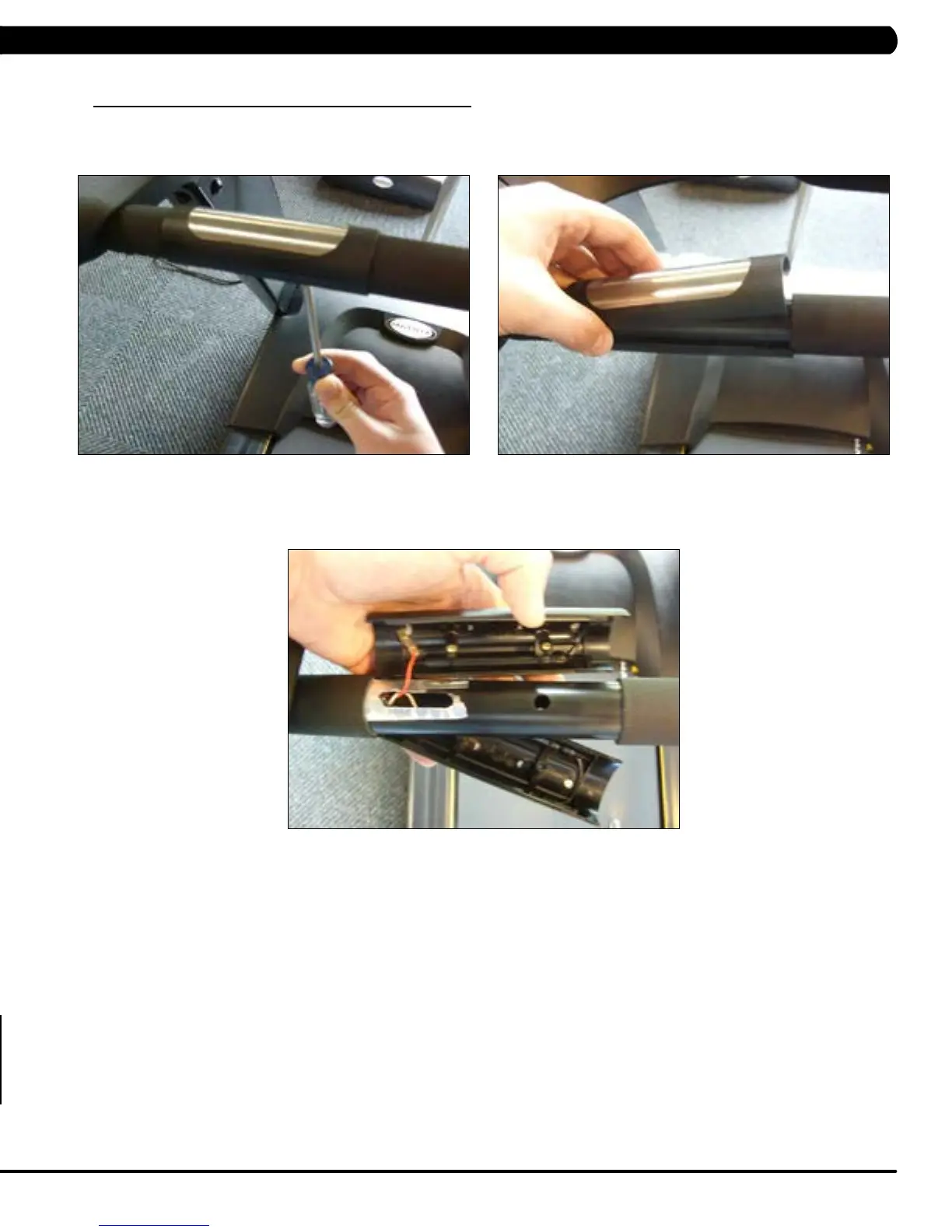

9.19 HEART RATE GRIPS REPLACEMENT
1) Turn off power to the treadmill and unplug the power cord.
2) Remove the 2 screws holding the lower plastic heart rate grip to the upper plastic heart rate grip (Figure A).
3) Pull apart the 2 halves of the heart rate grip (Figure B).
4) Unplug the wires from the top and bottom plate and remove the heart rate grip (Figure C).
5) Reverse Steps 1-4 to install a new heart rate grip. NOTE: When installing a new HR grip, the red wire should attach to the top plate and
the white wire to the bottom plate.
6) Test the treadmill for function as outlined in Section 9.21.
FIGURE A FIGURE B
FIGURE C
CHAPTER 9: PART REPLACEMENT GUIDE
