9.13 EMERGENCY STOP SWITCH REPLACEMENT
1) Turn off power to the treadmill and remove the power cord.

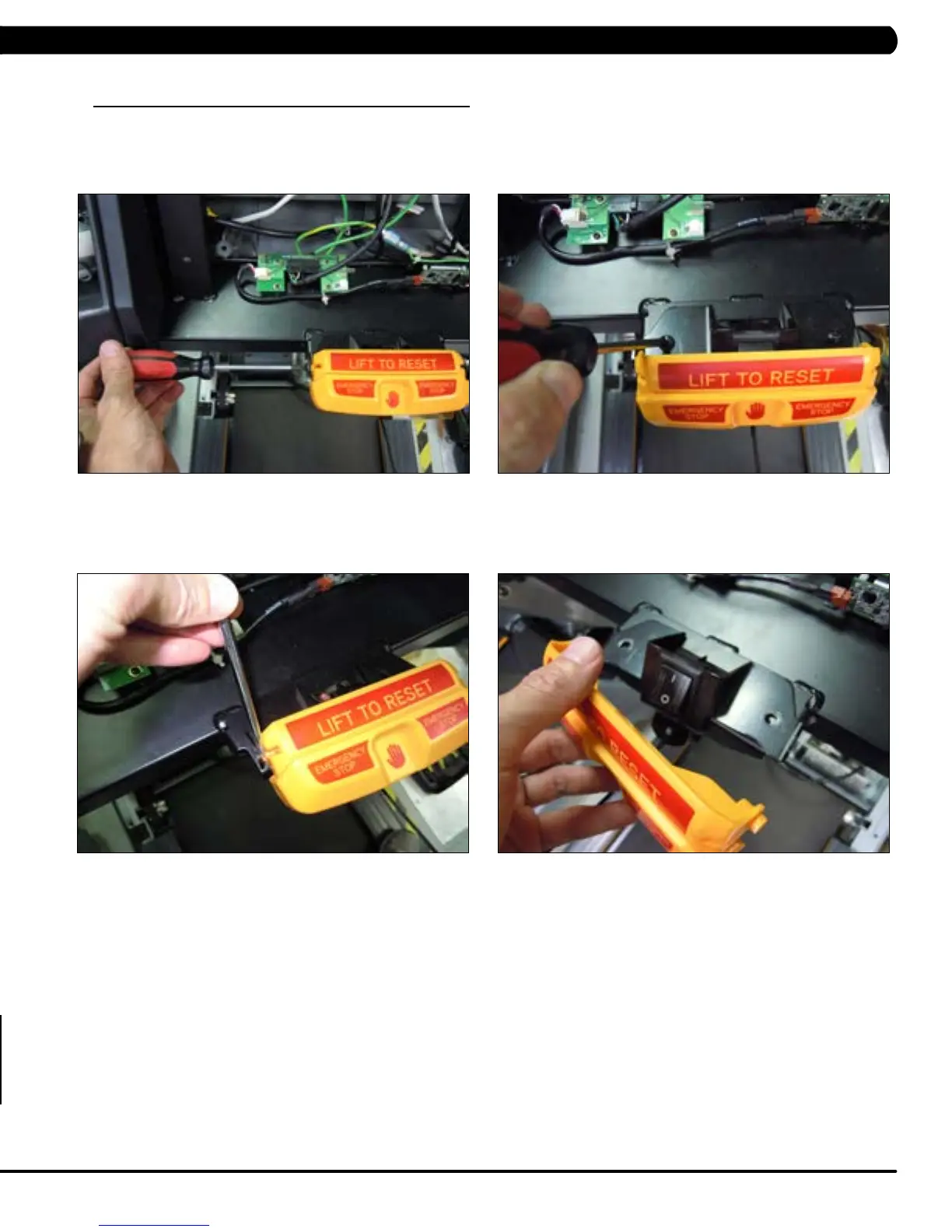

2) Remove the console as outlined in Section 9.12.
3) Remove the 2 screws holding the emergency stop key to the emergency stop frame (Figure A).
4) Remove the 2 screws holding the emergency stop frame to the console frame (Figure B).
5) Use a flat screwdriver to flex the emergency stop key to remove it from the emergency stop frame (Figures C & D).
FIGURE A
FIGURE B
FIGURE C
FIGURE D
