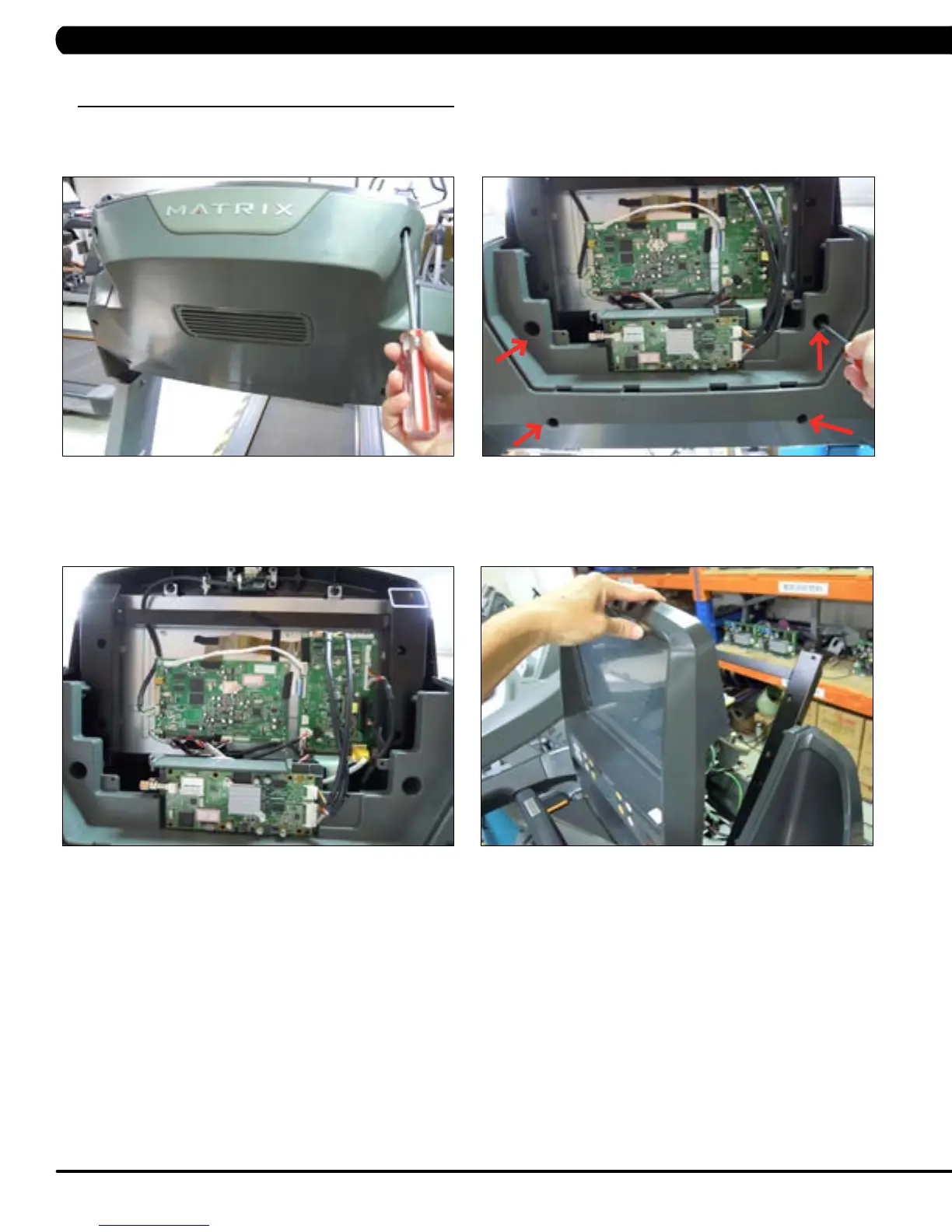

9.12 CONSOLE REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power to the treadmill and disconnect the power cord.
2) Remove the 2 screws holding the back cover onto the console (Figure A).
3) Remove the 4 screws holding the console onto the console frame (Figure B).
4) Disconnect the 7 wire connections from the console (Figure C).
5) Remove the console (Figure D).
6) Reverse Steps 1-5 to install a new console.
7) Test the treadmill for function as outlined in Section 9.21.
FIGURE A FIGURE B
FIGURE C
FIGURE D
