©2004 Maytag Appliances Company 16022904 Rev. 0 13
Troubleshooting Procedures
WARNING
To avoid risk of electrical shock, personal injury or death, disconnect power to unit before servicing, unless testing
requires power.
General Specifications
Wattage Specifications

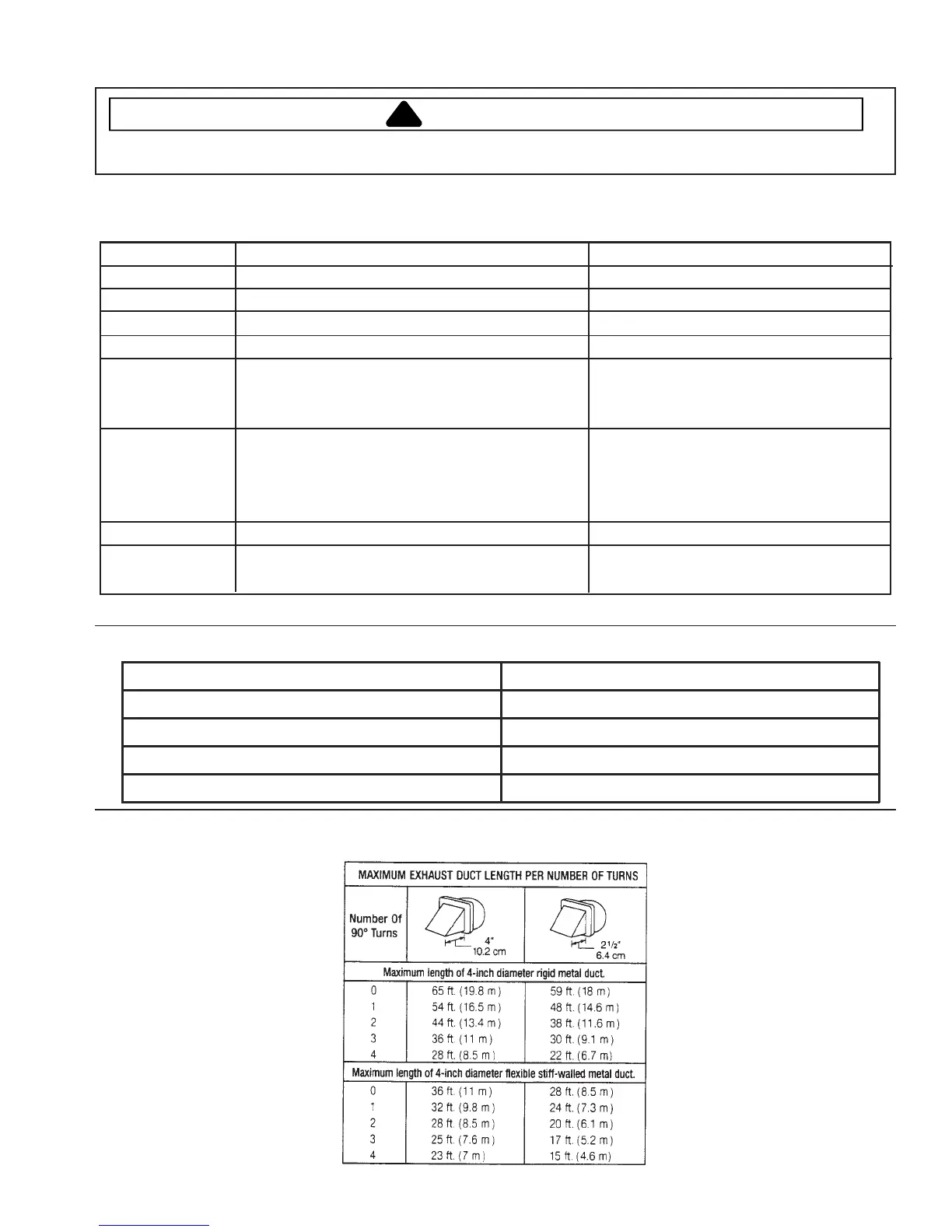

Exhaust Ducts
Capacity 6.0 Cubic Feet One washer load is a full dryer load
Motor Thermo-protected against overload auto-reset 1/4 HP, 120 Volt, 60 Hz
Air Flow Cubic feet per minute exhausted from dryer 220 CFM
Tumbler Revolution per minute 52 RPM
Rotation Drum Turning, when viewed from the front Clockwise
Heat Source • Electric • 240 volt, 5600 watts, 30 amp fuse
• Gas • Single port burner 24,000 BTU/hr.
direct ignition, automatic shut-off
Exhaust Venting size 4"(10.2 cm) duct, rigid aluminum
duct work. (See installation instruc-
tions that are provided with the
product for additional information.)
Makeup Air Free opening Requires 30 sq. in. per dryer pocket
Static Pressure Single unit exhausting, 4" round rigid Should not exceed 0.92" or less
than 0 water column inches
DESCRIPTION WATTS
Gas Dryer 350 Maximum without igniter
Electric 5900 (240V)/5600 208V)
Heating Element 5600 (240V)/5100 (208V)
Igniter
(NOTE: Ohm room temperature 180-400)
600
