52 16022904 Rev. 0 ©2004 Maytag Appliances Company
WARNI NG
!
To avoid risk of electrical shock, personal injury or death;
disconnect power to unit before servicing.

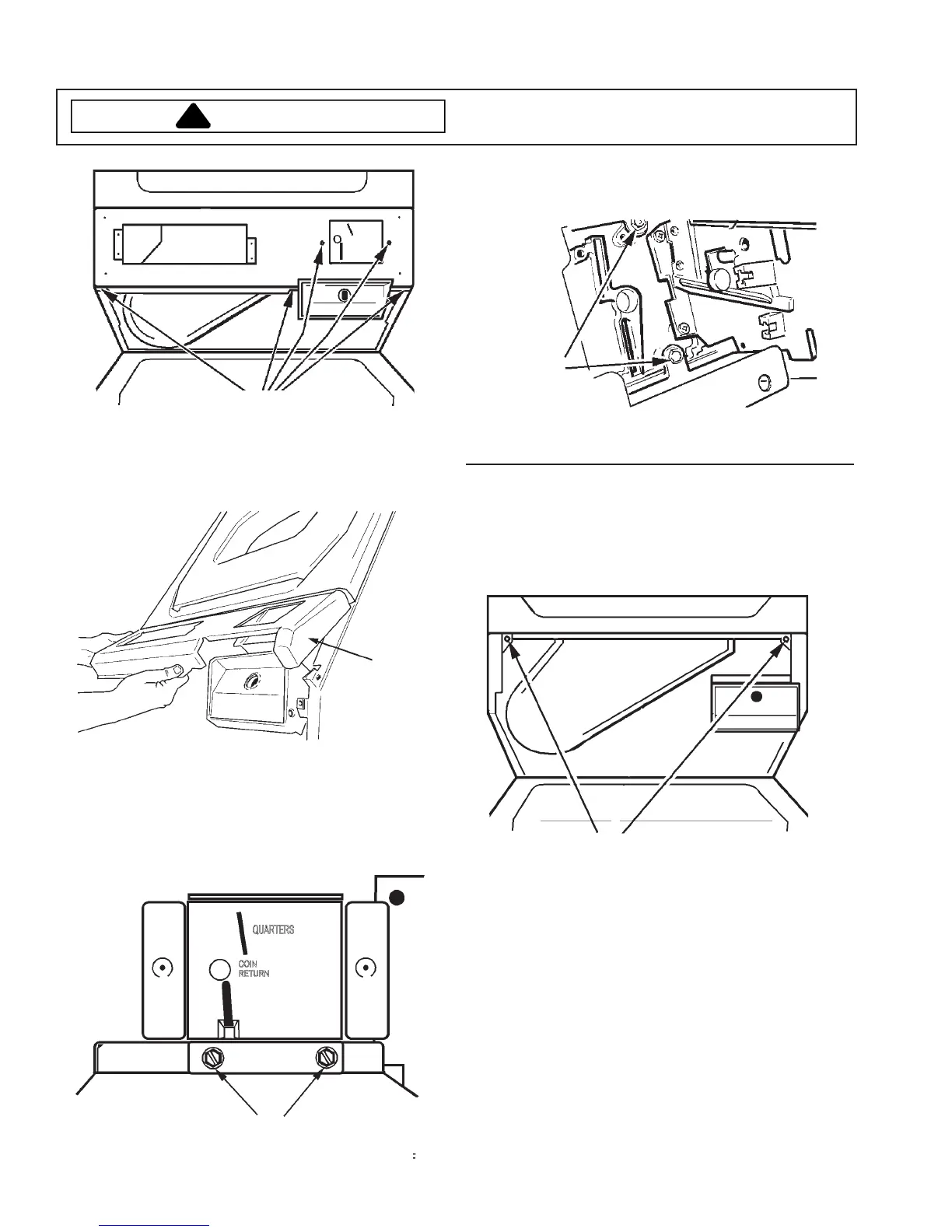

Disassembly Procedures
4. Lift control panel away from the dryer.
Remove Screws
5. Remove two 5/16” screws holding coin drop mounting
plate.
Swing Out
and
Away
Remove Screws
6. Remove two screws securing coin drop to mounting
plate.
Remove
Two
Screws
Remove Screws
Front Panel
1. Disconnect power to the machine.
2. Remove the Service Panel and Control Panel.
3. Remove two T-20H screws secured into lower flange
of the upper Front Panel.
4. Remove the two 5/16" hex head screws located in the
top right and left front corners of the Front Panel.
To Next Page
