WARNI NG
!
To avoid risk of electrical shock, personal injury or death;
disconnect power to unit before servicing.

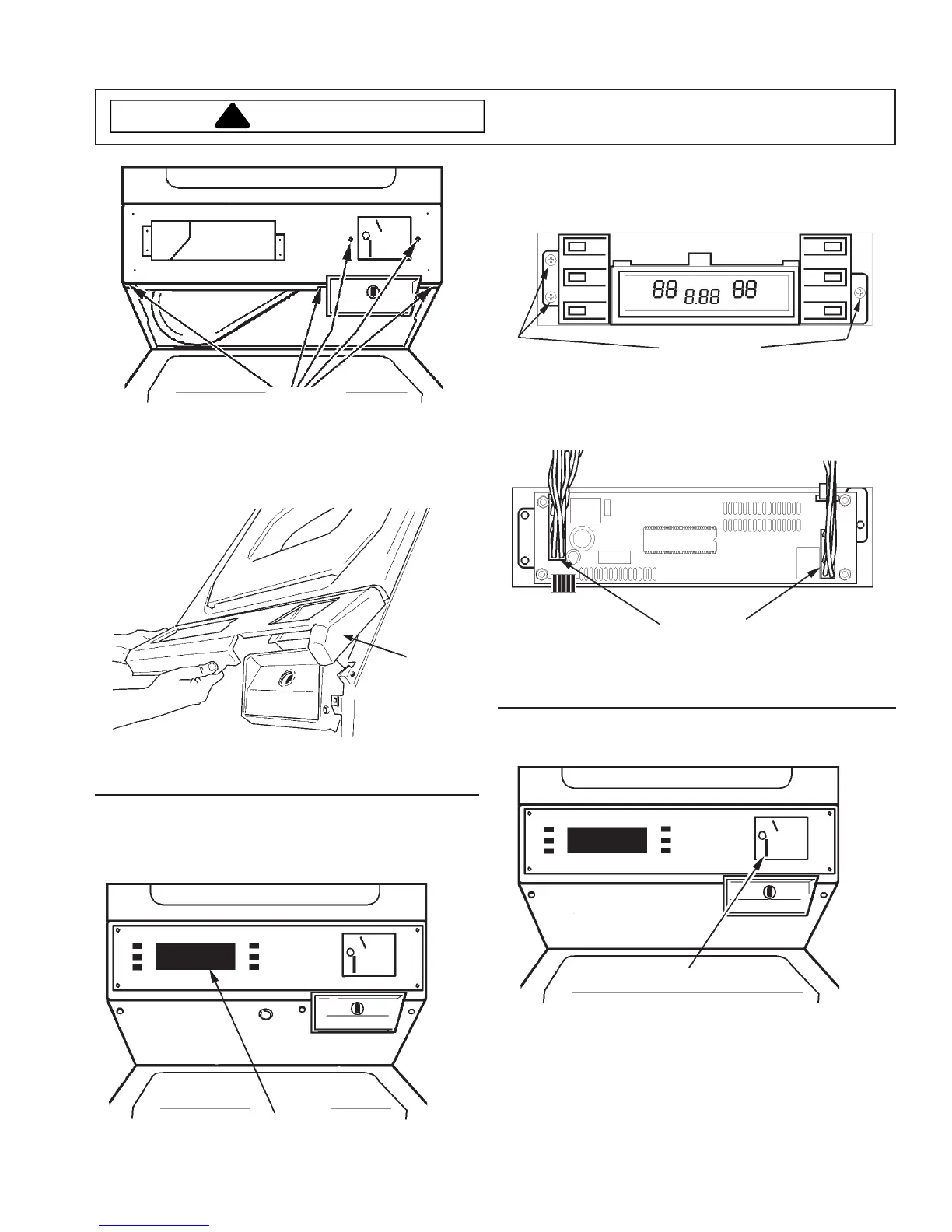

Disassembly Procedures
4. Observe the position of the harness connector plugged
into the Microprocessor Board.
Coin Drop
1. Disconnect power to the machine.
2. Remove the Service Panel.
3. Remove three security torx screws and two pozi-drive
screws securing the Control Panel.
3. Remove three screws securing the Microprocessor to
the Control Panel.
Remove
Screws
Harness Connector
Microprocessor
1. Disconnect power supply to unit.
2. Remove four security screws securing the Facia.
Microprocessor
4. Lift Control Panel away from the dryer
.
Screws
Control
Panel
Coin Drop
To Next Page
