©2004 Maytag Appliances Company 16022904 Rev. 0 55
WARNI NG
!
To avoid risk of electrical shock, personal injury or death;
disconnect power to unit before servicing.
Disassembly Procedures
STACK DRYER-FLAT FRONT MODELS
Note: The following section is exclusive to the “Flat
Front Model” stack dryers.

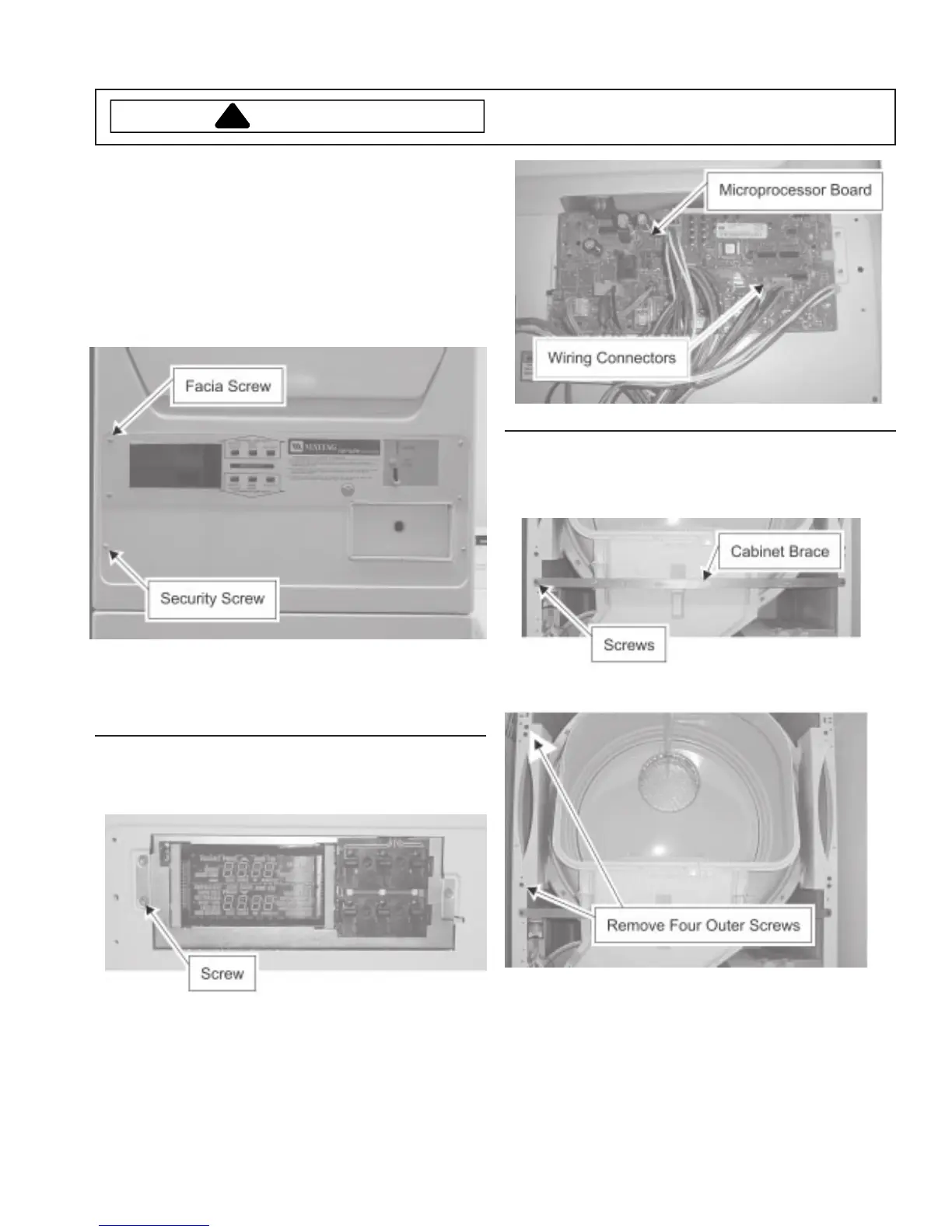

Front Panel
1. Disconnect power supply to unit.
2. Remove two security screws securing Front Panel.
3. Swing Front Panel out and away from dryer.
Note: Observe the wire placement connected to
components attached to the Front Panel.
Microprocessor
1. Disconnect power supply to unit.
2. Remove four security screws securing facia.
3. Remove three screws securing the microprocessor to
the Front Panel.
4. Remove screws(T25 H) securing Front Panel.
5. Disconnect wiring connections.
6. Remove Microprocessor Board and bracket.
Front Shroud Assembly
1. Disconnect power supply to unit.
2. Remove Front Panel.
3. Remove screws securing cabinet brace.
4. Remove four outer screws.
