©2004 Maytag Appliances Company 16022904 Rev. 0 45
WARNI NG
!
To avoid risk of electrical shock, personal injury or death;
disconnect power to unit before servicing.

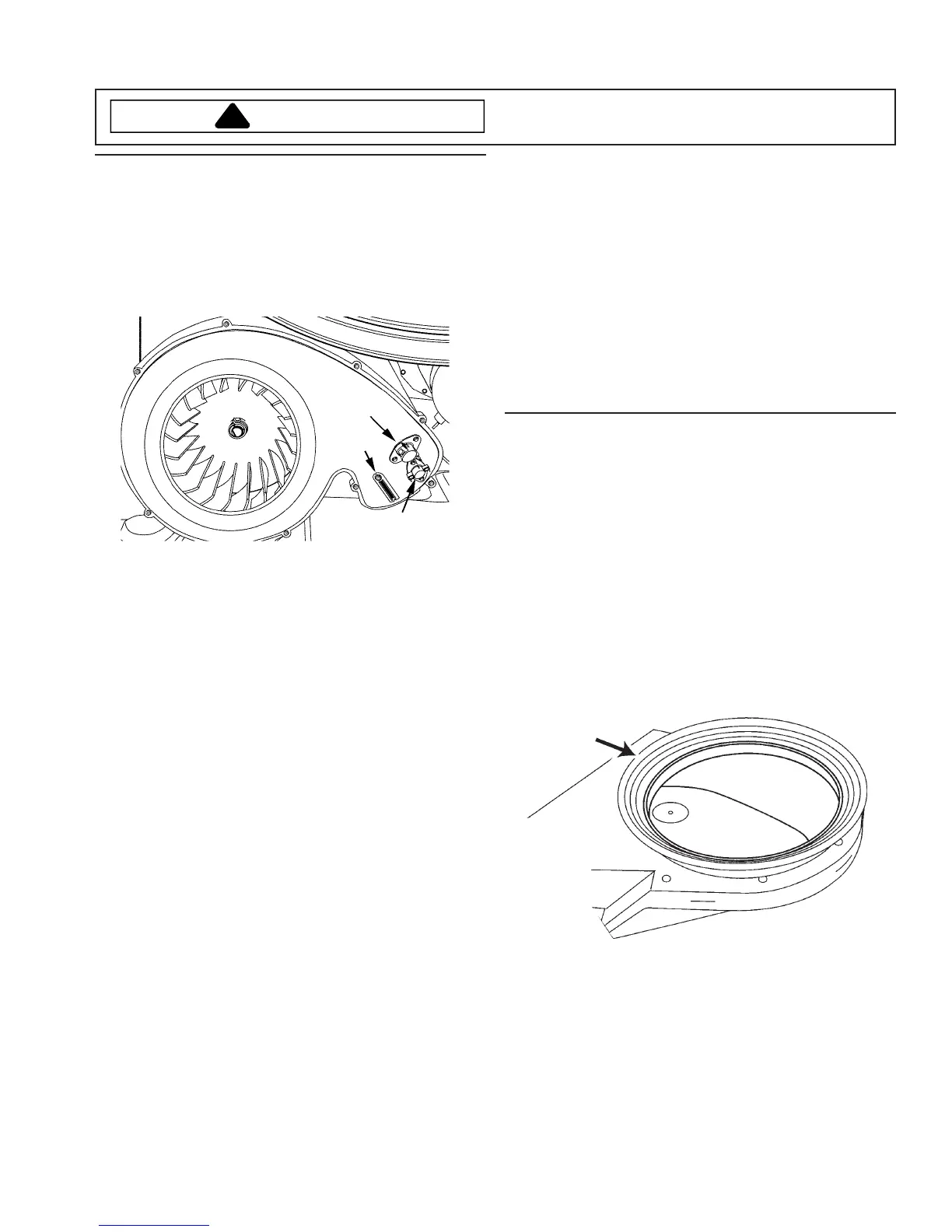

Disassembly Procedures
Hi-Limit Thermostat
1. Disconnect power supply to unit.
2. Remove Front Panel.
Note: Hi-Limit Thermostat is located on the right hand
side of the Heating Cone for Gas Models and on
the left hand side for Electric Models.
3. Disconnect wires to Hi-Limit Thermostat .
4. Loosen the rear mounting screw and remove the front
screw.
Note: The mounting tabs of the thermostat are open-
slotted.
Blower Assembly
1. Disconnect power supply to unit.
2. Remove Front Panel.
3. Remove Front Shroud Assembly.
Blower Seal
1. Disconnect power supply to unit.
2. `Remove Front Shroud Assembly.
Note: The rubber seal is secured to the outlet duct
opening. The seal is fitted around the outer
circumference lip of the outlet duct with the
flange of the seal facing the blower cover.
Air Outlet
Seal
Air Outlet
Duct
Blower Cover
1. Disconnect power supply to unit.
2. Remove Front Shroud Assembly.
3. Remove screws holding cover to blower housing.
Note: One screw secures blower Cover to base frame.
Thermostats
1. Disconnect power supply to unit.
2. Remove Front Panel.
Note: Thermostats are located on Blower Cover. Hi-
Limit Thermostat and is located on heating
source for gas and electric models.
Cycling Thermostat
1. Disconnect power supply to unit.
2. Remove Front Panel.
3. Disconnect wires to Cycling Thermostat.
4. Remove two screws securing thermostat to blower
cover.
Low-cycling Thermostat
1. Disconnect power supply to unit.
2. Remove Front Panel.
3. Disconnect wires to Low-Cycling Thermostat.
4. Remove Two screws securing thermostat to blower
cover.
Thermal Fuse
1. Disconnect power supply to unit.
2. Remove Front Panel.
3. Disconnect wires to Thermal Fuse.
4. Remove Two screws securing fuse to blower cover.
Note: “MDE” dryers (Electric Dryer Models) also have a
Thermal Fuse mounted on the Heater Enclosure.
Cycling
Thermostat
Thermal
Fuse
Low Cycling
Thermostat
To Next Page
