56 16022904 Rev. 0 ©2004 Maytag Appliances Company
WARNI NG
!
To avoid risk of electrical shock, personal injury or death;
disconnect power to unit before servicing.
Disassembly Procedures

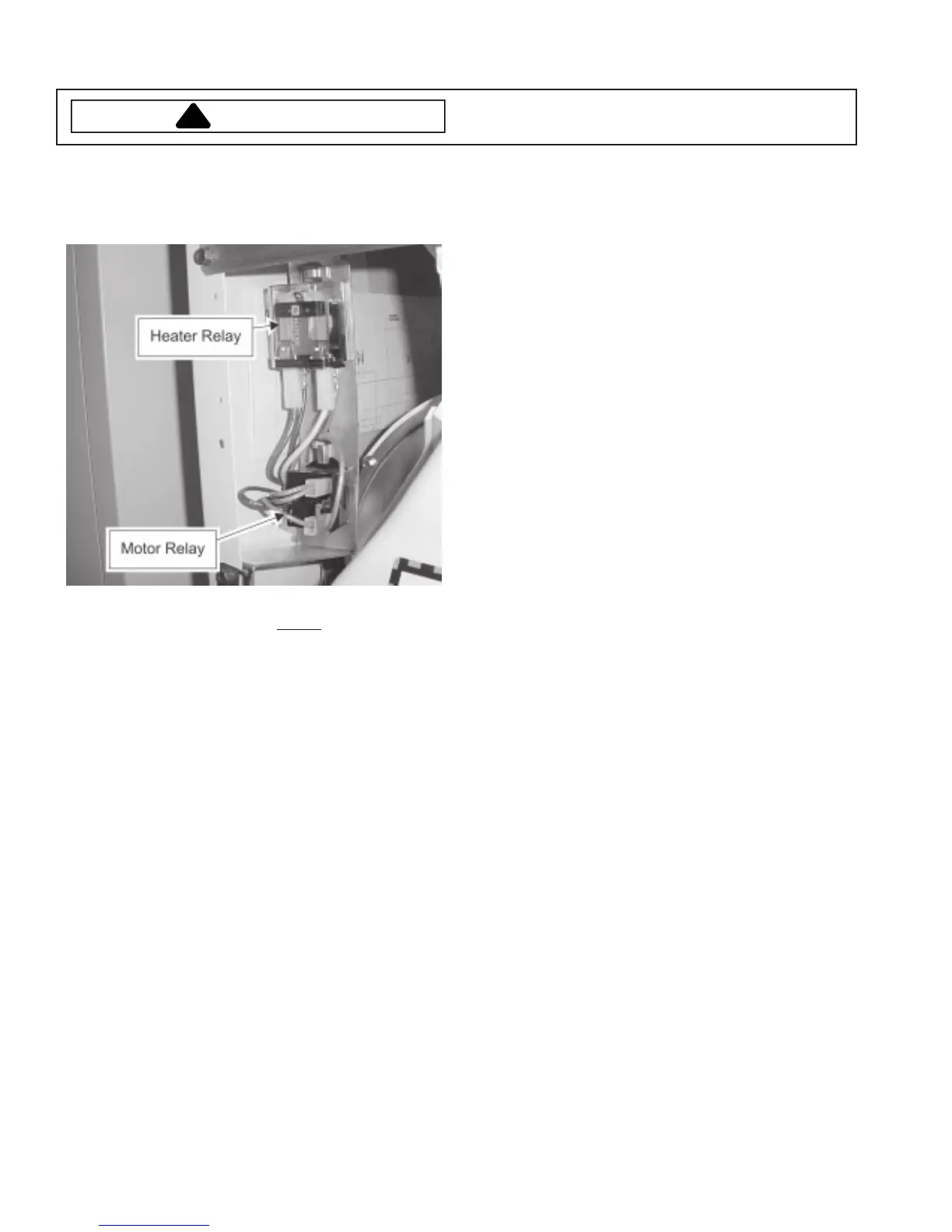

Motor & Heater Relays
1. Disconnect power supply to unit.
2. Remove Cabinet Brace.
Note: Heater Relays are used ONLY on “MDE” model
dryers (Electric Models).
3. Remove screws securing relay bracket.
4. Disconnect wires to relays.
To Next Page
