WARNI NG

To avoid risk of electrical shock, personal injury or death;

disconnect power to unit before servicing.

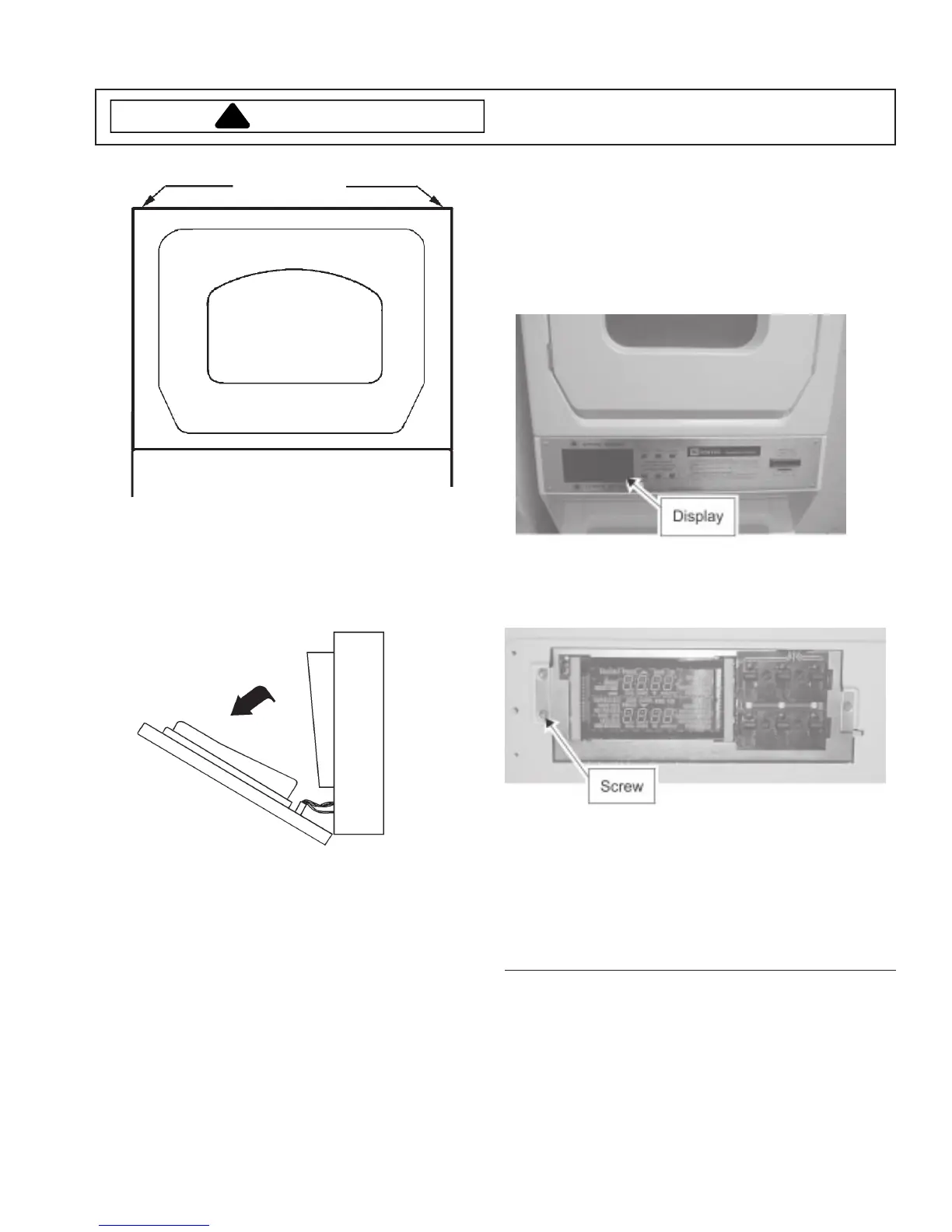

Disassembly Procedures

Remove

Screws

Tip

Forward

& Lift up

Slightly

5. Tip the top of the front panel forward and slightly

lift the Front Panel at the same time. Then

remove the wires from the door switch.

6. With the wiring removed from the door switch,

continue to tilt the front panel forward while

lifting the panel to clear the two lower mounting

brackets.

STACK DRYER-MN Models

Note: The following section is exclusive to the MN

stack dryers.

Front Panel

1. Disconnect power supply to unit.

2. Remove two front screws.

3. Swing panel out and away from dryer.

STACK DRYER SLOPED FRONT (PR

MODEL)

Note: The following is exclusive to the PR Model -

sloped Front Dryer.

Microprocessor

1. Disconnect power supply to unit.

Note: Display is larger on “PR” model dryers.

2. Remove four security screws securing facia.

3. Remove three screws securing the microprocessor to

the Control Console.

4. Remove Control Panel.

5. Disconnect wiring connections.

6. Remove Microprocessor Board and bracket.
