Page 82 OM 780-2
The Internal Schedule Editor
Clicking on the Schedule Icon on the Sched screen brings up the schedule editor. From the schedule editor you can select
the Weekly, Holiday, Special-event, and Calendar schedules.
If you want the CSM to have complete authority over chiller system scheduling, set the BAS Network Schedule Flag to
“No BAS Scheduling Allowed” and do not connect a clock to the external start/stop input.

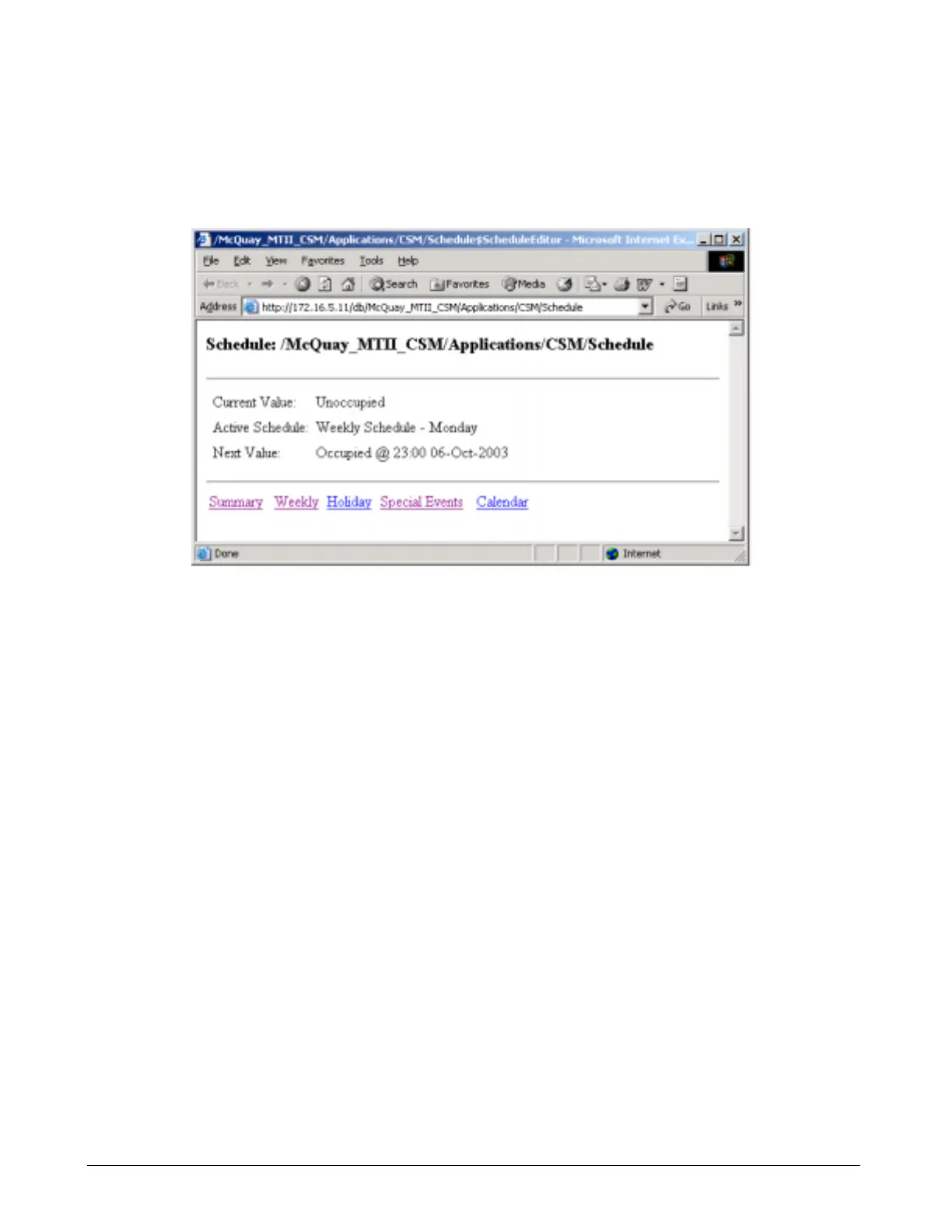

Figure 38. Menu of Schedules (Main > Configuration > Sched > Schedule Icon)
Weekly Scheduling
With the CSM’s internal weekly scheduling function, you can set start and stop times for each day of the week. This is a
repeating 7-day schedule.
