Positioning the appliance in
the wall housing unit
To position the appliance correctly,
cut the spacer strip to required depth
T, and then attach it to the back of
the appliance.
T= Depth of carcase K minus depth of
appliance G
^
Example a shows the installation
without a front panel fitted and with
the front edge of the deflector plate
flush with the front edge of the
furniture housing unit. This installation
needs a shelf of at least 95 mm deep.
^ Example b shows the installation
with a front panel to match the
kitchen furniture. This installation
requires dimension b for the front
panel plus 5 mm for the DML 400
fixing kit to be added to the shelf
dimension (95 mm+ 5 mm +
dimension b).
The remaining installation gap must be
at least 180 mm in depth.
If it is less than 180 mm, position the
appliance further back, and reduce
measurement T accordingly.
The position of the deflector plate can
be adjusted in depth by a maximum of
35 mm at the front.
^
Cut the spacer strip supplied to
measurement T.
Score along the groove for the
smaller measurement as shown, and
remove the surplus.
^

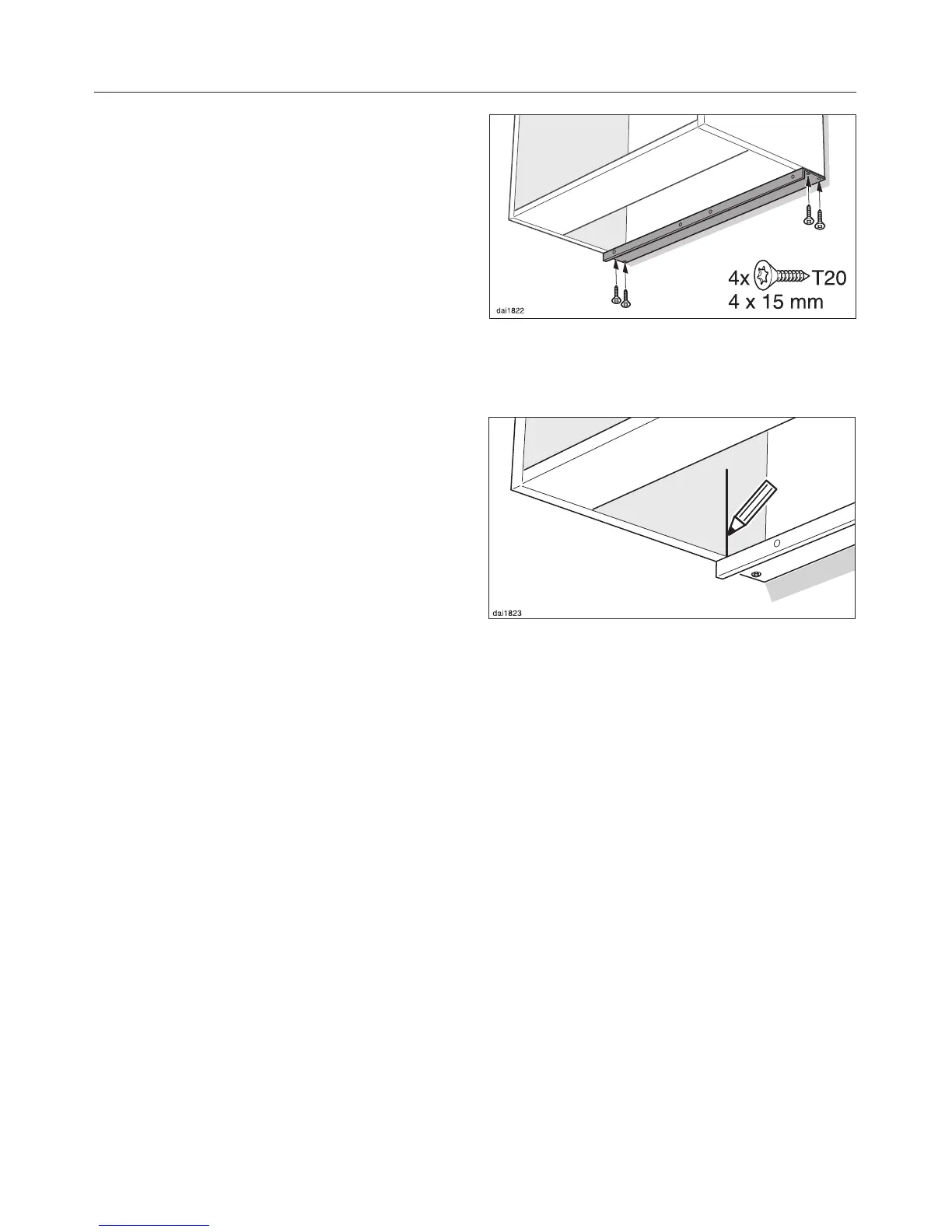

Screw the spacer strip underneath
the housing unit sides, flush with the
rear wall.
^ Draw a vertical line up both inside
walls of the housing from the front of
the spacer strip.
Installation
23
