Miele DA 3360 User Manual

^

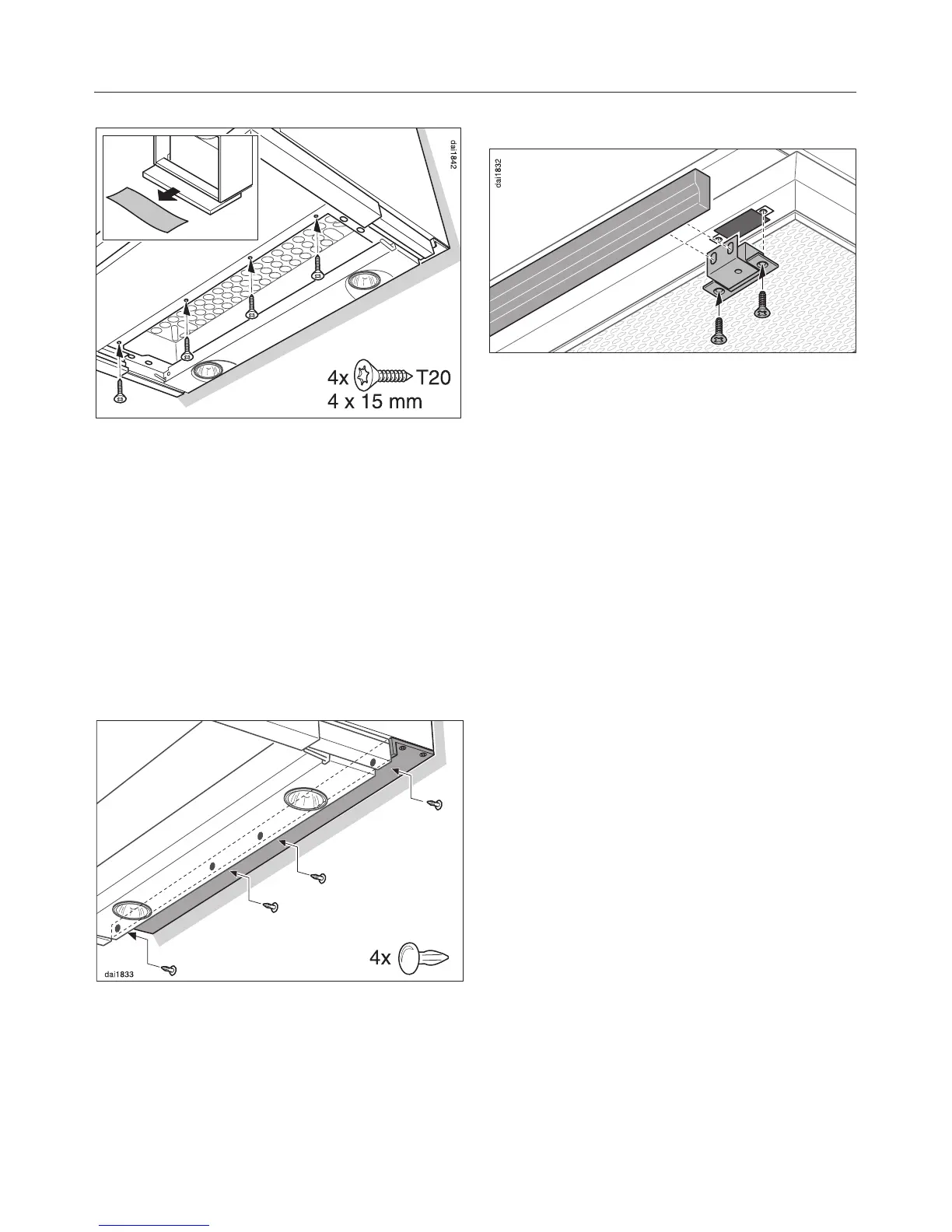

Remove the protective film between
the deflector plate and the casing.
^ Secure the front of the appliance to
the floor of the housing unit from
below using 4 screws.
To avoid damaging the deflector plate
when it is pulled out, care should be
taken to screw the fixing screws in
straight, and to ensure that the
screwheads are countersunk.
^
Secure the spacer strip to the back of
the appliance from behind using
4 plastic rivets as shown.
Attaching the lightshield
^
Attach the lightshield (if using).
A DML 400 installation kit, available as
an optional accessory, is required for
this.
Follow the installation instructions
supplied.
Weight of a lightshield matching
existing furniture
The lightshield must not exceed 1300 g
in weight.
This applies to lightshields with a depth
of up to 30 mm.
For larger or heavier lightshields, the
weight must be reduced by e.g.
machining it away at the back.
Installation
26

Miele DA 3360 Specifications

General

Type	Built-in
Cord length	1.5 m
Product color	Stainless steel
Built-in display	-
Exhaust connection diameter	150 mm
Built-in capability	Yes
Installation compartment dimensions (WxDxH)	595 x 275 x 414 mm
Intensive speed	No
Number of speeds	3
Type of extraction	Ducted/Recirculating
Maximum extraction power	320 m³/h
Maximum recirculating power	200 m³/h
Minimum distance from gas hob	650 mm
Noise level (recirculation mode)	67 dB
Minimum distance from electric hob	450 mm
Current	10 A
AC input voltage	230 V
Power consumption (typical)	210 W
Number of filters	1 pc(s)
Bulb type	Halogen
Bulb power	50 W
Number of bulbs	2 bulb(s)

Weight and Dimensions

Depth	275 mm
Width	595 mm
Height	414 mm
Weight	12000 g
