Miele KF 1901 Vi User Manual

Large freezer basket with
dividing panel
The large basket can be removed for
cleaning.
^
Close the door to the refrigerator
section.
^
Open the freezer drawer.
^
Lift the large freezer basket up and
out to remove it.
The dividing panel in the large freezer
basket can be removed for cleaning.
The dividing panel is held in place by
fittings in the freezer basket.

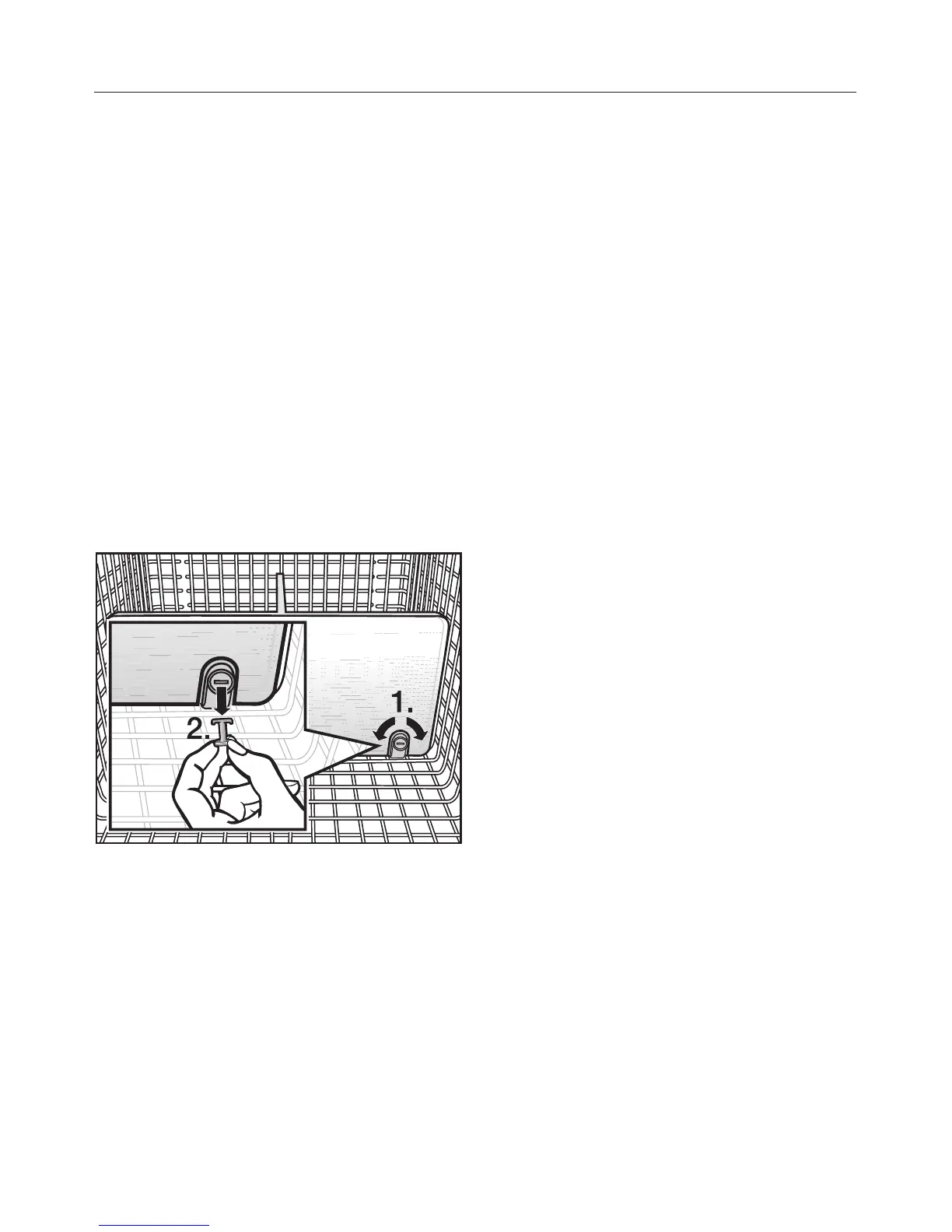

To loosen the fittings,
^
Use a screwdriver or similar to turn
the slots in the pegs to a horizontal
position a.
^
Remove the pegs from the fittings b.
^
Pull the dividing panel upwards to
remove it.
To replace the dividing panel
^
Place the fittings in an upright
position, and locate the dividing
panel in the fittings so that you hear it
click into place.
^
Replace the pegs in the fixings, and
use a screwdriver or similar to turn
the slots in the pegs into a vertical
position.
To replace the freezer basket
^
Position the basket by locating the
pegs into their holes from above.
Arranging the interior fittings
40

Miele KF 1901 Vi Specifications

General

Door hinge	Right
Product color	Stainless steel
Reversible doors	Yes
Door opening angle	115 °
Appliance placement	Built-in
Door panel included	No
Power requirements	230 V, 50 Hz
Fridge number of compressors	2
Noise level	40 dB
Total net capacity	483 L
Total gross capacity	- L
Fridge net capacity	313 L
Fridge number of shelves/baskets	3
Fresh zone compartment net capacity	71 L
Star rating	4*
Freezing capacity	20 kg/24h
Freezer net capacity	99 L
Storage time during power failure	17 h
Connected load	632 W
Annual energy consumption	365 kWh

Weight and Dimensions

Depth	610 mm
Width	902 mm
Height	2127 mm
Weight	201000 g
Installation compartment dimensions (WxDxH)	915 x 629 x 2134 mm
