Miele KF 1901 Vi User Manual

^
If a wooden beam has been fitted
above the appliance to prevent
tipping, the appliance height needs
to be adjusted so that the appliance
fits snuggly under the woodden
beam.

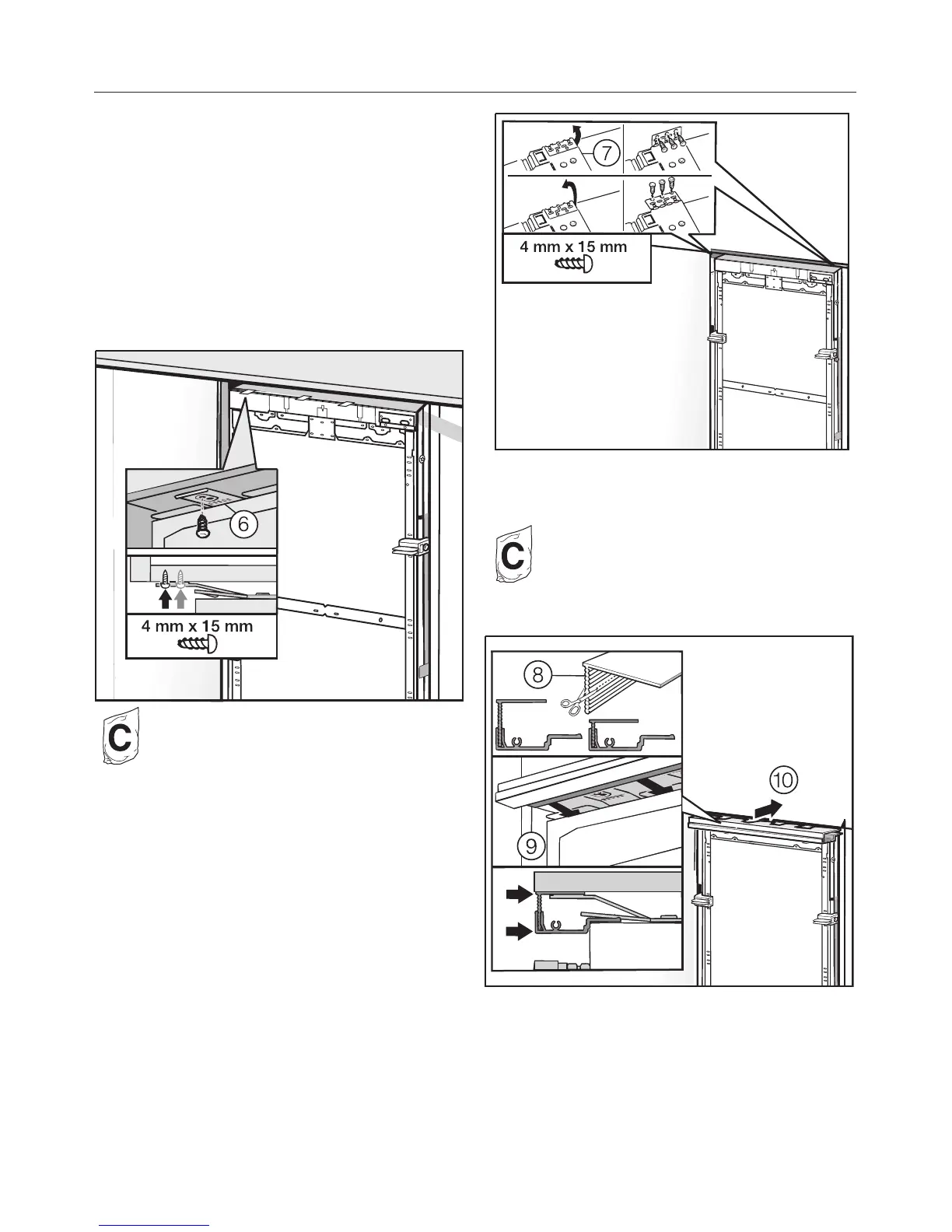

Securing the appliance in the
niche
^
Screw the lugs for the fixing plate f
into the furniture/units above the
appliance.
If it is not possible to secure the
appliance above, it can be attached to
the housing at the sides only:
^ Pull out the lugs for the side fixing
plates g.
^ Screw on the lugs for the side plates.
^
If necessary, cut the trim h to the
necessary width.
^
Join the two bits of trim together i.
^
Click them into position j.
Installation
85

Miele KF 1901 Vi Specifications

General

Door hinge	Right
Product color	Stainless steel
Reversible doors	Yes
Door opening angle	115 °
Appliance placement	Built-in
Door panel included	No
Power requirements	230 V, 50 Hz
Fridge number of compressors	2
Noise level	40 dB
Total net capacity	483 L
Total gross capacity	- L
Fridge net capacity	313 L
Fridge number of shelves/baskets	3
Fresh zone compartment net capacity	71 L
Star rating	4*
Freezing capacity	20 kg/24h
Freezer net capacity	99 L
Storage time during power failure	17 h
Connected load	632 W
Annual energy consumption	365 kWh

Weight and Dimensions

Depth	610 mm
Width	902 mm
Height	2127 mm
Weight	201000 g
Installation compartment dimensions (WxDxH)	915 x 629 x 2134 mm
