Installation and connection
70

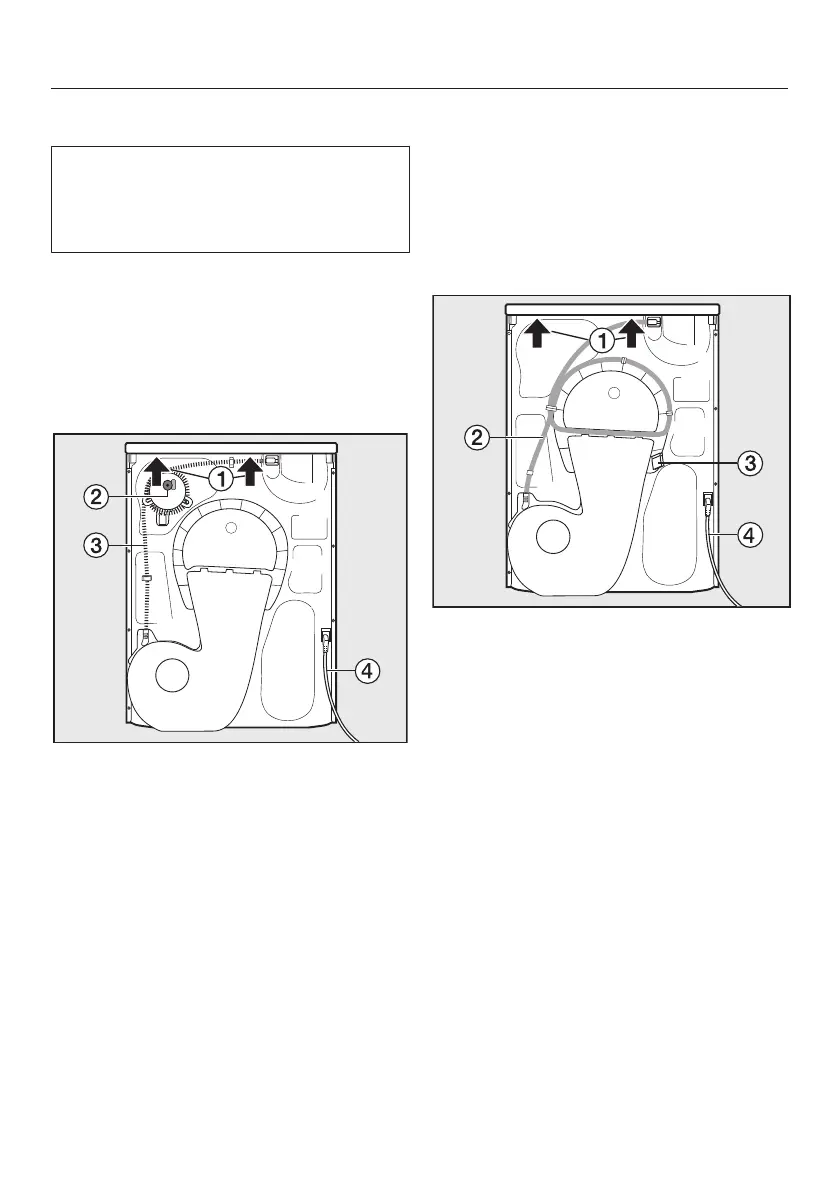

Rear view
Depending on the model of your
tumble dryer, the guide path for the
condensed water drain hose on the
rear of the dryer will be different.
Version 1
The drain hose c for condensed water
is wound up at the top left. The
accessories b for external drainage of
condensed water are attached to the
tumble dryer.
a
Protruding lid for holding when
moving the tumble dryer (see
arrows)
b
Accessories for external drainage of
condensed water: hose clip, adapter
and hose holder
c
Drain hose for condensed water
d
Mains connection cable
Version 2
The drain hose b for condensed water
is wound up in the middle of the rear
panel. The accessories for external
drainage of condensed water are
supplied separately with the tumble
dryer.
a
Protruding lid for holding when
moving the tumble dryer (see
arrows)
b
Drain hose for condensed water
c
Hook for winding the mains cable
around during transport
d
Mains connection cable
