Structure and Assembly/Disassembly 9-17

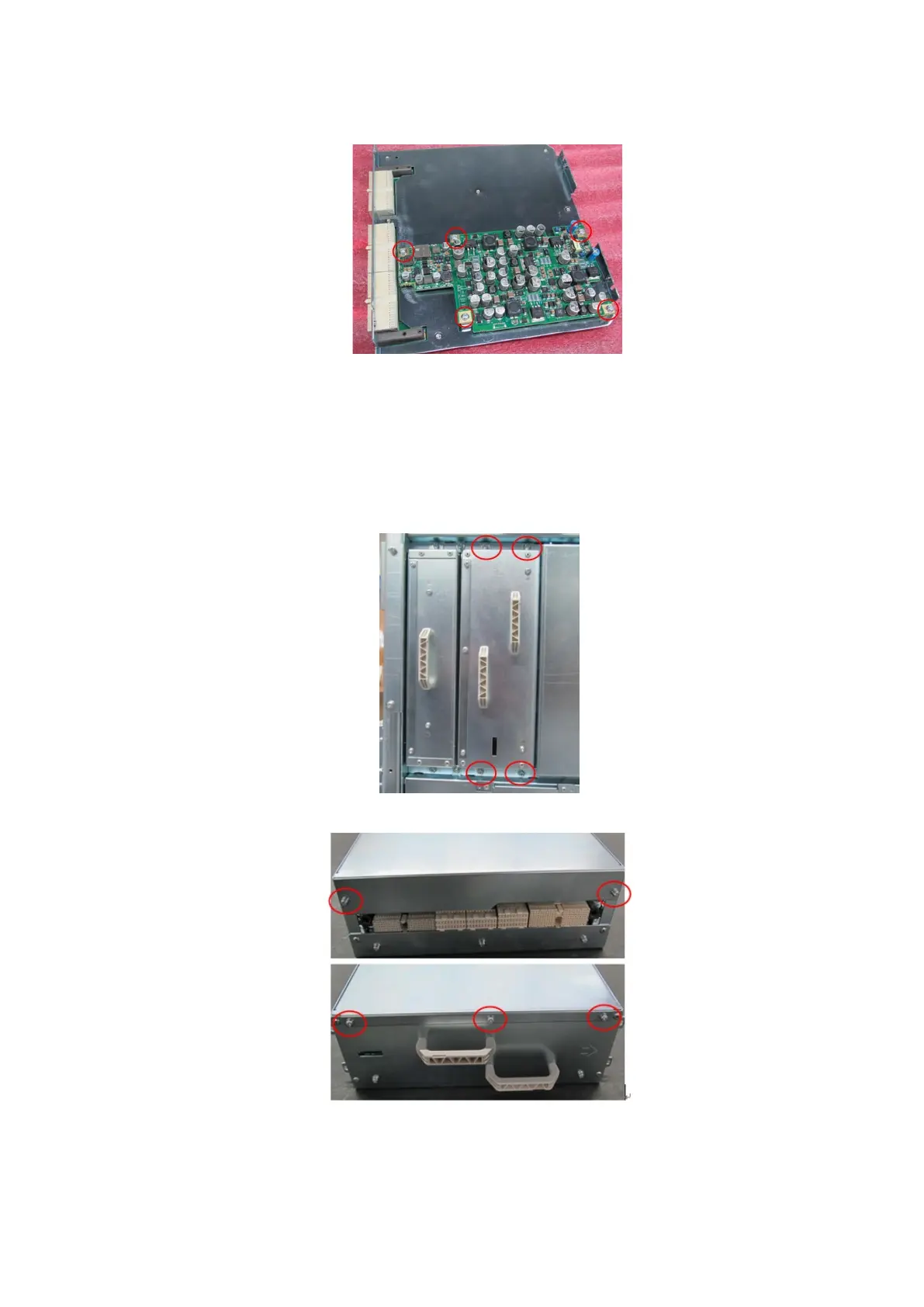

6. Unscrew five M3 X 8 screws on metal bracket to remove PHV board.
9.3.10 PC Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Follow step 1 in Chapter 9.3.2 to remove the left side panel.
2. Unscrew four M4 X 8 screws on the device (one is on the top; the other is at the bottom). Then,
remove PC box assembly.
3. Unscrew five M3 X 8 screws on both sides to remove the metal cover.
4. Unscrew five M3 X 8 screws on both sides to remove digital bracket assembly.
