System Preparation 3-7
3.7 Graph /Text printer
Connecting a local printer

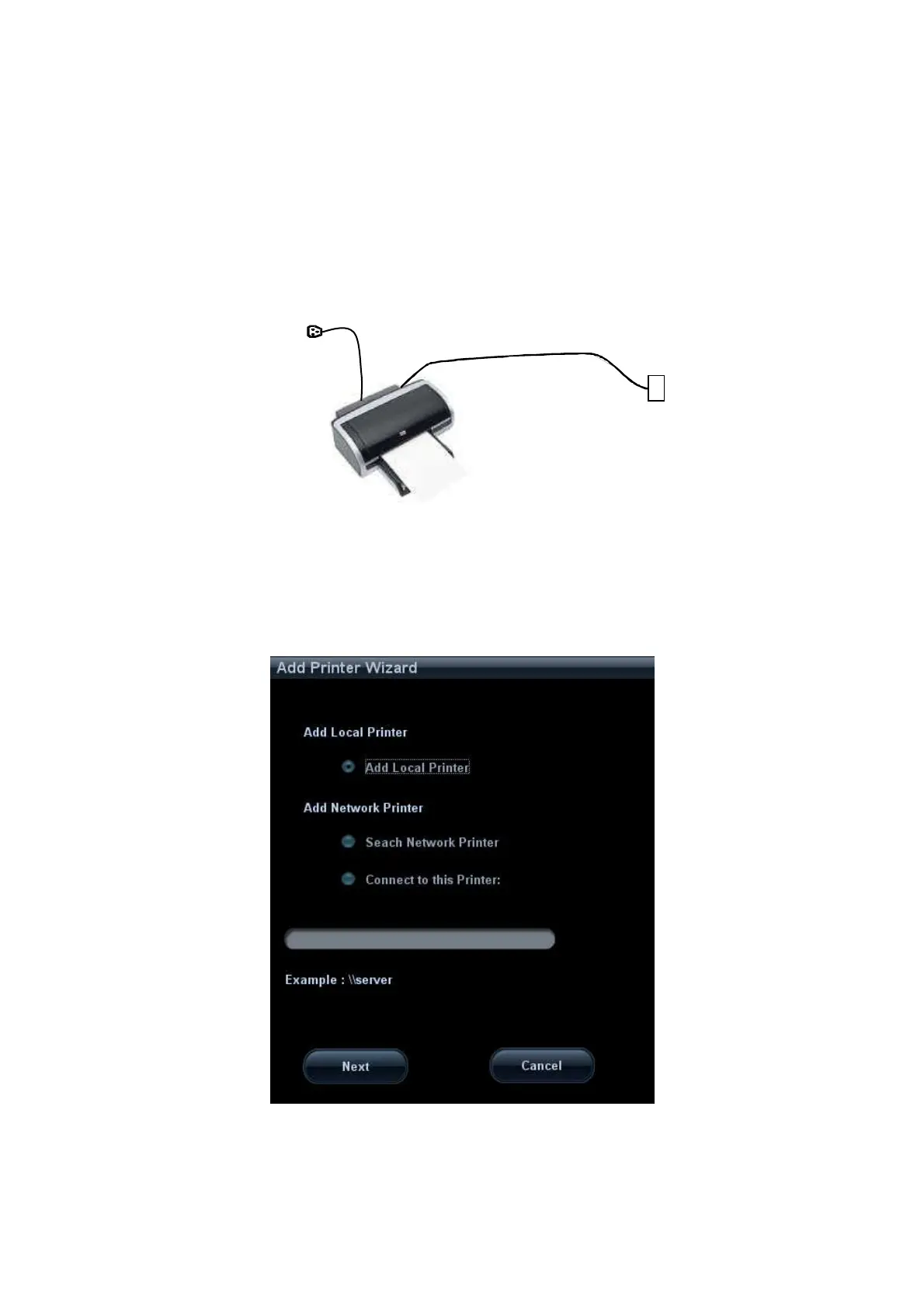

As shown in the figure below, a graph /text printer has a power cord and data cable. The
power cord shall be directly connected to a protective grounding wall receptacle as
required.
1. Connect the two USB ports of the printer and the system with the USB cable of the
printer.
2. Power on the system and the printer.
3. Install the printer driver: "[Setup]→ [Peripheral Preset]→[Printer]→[Printer Driver]"
and click [Add Printer], as shown in the figure:
4. Select "Add Local Printer" and click [Next] to enter the screen of browsing driver;
select the desired driver and click [OK] to install the driver.
Printers listed in "2.5 System Configuration" have drivers installed already.
Data
cable
USB connector
Power cord
To Next Page
