Mircom FleXNet FX-4000 User Manual

112
26.0 QMP-5101NV Vertical Paging Control Module
The QMP-5101NV Paging Module is a vertical paging unit which fits into the new BBX-FXMNS
Enclosure. It mounts on the inside chassis (part of the BBX-FXMNS). Connections and
terminal wiring are the same as for the QMP-5101N. Refer to Figure 72 for wiring instructions
for both the QMP-5101NV and QMP-5101N paging control modules.

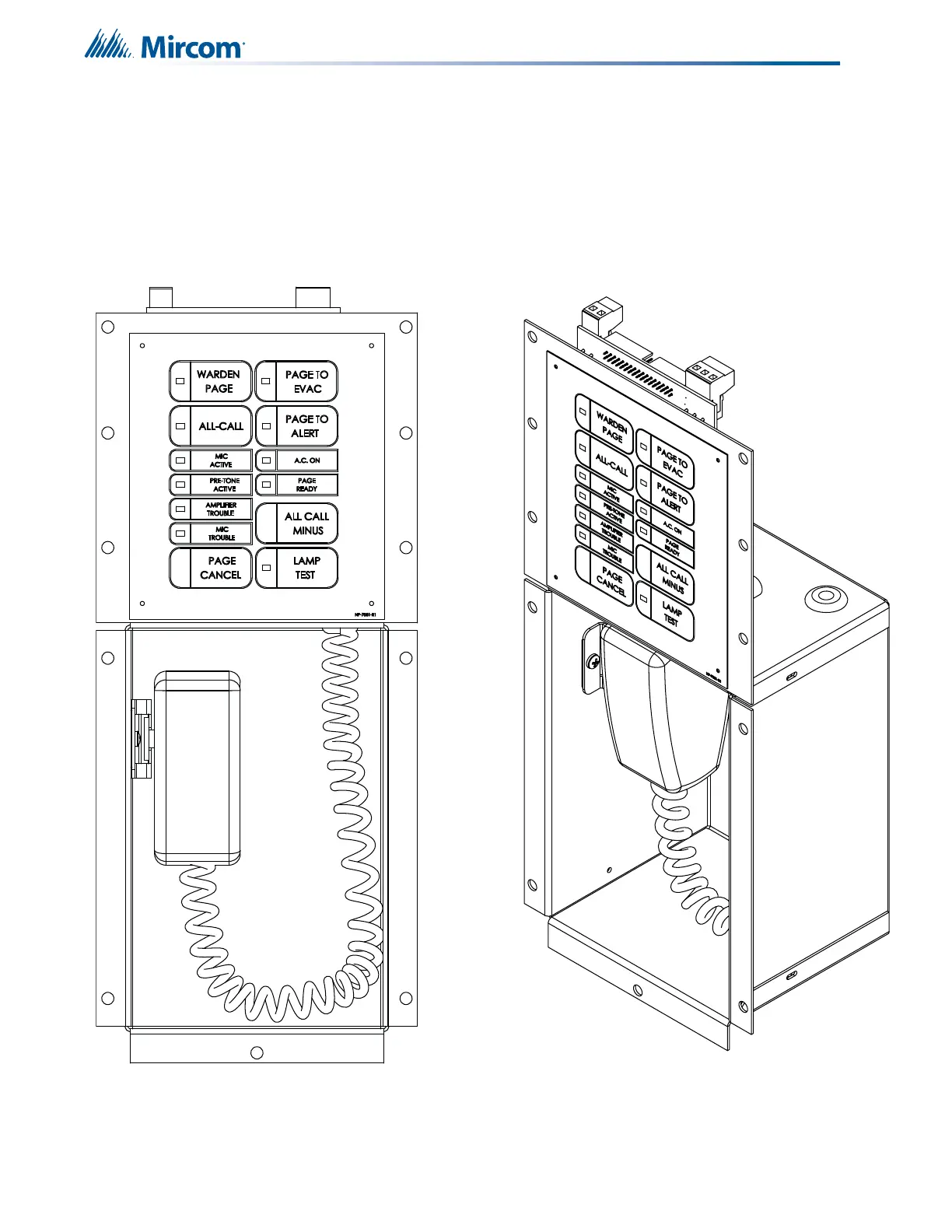

Figure 70 QMP-5101NV Vertical Paging Control Module
