Mircom FleXNet FX-4000 User Manual

23

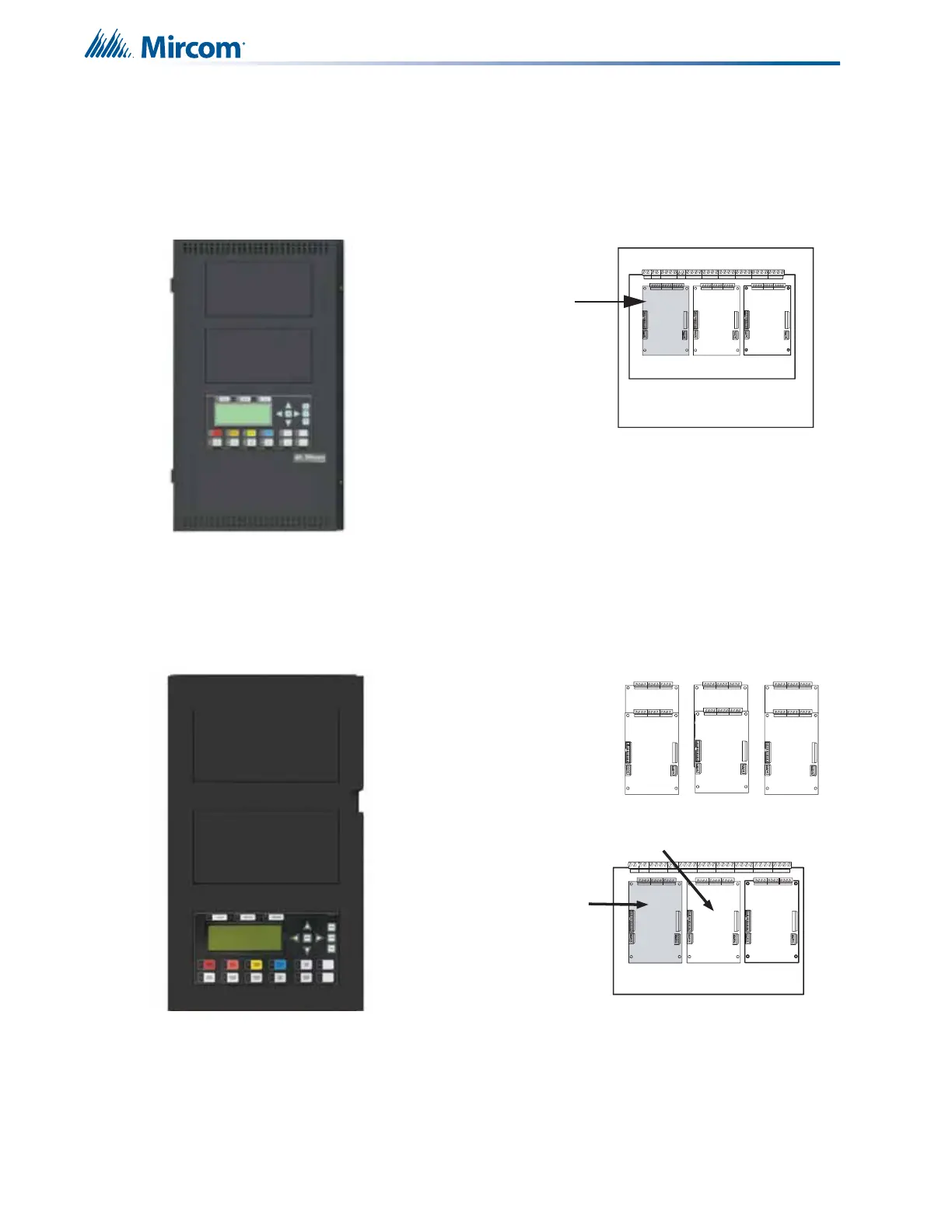

4.0 Display and Adder Modules Mounting Locations
4.1 FX-4003-12N Compact Main Chassis
Mounts in the BBX-1024DS Enclosure and supports three adder modules.
4.2 FX-4003-12NXT Mid-size Main Chassis
Mount into the BBX-1024XT enclosure, and supports two display modules and
Interior View Inside Backbox View
Interior View Inside Backbox View
FX-2000 Main Board
123
Slot 3 is reserved
for PR-300 or
UDACT-300A. If
not required, this
slot can be used to
mount any of the
adder modules.
The recommended
mounting position is 2
for the FNC-2000. The
FOM-2000-UM board, if
used, is mounted over the
FNC-2000 board.
1
23
456
789
FX-4003-12NXT Main Board
Slot is reserved for
PR-300 or UDACT-300A
.
If not required, this slot
can be used to mount
any of the adder
modules.
Slot is reserved for FNC-2000. If
not required, this slot can be
used to mount any of the adder
modules.
