Mircom FleXNet FX-4000 User Manual

80
10.0 Typical FleX-Net™ System Layouts with Audio
The following figures show two typical applications for the FleX-Net™ system with audio.

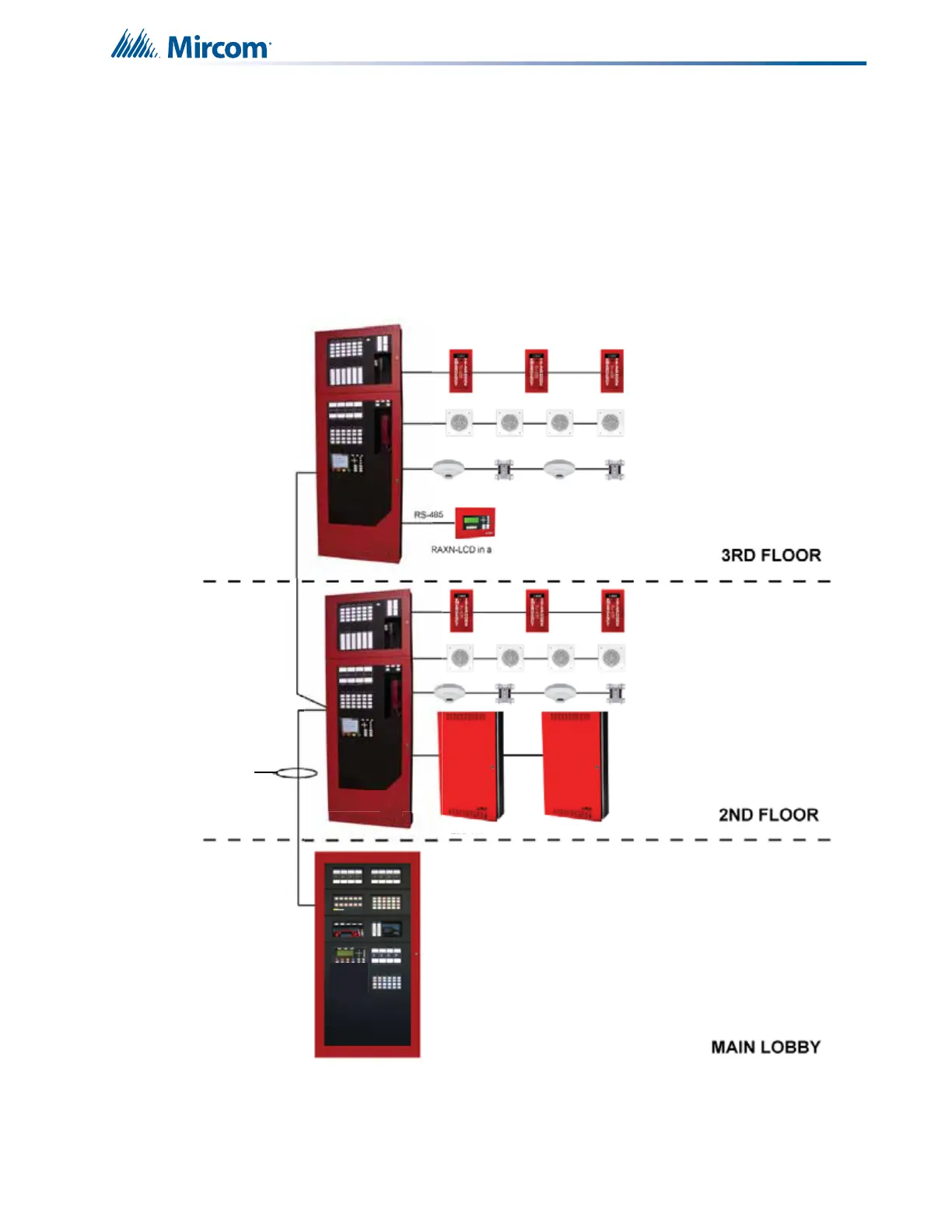

Figure 45 below shows a typical FleX-Net™ system layout with the main lobby control panel
as Node 1 and the combination Fire Alarm and Audio Network systems as Node 2 and 3. The
diagram also shows addressable fire alarm loops, paging and telephone connections and
audio cabinets.
Figure 45 Typical FleX-Net™ System with Audio Nodes
1 twisted pair for
ARCnet Network,
Audio and Telephone
Node 1
CACF
Central Alarm and Control Facility
-addressable re alarm control
-master telephone handset
- telephone zone selector modules
-master paging microphone
-paging zone selector modules
-bypass switch modules
-fan damper control modules
-LED annunciator modules
Five Telephone Audio Channels
Audio Channels for paging,
pre-recorded messages and tones
Addressable Loop
Five Telephone Audio Channels
Audio Channels for paging,
pre-recorded messages and tones
Addressable Loop
BB-1001DR
QBB-5001R
QBB-5001R
Q
