Mircom FX-2000 series User Manual

49
Field Wiring
8.0 Field Wiring
8.1 Main Fire Alarm Module Terminal Connections
Wire devices to terminals as shown in Figure 31 below. See Wiring Tables and Information on
page 63. See Appendix A: Specifications on page 79 and Appendix B: Compatible Devices on
page 85 for compatible devices..
8.1.1 Main Fire Alarm Module Terminal Connections.

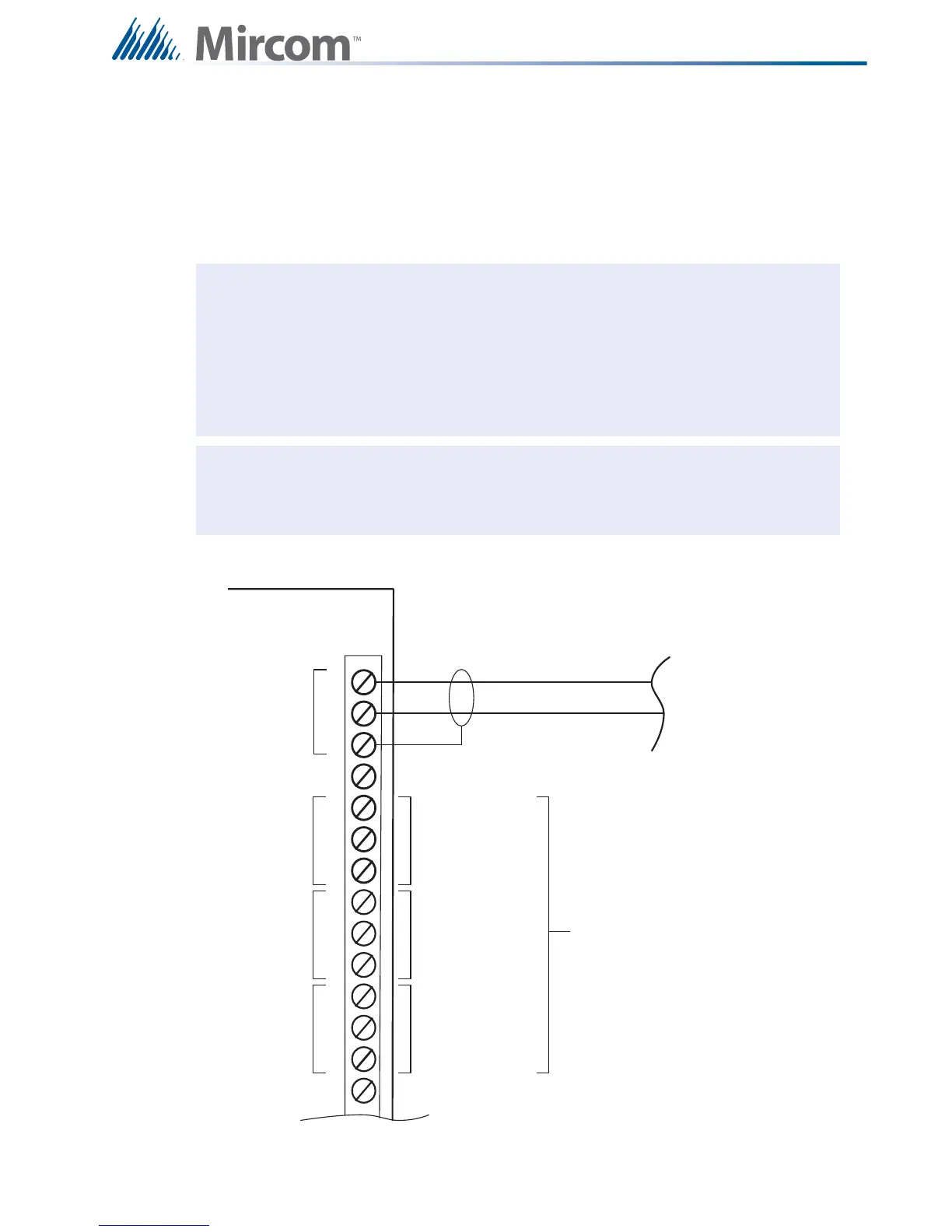

Figure 31 Main Fire Alarm Module Terminal Connections
Attention: Do not exceed power supply ratings:
Main Chassis FX-2003-6DS and FX-2003-6DS-16LED total current for NAC
circuits is 5A max.
Main Chassis FX-2003-12DS, FX-2003-12XTDS, FX-2017-12ADS or FX-
2017S-12ADS total current for NAC circuits is 10A max.
Main Chassis FX-2009-12DS and FX-2009S-12DS: total current for NAC
circuits is 10A max.
Notes: The terminal blocks are "depluggable" for ease of wiring.
All power limited circuits must use type FPL, FPLR, or FPLP power limited cable.
!
i
COM
-
RS485
NO
NC
COM
TROUBLE
NO
NC
COM
SIG GND
or COM(-)
NO
NC
ALARM
USE TWISTED SHIELDED PAIR.
22 AWG UP TO 2000 FT.
20 AWG UP TO 4000 FT.
SUPV.
+
S
RS-485 INTERFACE TO
ANNUNCIATORS AND
OTHER DEVICES
(POWER LIMITED)
NOT USED
MUST BE
CONNECTED TO A
LISTED POWER
LIMITED SOURCE
OF SUPPLY
COMMON TROUBLE
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUXILIARY COMMON
SUPERVISORY
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUXILIARY COMMON
ALARM CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
S
