[ VIII Disassembly Procedure ]
- 27 -
HWE1804A GB
4. Drain pump

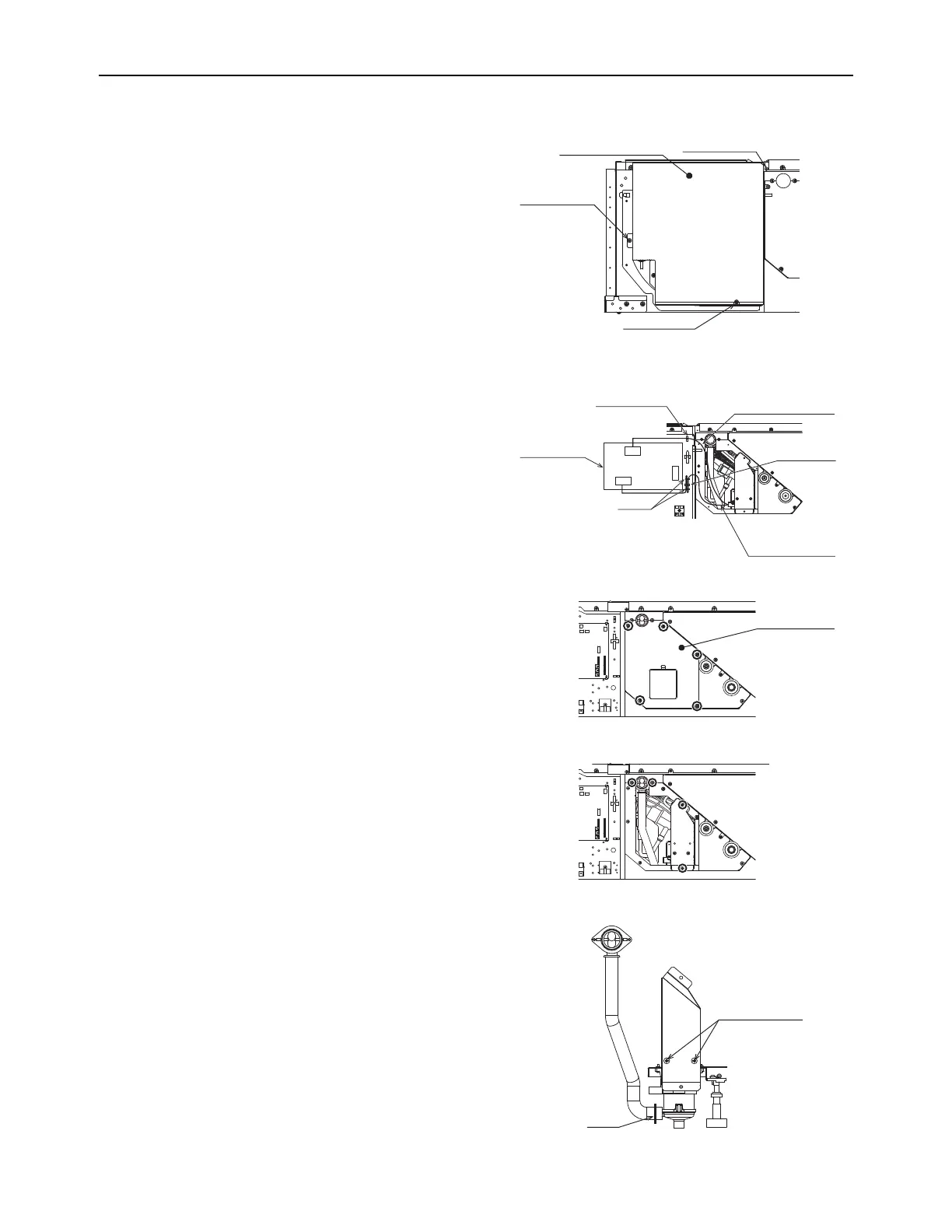

1. Remove the fixing screws shown in Fig. 1, and remove
the control box cover.
Fig.1
2. Remove the connector from CN4F and CNP on the con-
trol board, shown in Fig. 2.
Fig.2
3. Remove the fixing screws shown in Fig. 3, and remove
the maintenance cover.
Fig.3
4. Remove the fixing screws holding the drain hose and the
drain pump assy shown in Fig. 4.
Fig.4
5. Remove the fixing screws and cut the band shown in Fig.
5, by doing so, the drain pump and the float switch can be
disassembled.
Fig.5
Control box cover
Fixing screw
Fixing screw
Fixing screw
Float switch wire
(clear wire)
Wire saddle
Wire saddle
Indoor
P.C. board
CNP White
CN4F White
SW1
Band
Drain pump wire
(Black wire)
To Next Page
