[ VIII Disassembly Procedure ]

- 28 -

HWE1804A GB

5. Heat exchanger

Be careful on removing heavy parts.

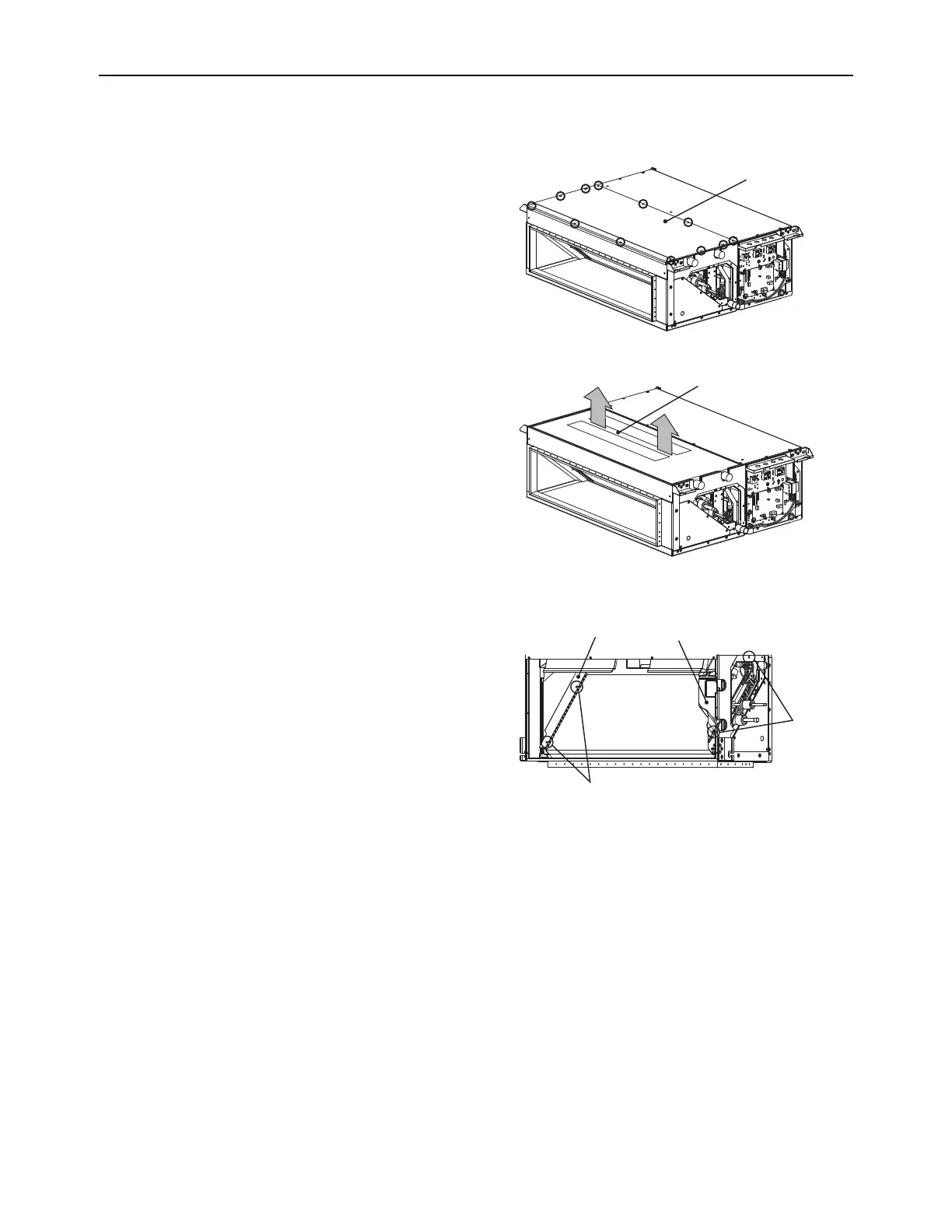

1. Removing the heat exchanger.

(1) Remove the heat exchanger cover (A) with procedure

[1]-3-1.

(2) Remove the bottom plate which is air outlet side. (fixing

screws: twelve) (Fig.1)

(3) Remove the drainpan. (Fig.2)

(4) Remove the cover (A), (B). (fixing screws: two x 2) (Fig.3)

Fig.1

Fig.2

Fig.3

Bottom plate

Drainpan

Fixing screws

Fixing

screws

Cover(A)

Cover(B)
