[ VIII Disassembly Procedure ]
- 36 -
HWE1804A GB
4. Drain pump

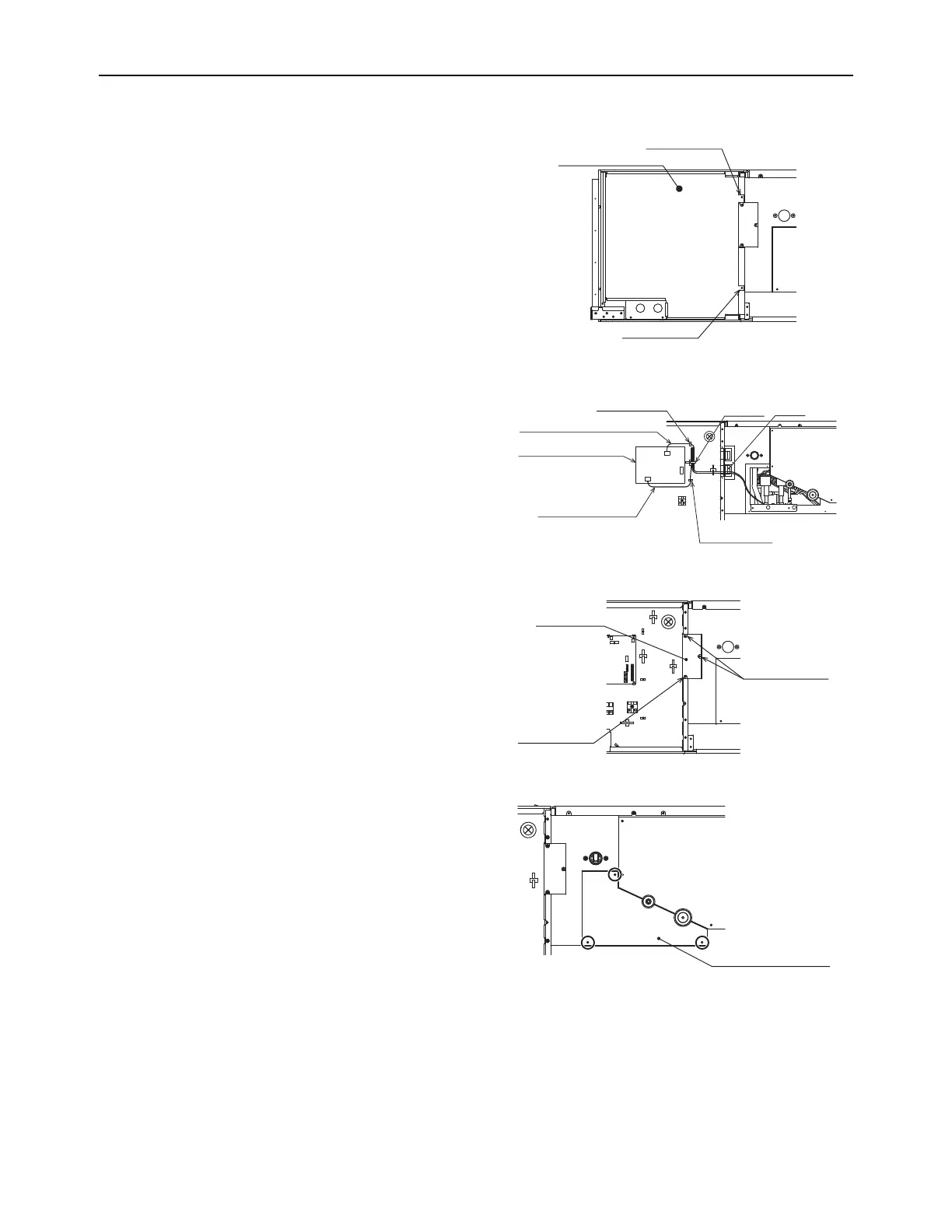

1. Remove the fixing screws shown in Fig. 1, and remove
the control box cover.
Fig.1
2. Remove the connector into CN4F and CNP on the control
board shown in Fig. 2.
Fig.2
3. Remove the fixing screws shown in Fig. 3, and remove
the wire cover.
Fig.3
4. Remove the fixing screws shown in Fig. 4, and remove
the maintenance cover.
Fig.4
Fixing screw
Control box cover
Fixing screw
Wire saddle
Float switch wire (clear tube)
Indoor P.C. board
Drain pump wire
(Black tube)
CNP White
CN4F White
SW1
Wire saddle
Clamp Hole
Wire cover
Fixing screws
Fixing screw
To Next Page
