[ VIII Disassembly Procedure ]
- 38 -
HWE1804A GB

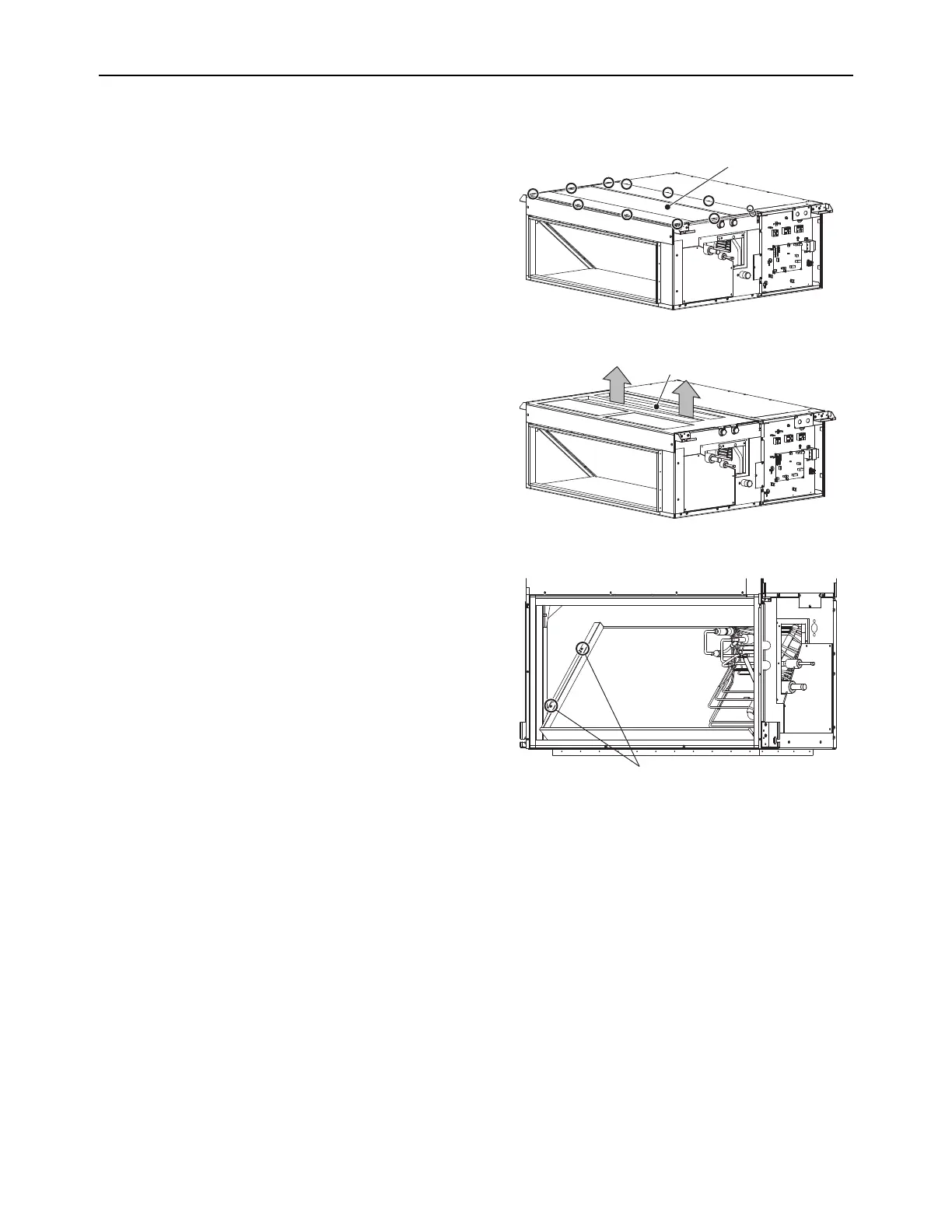

5. Heat exchanger
Be careful on removing heavy parts.
1. Removing the heat exchanger.
(1) Remove the heat exchanger cover (A) with procedure
[2]-3-1.
(2) Remove the bottom plate which is air outlet side. (fixing
screws: twelve) (Fig.1)
(3) Remove the drainpan. (Fig.2)
(4) Remove the two fixing screws. (Fig.3)
Fig.1
Fig.2
Fig.3
Bottom plate
Drainpan
Fixing screws
