Mitsubishi Heavy Industries FDTCA151R User Manual

-
105
-

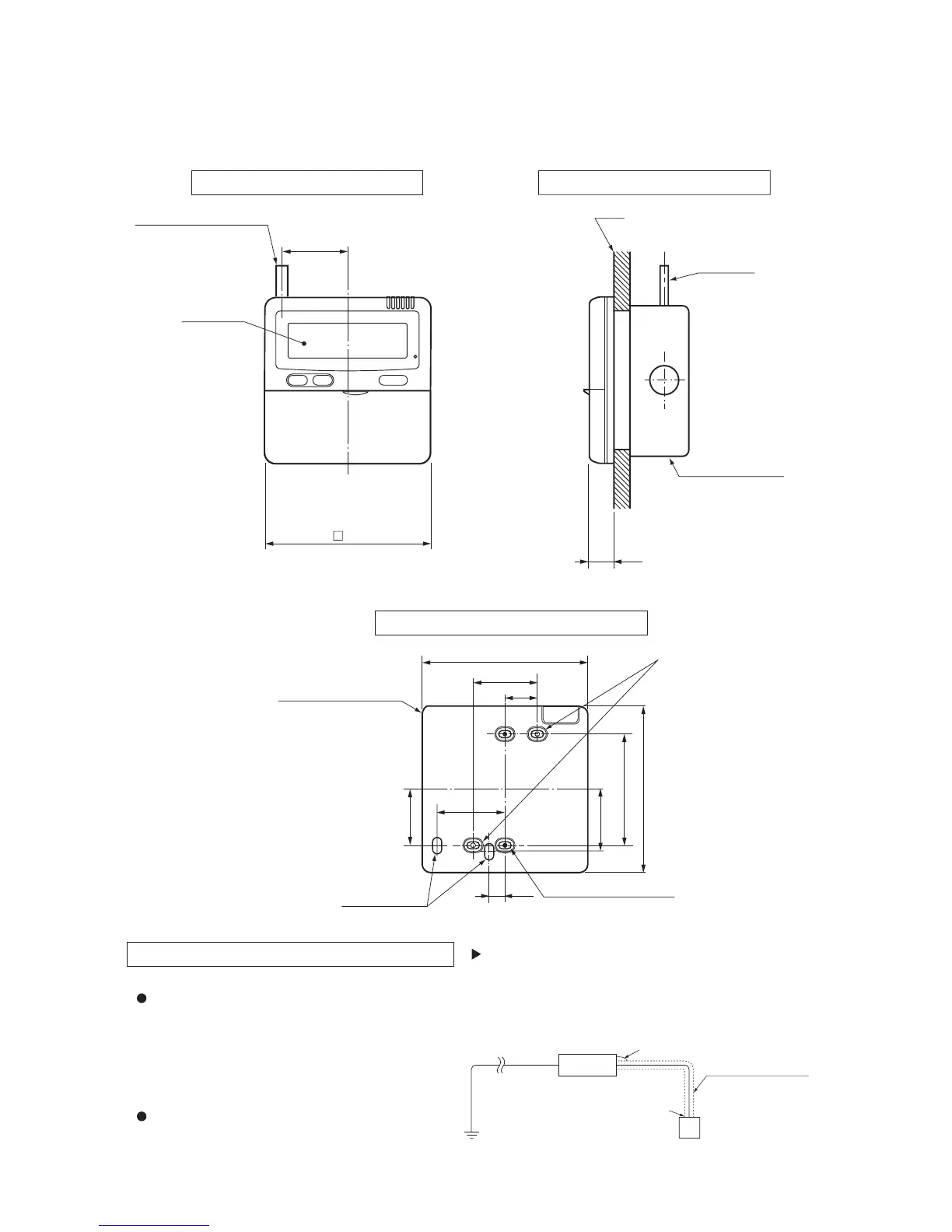

(2) Remote controller (Optional parts)
(a) Wired remote controller
Unit : mm
(This side is not grounded)
Earth wiring
Remote control switch
Remote control cord
(Shielded wire)
Precaution in Extending the Remote control cord
The cord should be a shielded wire.
For all types : 0.3mm
2
× 3 cores
Note: (1) Use cables up to 0.5mm
2
(maximum) for those laid inside the remote control unit casing and connect to a different siz
e
cable at a vicinity point outside the remote control unit, if necessary.
The shielded wire should be grounded at one side only.
Maximum total extension 600m.
Within 100-200m
Within 300m
Within 400m
Within 600m
0.5 mm
2
0.75 mm
2
1.25 mm
2
2.0 mm
2
···············
···············
···············
···············
× 3 cores
× 3 cores
× 3 cores
× 3 cores
Indoor unit
0.3mm
2
, 3cores (O.D.ø5.6)
LCD display
120
Wall
Wire
(Recessed)
Electrical box
(Locally Purchased)
19
23
46
11.5
44
Remote controller
outline
120
45
83.5
42
120
Remote controller mounting dimensions
For the passage
after wiring
Attachment hole
12×7 Long hole
9×4.5 Long hole(4 pcs.)
48
Installation with wiring exposed Installation with wiring recessed
Cut off with a knife or the
like thin walled parts intend-
ed for screw holes, and then
fix it with screws.
