(2) Outdoor unit

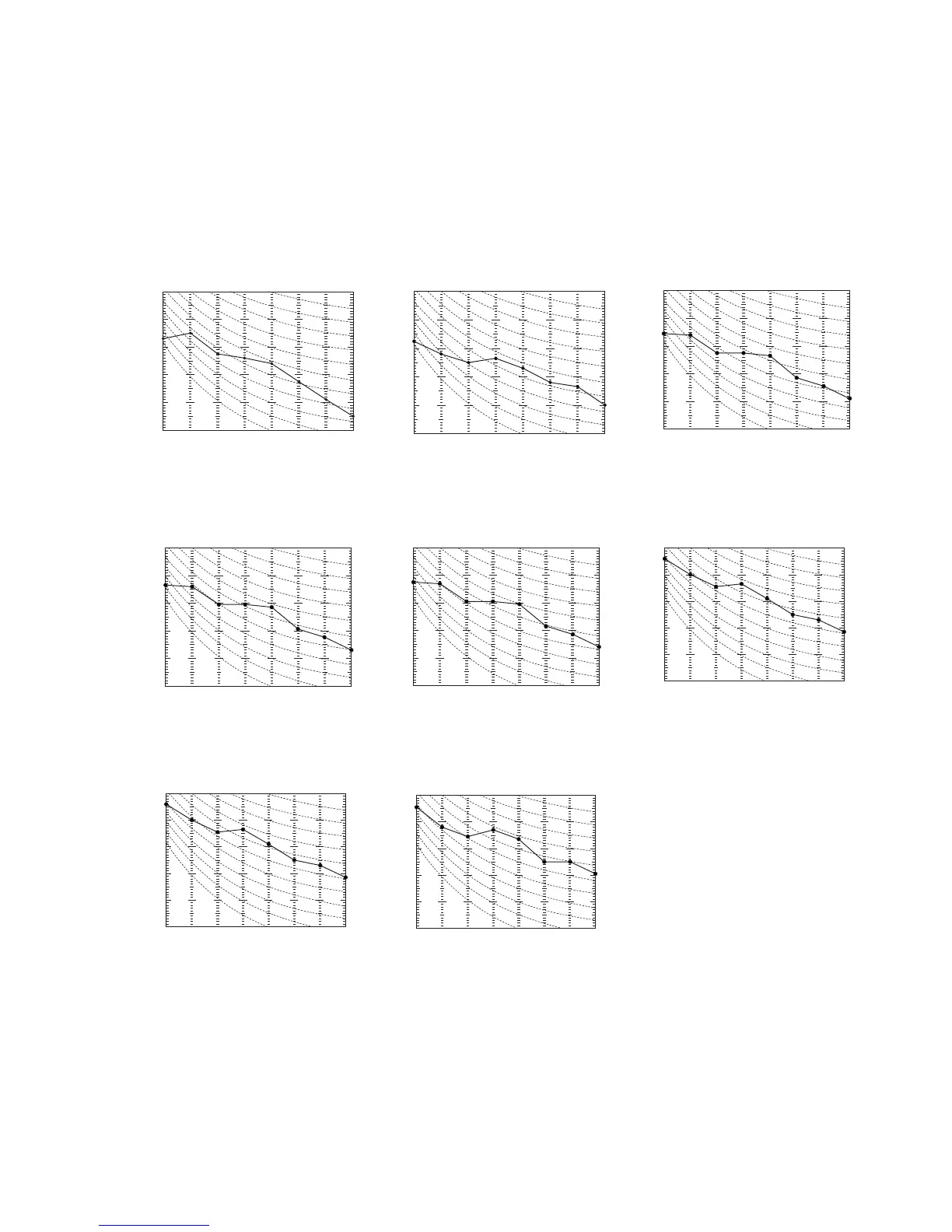

Measured based on JIS B 8616
Mike position: at highest noise level in position as mentined below
Distance from front side 1m
Height 1m
Models FDCVA151HENR, 201HENR,
251HENR
Noise level 48 dB (A)
Souud Pressure Level
(standard 0.0002µ bar)
Mid Octave Band Fre
q
uenc
y
(Hz)
N30
N40
N20
N50
N60
N70
63 125 250 500 1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
Model FDCVA302HENR
Noise level 48 dB (A)
N30
N40
N20
N50
N60
N70
63 125 250 500 1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
Souud Pressure Level
(standard 0.0002µ bar)
Mid Octave Band Frequency (Hz)
Model FDCV402HENAR
402HESAR
Noise level 50 dB (A)
N30
N40
N20
N50
N60
N70
63 125 250 500 1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
Souud Pressure Level
(standard 0.0002µ bar)
Mid Octave Band Frequency (Hz)
Model FDCV502HENAR
502HESAR
Noise level 52 dB (A)
Model FDCVA602HENAR
602HESAR
Noise level 53 dB (A)
N30
N40
N20
N50
N60
N70
63 125 250 500 1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
Souud Pressure Level
(standard 0.0002µ bar)
Mid Octave Band Fre
q
uenc
y
(Hz)
N30
N40
N20
N50
N60
N70
63 125 250 500 1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
Souud Pressure Level
(standard 0.0002µ bar)
Mid Octave Band Fre
q
uenc
y
(Hz)
Model FDCVA802HESAR
Noise level 57 dB (A)
N30
N40
N20
N50
N60
N70
63 125 250 500 1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
Souud Pressure Level
(standard 0.0002µ bar)
Mid Octave Band Frequency (Hz)
Model FDCVA1002HESAR
Cooling Noise level 57 dB (A) Heating Noise level 58 dB (A)
N30
N40
N20
N50
N60
N70
63 125 250 500 1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
Souud Pressure Level
(standard 0.0002µ bar)
Mid Octave Band Frequency (Hz)
N30
N40
N20
N50
N60
N70
63 125 250 500 1000 2000 4000 8000
20
30
40
50
60
70
20
30
40
50
60
70
Souud Pressure Level
(standard 0.0002µ bar)
Mid Octave Band Frequency (Hz)
