114
-
Pin type

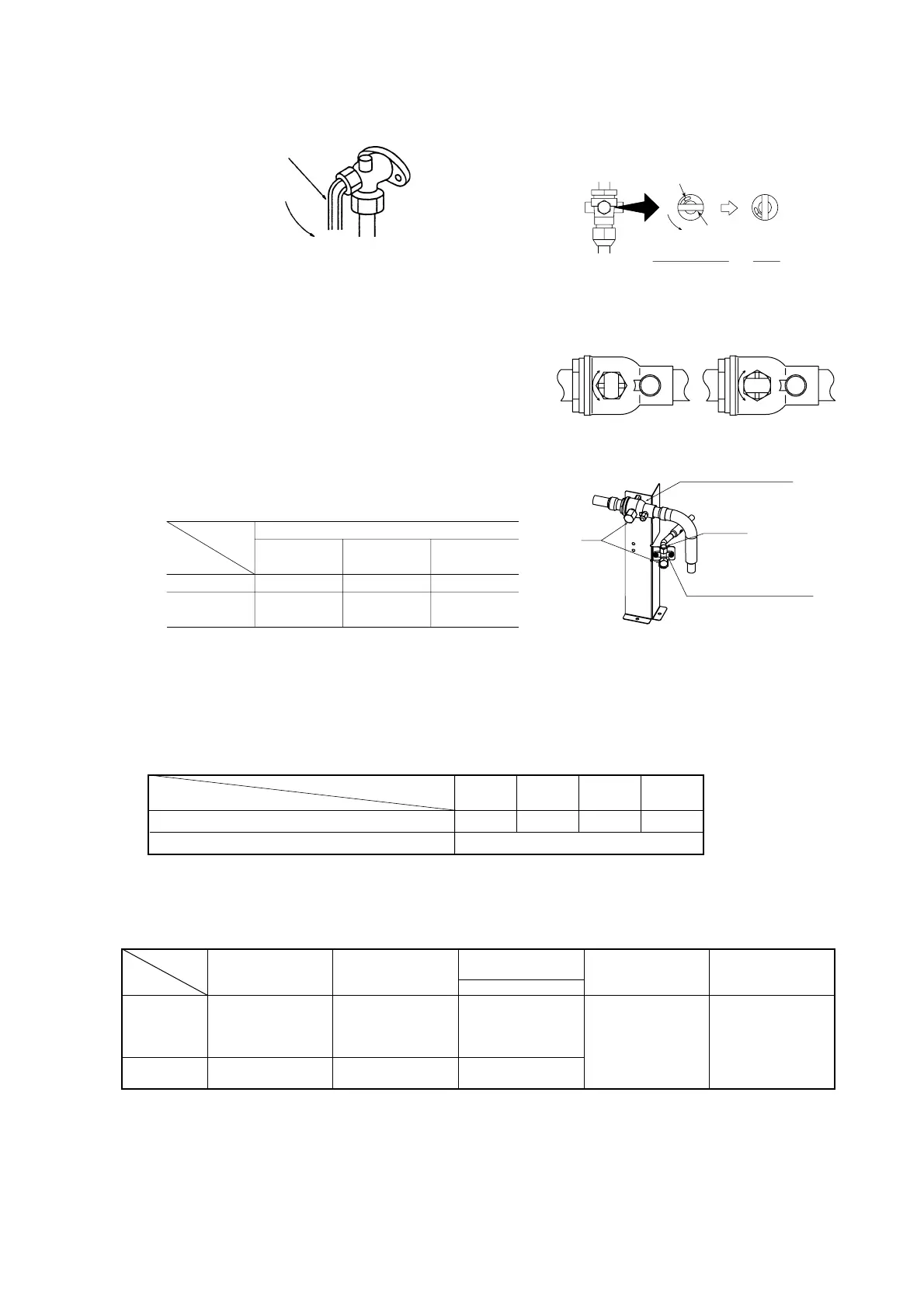

Remove the hexagon cap nut, set it as illustrated in the
drawing below.
• When a pin setting operation is completed, replace the
cap nut and tighten it as before.
Sloppre
Pin
Open
Factory setting
(close)
• Open the valve rod until it touches the stopper. You need not apply lorce
to push it further.
•
When an operation is completed, replace the cap nut and tighten it as before.
Open
Hexagonal Head Wrench
(M4)
S Models FDCA301~601
Hexagonal wrench type
Liquid/gas operation
S Models FDCA801, 1001
Method of opening/closing a valve
• Remove the cap, turn the gas pipe side until comes to the “Closed”
position as indicated in the drawing on the right.
• For the liquid side pipe, turn with a hexagonal wrench until the shaft
stops. If excessive force is applied, the valve main body can be dam-
aged. Always use a dedicated special tool.
• Tighten the cap securely.
For tightening torque, refer to the table below.
For gas pipes 7 or less
7.85
(MAX 15.7)
29.4
(MAX 39.2)
8.8
(MAX 14.7)
30 or less 13
Tightening torque N · m
For liquid pipes
Shaft
(valve main body)
Cap
(lid)
Cap nut
(check joint section)
Gas side service valve
Liquid side service valve
Cap
Cap nut
S
O
S
O
Closed position Opened position
(4) Refrigerant charge
S Models FDCA301~601
(a) The outdoor unit is charged with enough refrigerant for a piping length of 30 m when it is shipped from
the factory, and additional charging is not necessary in the case of a system with 30 m or piping or less.
(b) If the system’s piping exceeds 30 m, charge with an amount of additional refrigerant corresponding to the
additional length of piping in the system.
(Example) If the FDCA301 model is newly installed and the piping length is 45 m.
Additional Charge Amount: 0.60 kg = (45 – 30) m 0.040 kg/m
FDCA301
3.15
FDCA401
3.9
FDCA501
3.2
FDCA601
3.9
Factory Charge Amount (for 30 m of pipe) (kg)
Additional Charge Amount (for each 1 m of piping) (kg/m)
Item
Model
0.040
Standard refrigerant
charge volume (kg)
Item
Model
FDCA801
FDCA1001
Main pipe
Liquid piping
φ
9.52 : 0.06
Liquid piping
φ
12.7 : 0.12
Branch pipe 0.06
Main pipe 0.12
Branch pipe 0.06
570
(1)
Additional charge
volume per meter of
refrigerant piping (kg)
Local piping length for
which additional
charge is not required. (m)
Limit length of
refrigerant piping (m)
Charge volume when
shipped from factory (kg)
(2)
Outdoor unit
6.3
7.3
6.6
7.9
Notes (1) The standard refrigerant charge volume shows the charge volume with the length of refrigerant piping is 0 m.
(2) Concerning the additional charge per meter of piping and the refrigerant charge volume when the unit is shipped from the factory, as shown in the above
the unit is charged with a portion of the refrigerant needed for the local piping, so be sure to calculate the amount of additional charge that is needed and
charge the system locally.
S Models FDCA801, 1001
(a) Additional charge amount
