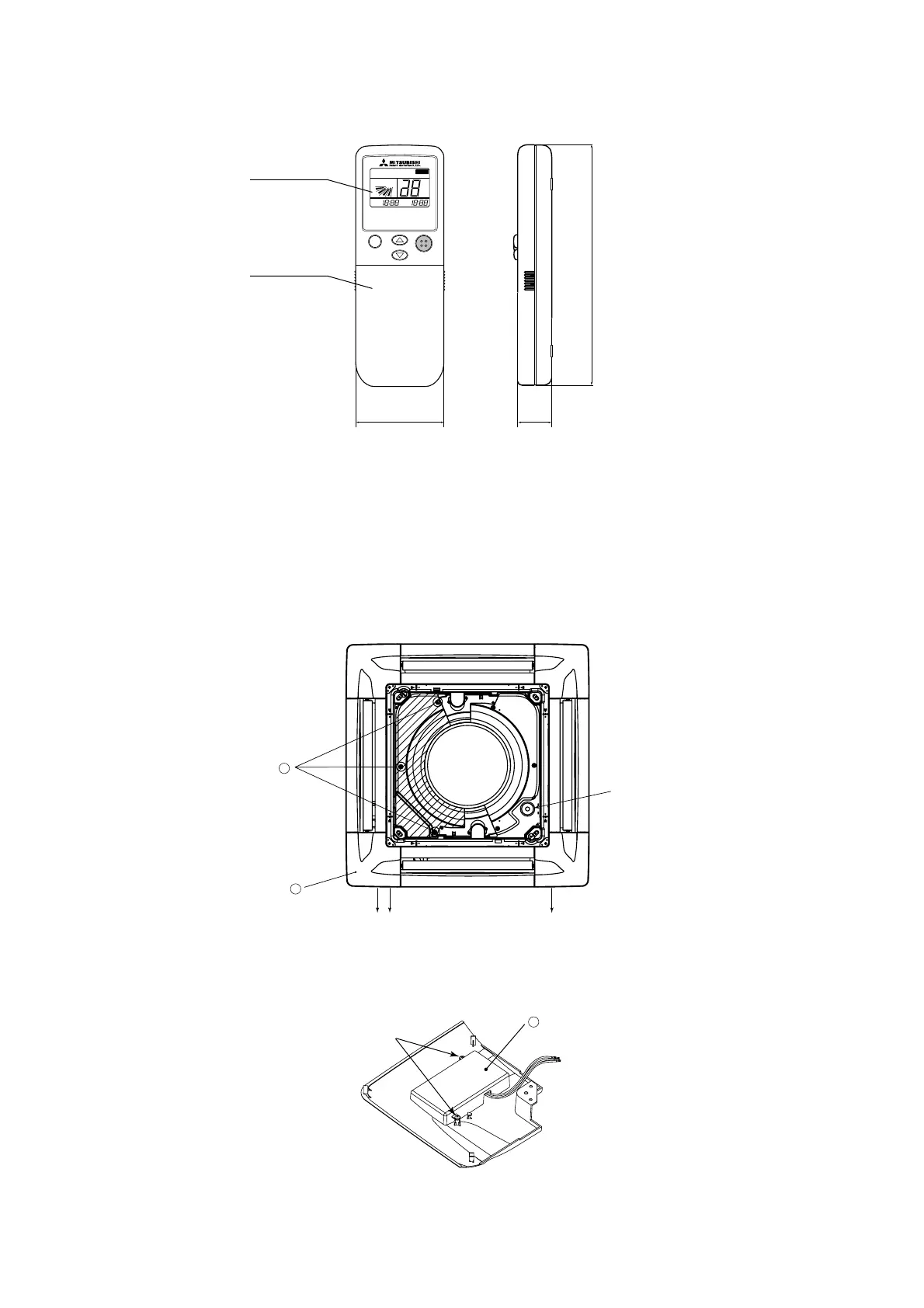

(4) Wireless remote controller
MODE TEMP ON/OFF
AUTO COOL DRY FAN HEAT
FILTER
°
C
AM
PM
ON
AM
PM
OFF
FAN HI LO
LCD display
Operation part
60
unit: mm
20.5
161.5
(Inside of lid)
(5) Attachment of wireless kit
(a) Installation of the receiver
1) Preparation before installation
1 Attach the cover panel supplied as an accessory onto the indoor unit according to the panel installation manual.
(Refer to 87 pages)
2 Remove the air inlet grille. (Refer to 88 pages)
3 Remove a corner panel located on the refrigerant pipe side. (Refer to 88 pages)
4 Remove three screws and detach the cover (indicated as a shadowed area) from the indoor unit control box.
2) Local setup
1 Remove the cover by unscrewing two screws from the back of the receiver.
Refrigerant pipes
3
Drain pipe
Drain plug
4
Wireless kit backside
Screws
Cover
1
To Next Page
