Romote controller signal receiving part
Backup switch
Check monitor
(Error code display E1~E57)
Operation display light (Green)
• Lights continuously: Under air conditioner operaton
• Keeps flashing: Under heating preparation (At the time of heating operation)
• 3 time flash: Under reception of a remote controller signal
Timer/Check display light (Yellow)
• Lights continuously: Under timer operation
•
0.5 seconds lighting, 0.5 seconds stays OFF : At the time of abnormalities
•
2 seconds lighting, 1 second stays OFF : Filter sign
TIMER
RUN
CHECK
TIMER/CHECK
Error code [ ]
Operation display light (Green)
The following two kinds are displayed.
• Lights continuously: Under air conditioner operation
• Keeps flashing: Under heating preparation
Flashes 3 times when a
signal is received from
the remote controller.
Timer/Check display (Yellow)
The following three kinds are displayed.
• Lights continuously:Under timer operation
•
Long lighting (2 seconds lighting, 1 second stays OFF) : Filter sign
(Clean the air filter when this display is output.)
•
Short lighting (0.5 seconds lighting, 0.5 seconds stays OFF) : At the time of the abnormalites air conditioner
TIMER/CHECK RUN
~

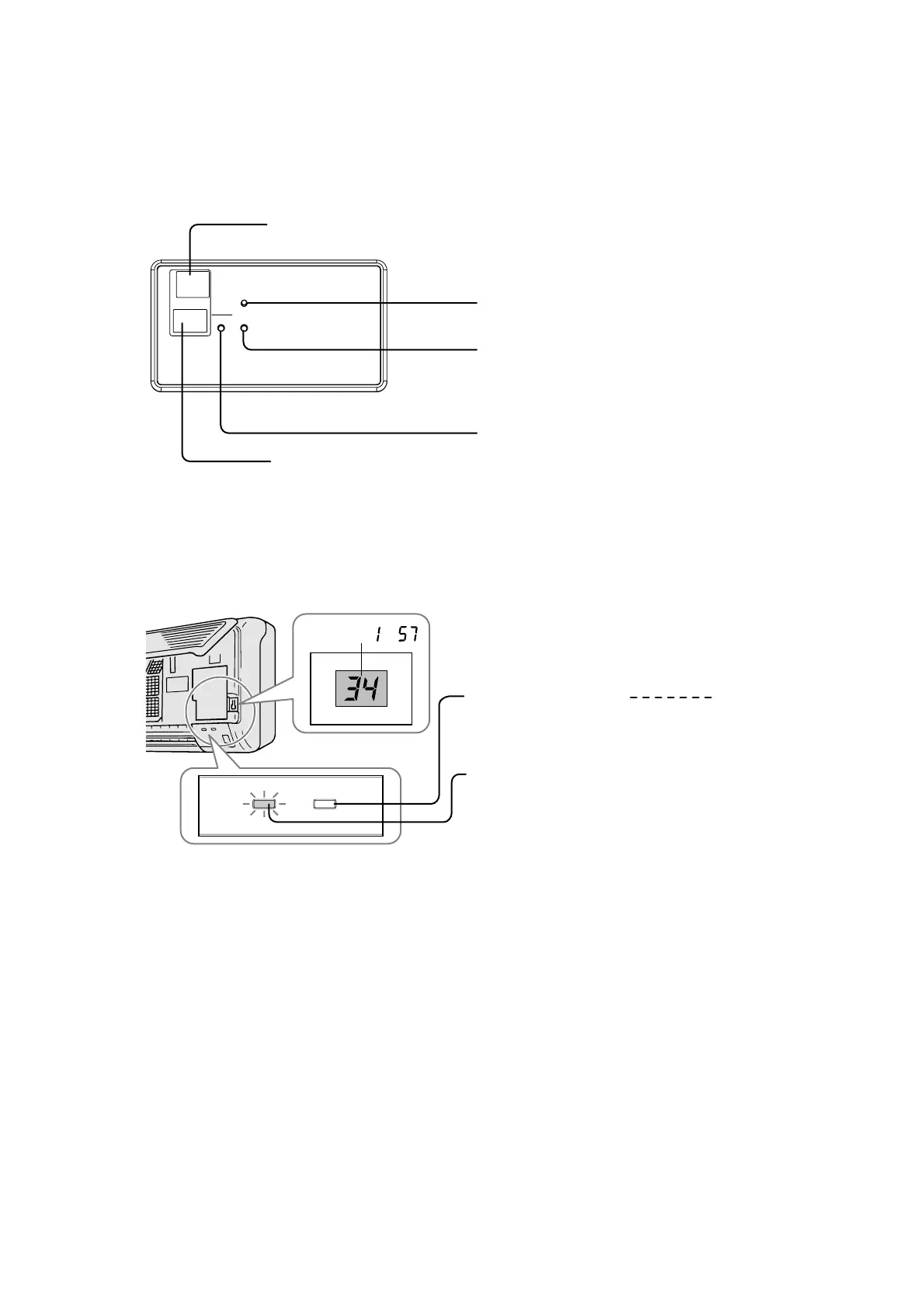

6.4 Check display on wireless specification models (FDEN · FDKN)
(1) Indication board
(a) FDEN Series
(b) FDKN Series
This figure shows the display on the 301 model. The shape of the display differs slightly on other models, but the functions
are the same.
