(3) Operation control function by the wired remote controller
(a) Remote controller operation mode switch switching sequence
(b) CPU reset
If the “GRILL” switch and “CHECK” switch on the remote controller are pressed at the same time, this function is activated.
Power supply reset and run are the same.
(c) Power failure compensation function
This function is activated by setting “Activate Power Failure Compensation” using the remote control function settings.
Normally, the remote control’s state is recorded in memory and after recovery following a power failure, operation is re-
started in accordance with the contents in memory. However, the auto swing stop position, and the timer mode are cancelled,
However the weekly timer setting is reset with the “Holiday setting” set for all day.

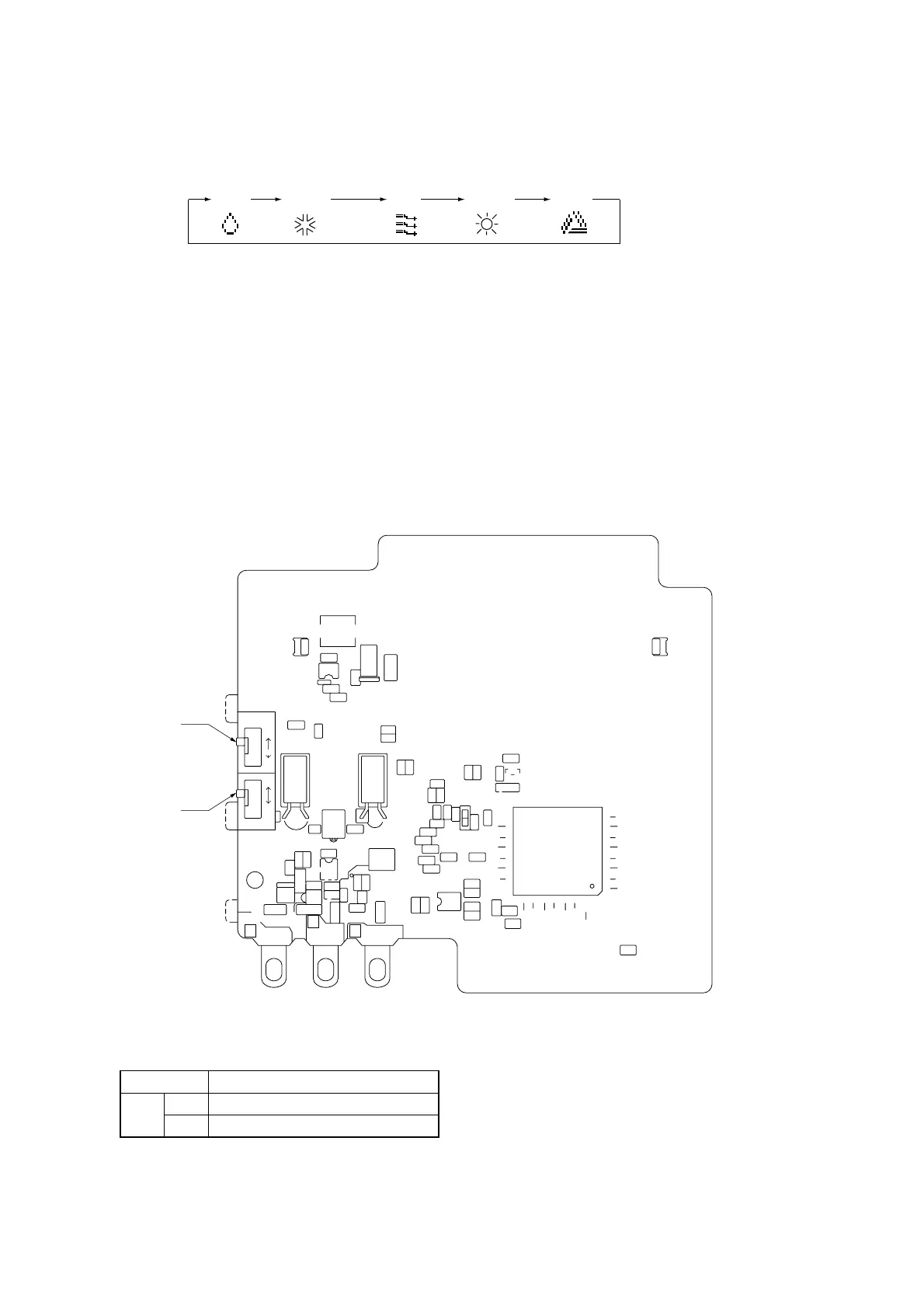

Remote controller board parts arrangement
Note (1) SW2 is not normally used, so do not change the selection.
Switch
SW1
Function
M
Master remote controller
S
Slave remote controller
SW1
SW2
SW2
SW1
A
B
White
Black
X Z
Y
M
S
Red
Control select switch (SW1)
